Product Description

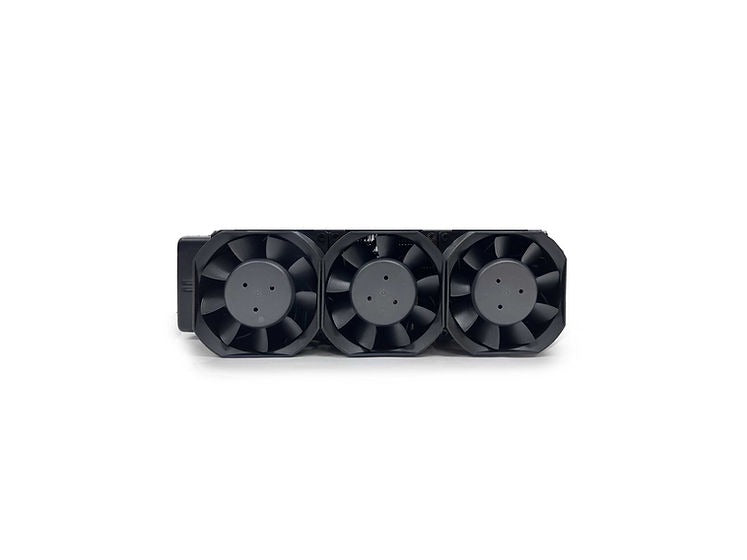

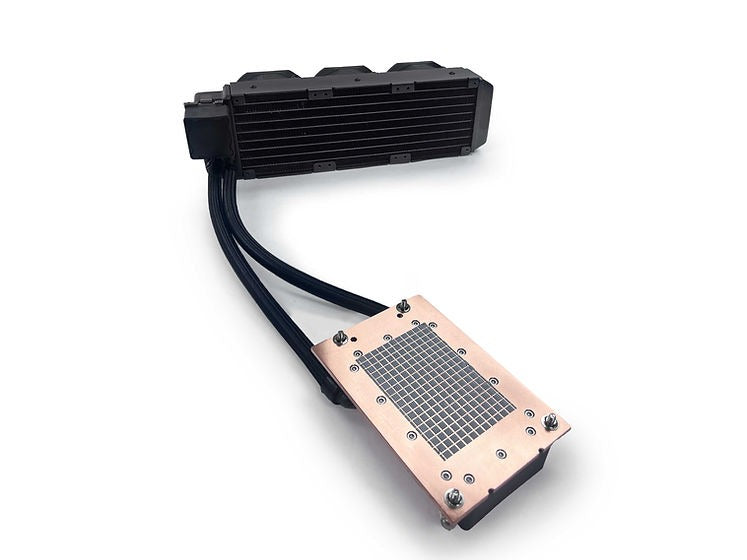

Dynatron L40 2U Liquid Cooler
840556077292
• Recommend for AMD® CPU as following:
- AMD® EPYC™ Processor, Socket SP6
- AMD® Ryzen™ PRO Processor, Socket sTR5
• Liquid Cooler for 2U Server and Up
PRODUCT SPECIFICATION:
CPU Socket: SP6/TR5
Screw Type: M3.5
Installation Torque: 12.5-15.1 in-lb
Solution: 2U Server
Fan Dimension: 80.0 x 80.0 x 38 mm
Cold Plate Dimension: 117 x 80 x 24.5 mm
Radiator Dimension: 305 x 79.9 x 83.5 mm
Speed:
At Duty Cycle 0~20%: 2400±10% RPM
At Duty Cycle 50%: 4800±10% RPM
At Duty Cycle 100%: 8000±5% RPM
Bearing: Double Ball
Rated Voltage: 12V
Fan Power Consumption:
At Duty Cycle 0~20%: 1.2 W
At Duty Cycle 50%: 5.52 W
At Duty Cycle 100%: 24.72 W
Air Flow:
At Duty Cycle 0~20%: 35.52 CFM
At Duty Cycle 50%: 67.24 CFM
At Duty Cycle 100%: 115.61 CFM
Noise Level:
At Duty Cycle 0~20%: 25.63 dBA
At Duty Cycle 50%: 47.85 dBA
At Duty Cycle 100%: 64.4 dBA
Air Pressure:
At Duty Cycle 0~ 20%: 1.39 mm-H2O
At Duty Cycle 50%: 5.97 mm-H2O
At Duty Cycle 100%: 34.06 mm-H2O
Lead Wire Pin Out:
Pin1- (-)
Pin2- (+)
Pin3- (Tachometer/ Signal Output)
Pin4- (PWM Control)
Pump Power Consumption: 7.2W
Maximum Power: 350 W
Weight: 5.34 pounds
