Dynatron TL 33 1U Server Liquid CPU Cooler - High Performance Cooling Solution for Data Centers, Rack Servers & Workstations

Product Description

Dynatron TL-33 1U Liquid Cooler

840556076872

• Recommend for CPU as following
    Intel® Socket FCLGA 1150, 1151, 1155, 1156;
    Intel® Processor, Socket LGA1700/1851
    AMD® Socket AM2/AM3/AM4/AM5/FM1/FM2;
• Liquid Cooler for 1U Server & Up

PRODUCT SPECIFICATIONS:

• CPU Support: Intel/AMD

• CPU Socket: Intel Socket LGA 115X/1200/1356/1366/1700/AMD AM4/AM5/FM2+/FM2/AM2/AM2+/AM3/AM3+/FM1

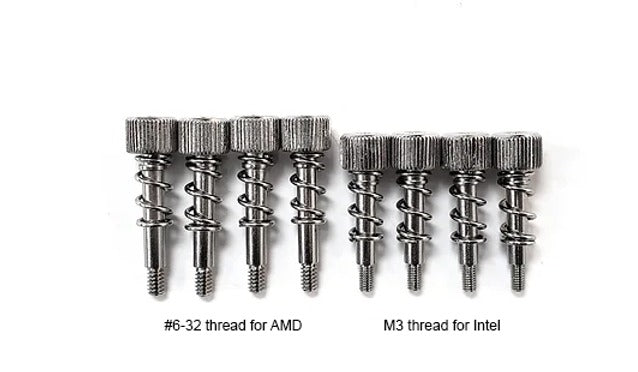

• Screw Type: #6-32/M3

• Installation Torque: 6-10 in-lb/5-7 in-lb

• Solution: 1U Server

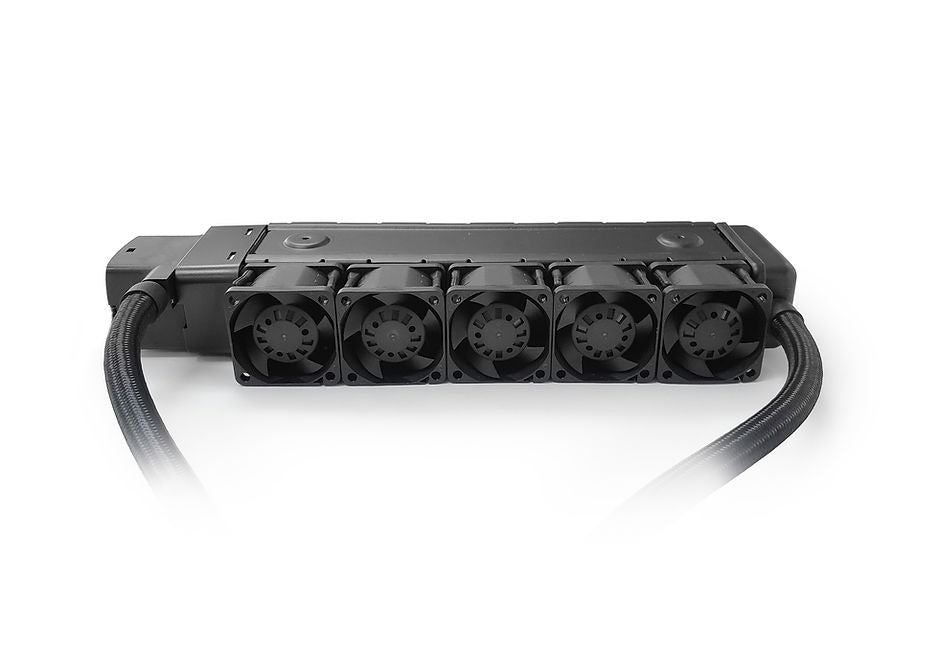

• Fan Dimension: 40 x 40 x 28 mm

• Speed:
  At Duty Cycle 0~20%: 3300±10% RPM
  At Duty Cycle 50%: 15000±10% RPM
  At Duty Cycle 100%: 26000±10% RPM

• Bearing: 2 Ball Bearing

• Rated Voltage: 12V

• Power:
  At Duty Cycle 0~20%: 0.72 W
  At Duty Cycle 50%: 6 W
  At Duty Cycle 100%: 22.8 W

• Noise Level:
  At Duty Cycle 20%: 19.35 dBA
  At Duty Cycle 50%: 52.23 dBA
  At Duty Cycle 100%: 64.17 dBA

• Air Flow:
  At Duty Cycle 0~20%: 4.74 CFM
  At Duty Cycle 50%: 21.53 CFM
  At Duty Cycle 100%: 37.32 CFM

• Air Pressure:
  At Duty Cycle 0~20%: 1.612 mm-H2O
  At Duty Cycle 50%: 33.30 mm-H2O
  At Duty Cycle 100%: 100.06 mm-H2O

• Lead Wire Pin Out:
  Pin1- (-)
  Pin2- (+)
  Pin3- (Techometer/Signal output)
  Pin4- (PWM)

• Water Pump:
  Stand-alone Water Pump with Powerful Flow Rate 3.2 Liter Per Minute

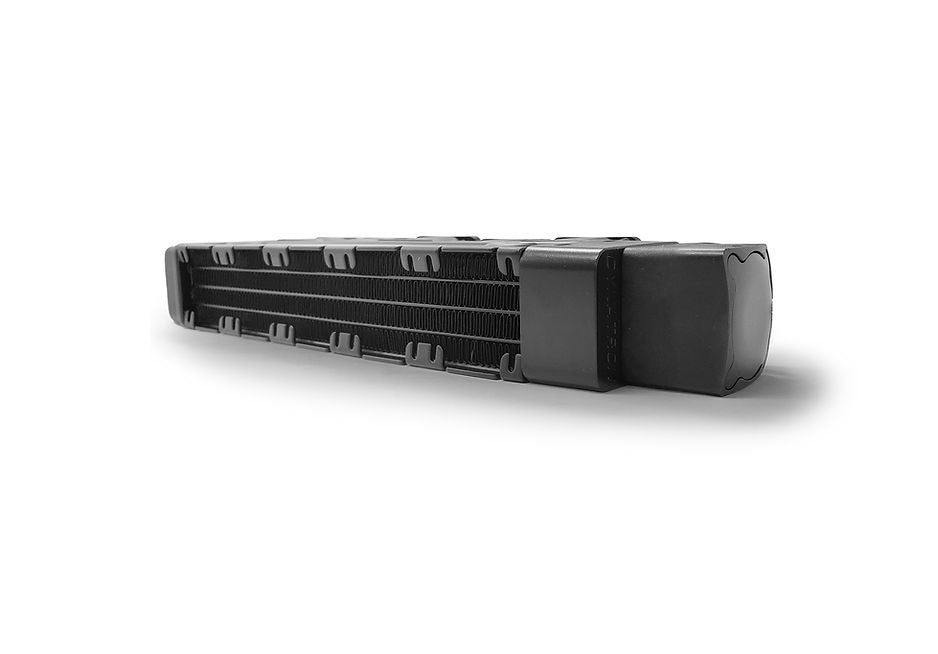

• Radiator: Space Saver Light Weight Radiator (Dimension: 64.5 x 64.5 x 23.3 mm)

• Cold Plate: Cold Plate Module with Copper Base (Dimension: 73 x 73 x 25.9 mm)

• Life – Continuous operating under normal temperature (40 °C or 104 °F): 70,000 Hours

[Dynatron TL-33 1U Liquid Cooler] Spec Sheet
