Dynatron L25 1U Server Liquid CPU Cooler - High Performance Cooling Solution for Data Centers & Server Racks

Product Description

Dynatron L25-1 1U Liquid Cooler

840556076865

• Recommend for CPU as following
    Intel® Socket FCLGA 1150, 1151, 1155, 1156;
    Intel® Processor, Socket LGA1700
    Intel® Socket FCLGA 2011, 2066;
    AMD® Socket AM2/AM3/AM4/AM5/FM1/FM2;
• Liquid Cooler for 1U Server & Up

PRODUCT SPECIFICATION:

• CPU Support: Intel & AMD

• CPU Socket: LGA 115X, LGA1700, LGA2011/2066 Square ILM/AM2/AM3/AM4/AM5/FM1/FM2

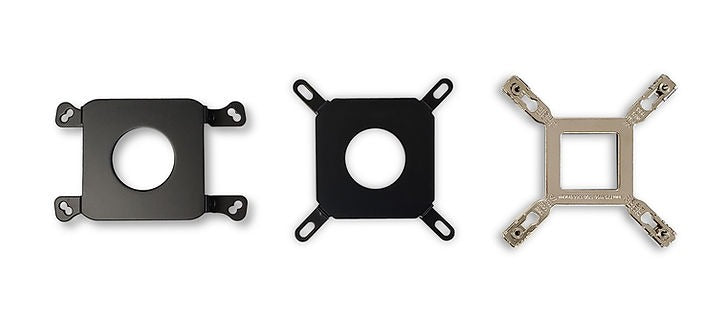

• Screw Type: #6-32/M3/M4

• Installation Torque: 6-10 in-lb/5-7 in-lb/10-16 in-lb

• Solution: 1U Server

• Fan Dimension: 40 x 40 x 28 mm

• Cold Plate Dimension: 64.5 x 64.5 x 23 mm

• Radiator Dimension: 277.9 x 74.4 x 40 mm

• Speed:
  At Duty Cycle 0~20%: 3300±10% RPM
  At Duty Cycle 50%: 5700±10% RPM
  At Duty Cycle 100%: 12000±10% RPM

• Bearing: 2 Ball Bearing

• Rated Voltage: 12V

• Power:
  At Duty Cycle 0~ 20%: 0.72 W
  At Duty Cycle 50%: 1.56 W
  At Duty Cycle 100%: 8.40 W

• Noise Level:
  At Duty Cycle 0~ 20%: 25.93 dBA
  At Duty Cycle 50%: 37.80 dBA
  At Duty Cycle 100%: 53.96 dBA

• Air Flow:
  At Duty Cycle 0~ 20%: 5.920 CFM
  At Duty Cycle 50%: 10.225 CFM
  At Duty Cycle 100%: 21.526 CFM

• Air Pressure:
  At Duty Cycle 0~ 20%: 1.733 mm-H2O
  At Duty Cycle 50%: 5.170 mm-H2O
  At Duty Cycle 100%: 22.912 mm-H2O

• Lead Wire Pin Out:
  Pin1- (-)
  Pin2- (+)
  Pin3- (Tachometer/Signal output)
  Pin4- (PWM)

• Life – Continuous operating under normal temperature (40 °C or 104 °F):
  70,000 Hours

[Dynatron L25-1 1U Liquid Cooler] Spec Sheet
