Dynatron L25 U 1U Server Liquid CPU Cooler - High Performance Cooling Solution for Data Centers, Server Rooms & Compact Workstations

Product Description

Dynatron L25-U 1U Liquid Cooler

840556076859

• Recommend for CPU as following
    Intel® Socket FCLGA 1150, 1151, 1155, 1156;
    Intel® Processor, Socket LGA1700
    Intel® Socket FCLGA 2011, 2066;
    AMD® Socket AM2/AM3/AM4/AM5/FM1/FM2;
• Liquid Cooler for 1U Server & Up

PRODUCT SPECIFICATION:
• Cold Plate Module with Copper Base
• Space Saver Light Weight Radiator
• 4cm Cooling Fans with 4-Pin PWM Connector
• Stand-alone Water Pump with Powerful Flow Rate 2.9 Liter Per Minute
• 30cm Black Pair EPDM Tube Assembled

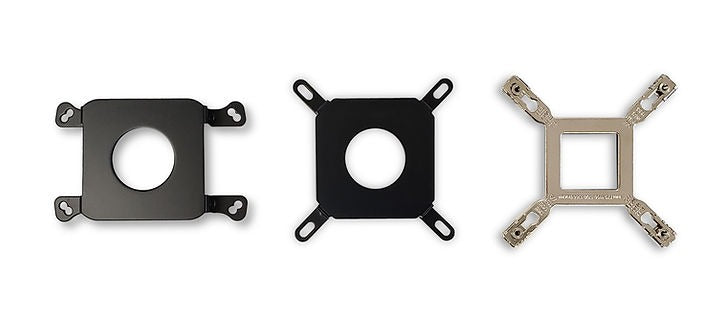

• Mounting Accessories are included
• Shin-Etsu 7762 or Equivalent Thermal Compound Pre-Printed on Base
• Support CPU Power up to 253 Watts(Intel) and up to 180 Watts(AMD) Heat Dissipation at
30℃ ambient temperature
• Each fan should have its own fan header due to the high current consumption at full speed

FAN SPECIFICATION:

• Model Number: DF124028BU-PWMG

• Dimension: 40 x 40 x 28 mm

• Bearing: Dual Ball

• Rated Voltage: 12V

• Rated Speed:
  At Duty Cycle 0~20%: 2000±10% RPM
  At Duty Cycle 50%: 10000±10% RPM
  At Duty Cycle 100%: 18000±10% RPM

• Rated Input Power:
  At Duty Cycle 0~20%: 2.40 W
  At Duty Cycle 50%: 7.20 W
  At Duty Cycle 100%: 15.60 W

• Rated Airflow:
  At Duty Cycle 0~20%: 2.944 CFM
  At Duty Cycle 50%: 14.72 CFM
  At Duty Cycle 100%: 26.50 CFM

• Rated Static Pressure:
  At Duty Cycle 0~20%: 0.61 mm-H2O
  At Duty Cycle 50%: 15.12 mm-H2O
  At Duty Cycle 100%: 49.0 mm-H2O

• Acoustical Noise:
  At Duty Cycle 0~20%: 16.00 dBA
  At Duty Cycle 50%: 44.24 dBA
  At Duty Cycle 100%: 57.00 dBA

• Lead Wire Pin Out:
  Pin#1- Black(-)
  Pin#2- Yellow(+)
  Pin#3- Green(Tachometer/ Signal Output)
  Pin#4- Blue (PWM)

• Life – Continuous operating under normal temperature (40 °C or 104 °F): 70,000 hours

[Dynatron L25-U 1U Liquid Cooler] Spec Sheet
