Dynatron R16 CPU Cooler for Intel Sandy Bridge EP/EX Processors - High Performance Cooling Solution for Servers & Workstations

Product Description

Dynatron R16 Intel Sandy Bridge EP/EX Processors for socket 2011 1U Vapor Chamber Active Solution 2 Ball Bearing CPU Cooler 4 pin PWM

840556097563

PRODUCT SPECIFICATIONS:
CPU Socket 2011 (Square Type, 80 x 80mm mounting pitch)
CPU Support Intel® Sandy Bridge EP/EX Processors
Solution 1U Solution
Overall Dimension: 90.0 x 90.0 x 28.0 mm
Weight: 390 g
Material: Vapor Chamber Base with Copper Stacked Fin
Fan Dimension: 80 x 80 x 15 mm
Bearing: 2 Ball Bearing
Rated Voltage: 12 V
Fan Tail: 9 inch

Speed:
At Duty Cycle 20%: 1000 RPM
At Duty Cycle 50%: 3500 RPM
At Duty Cycle 100%: 6000 RPM

Power:
At Duty Cycle 20%: 0.6 W
At Duty Cycle 50%: 3.84 W
At Duty Cycle 100%: 14.4 W

Air Flow:
At Duty Cycle 20%: 6.5 CFM
At Duty Cycle 50%: 11.2 CFM
At Duty Cycle 100%: 19.1 CFM

Noise Level:
At Duty Cycle 20%: 21.5 dBA
At Duty Cycle 50%: 43.0 dBA
At Duty Cycle 100%: 55.8 dBA

Air Pressure:
At Duty Cycle 20%: 2.27 mm-H2O
At Duty Cycle 50%: 18.56 mm-H2O
At Duty Cycle 100%: 54.5 mm-H2O

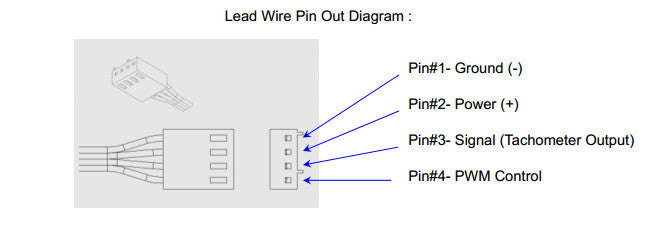

Lead Wire Pin Out:
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

Note:
1. Support CPU Power up to 150 Watts
2. Pre-print thermal compound Shin-Etsu G751
3. Backplate is not included

CERTIFICATIONS:
UL Listed
RoHS Compliant
