Cooljag 2U Server CPU Cooler with PWM Fan - Compatible with LGA 2011 Socket (JYC1R04ATPG 0) - Efficient Cooling for Data Centers, Workstations, and High-Performance Computing

Product Description

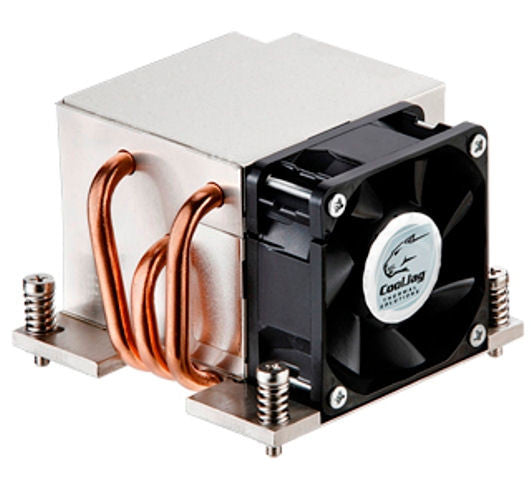

Cooljag 2U CPU Cooler w/PWM Fan Socket LGA 2011 (JYC1R04ATPG-0) # ITO-D/S-Q

Model # ITO-D/S-Q >
· Application : For Intel® Core® i7 & Xeon E5-4600, E5-2600 & E5-1600 Series Socket 2011
· Dimensions : 90mm (L) x 90mm (W) x 64.3mm (H)

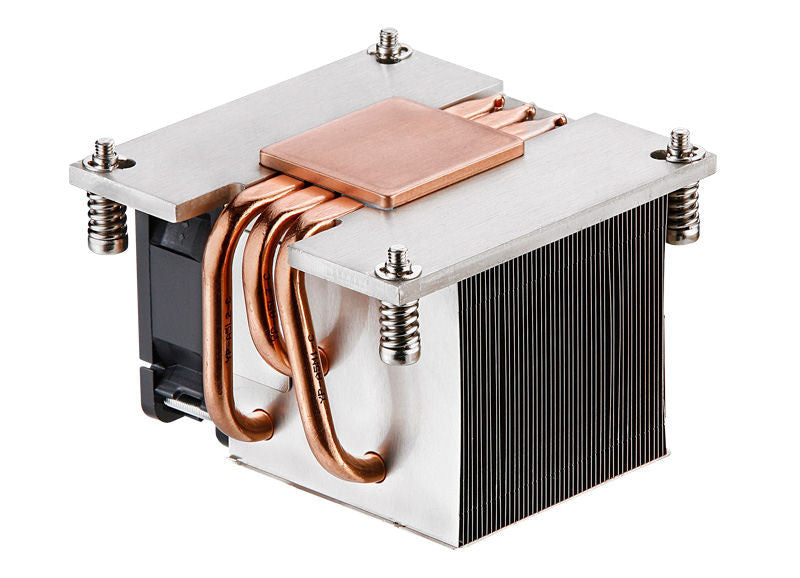

· Materials : Copper base, Aluminum fins, 3x heatpipes
· Weight: 375 g
· PWM Function: Yes
· Thermal Resistance: 0.237 C/W
· Thermal Grease: Shin-Etsu 7762 pre-applied

Fan Specifications:
· Fan size: 60x60x25.4 mm (Model: Delta AFB0612DH)
· Fan voltage: 12V
· Bearing: Ball bearing
· Fan speed: Max. 9000 rpm
· Noise Level: Max. 55 dBA
· Air Flow: max. 50.4 CFM
· Power : Max. 10.08 W
· Life Expectancy : 70,000 hrs @40C with 15%~65% RH
· Static pressure : max. 23.52 mmH2O
· Fan connector: 4-pin
· Lead wire: UL1061 #26AWG or equivalent
· Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM Input)

UL1061 Listed
