Dynatron R25 CPU Cooler for Intel LGA 2011 Socket - High Performance Cooling for Gaming PCs and Workstations

Product Description

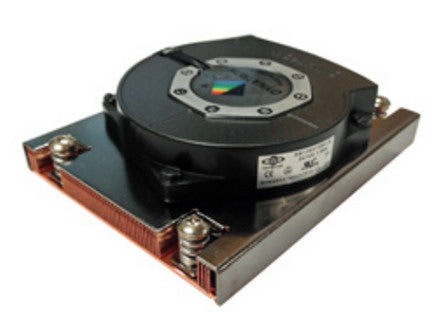

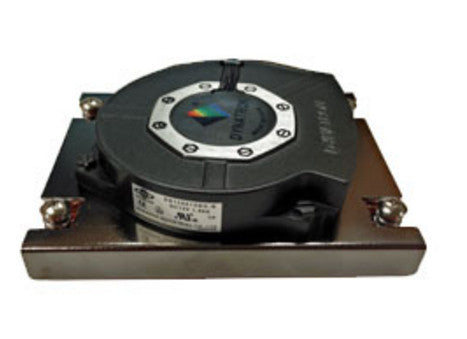

Dynatron R25 CPU Cooler for Socket 2011

840556104476

CPU Socket 2011 (Narrow Type, 56 x 94mm mounting pitch)
CPU Support Intel® ES-2600 & 4600 Series Processors up to (for Narrow ILM Mounting Only) up to 160 Watts
Solution 1U Server

PRODUCT SPECIFICATIONS:
Overall Dimension: 106.0 x 84.0 x 27.5 mm
Material: Copper based Vapor chamber heatsink with copper stacked fin
Fan Dimension: 80x 80 x 15 mm
Bearing: 2 Ball Bearing
Rated Voltage: 12 V

Speed
At Duty Cycle 20%: 1000 RPM
At Duty Cycle 50%: 3500 RPM
At Duty Cycle 100%: 7000 RPM

Power
At Duty Cycle 20%: 0.6 W
At Duty Cycle 50%: 3.84 W
At Duty Cycle 100%: 19.2 W

Air Flow
At Duty Cycle 20%: 6.5 CFM
At Duty Cycle 50%: 11.2 CFM
At Duty Cycle 100%: 22.28 CFM

Noise Level
At Duty Cycle 20%: 21.5 dBA
At Duty Cycle 50%: 43.0 dBA
At Duty Cycle 100%: 59.14 dBA

Air Pressure
At Duty Cycle 20%: 2.27 mm-H2O
At Duty Cycle 50%: 18.56 mm-H2O
At Duty Cycle 100%: 74.18 mm-H2O

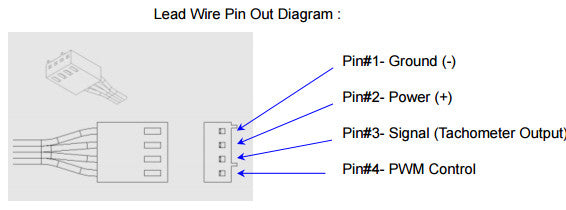

Lead Wire
Pin Out Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

NOTE:
1. for Narrow ILM Mounting Only, mounting pitch 56 x 94mm
2. Support CPU Power up to 160 Watts
3. Shin-Etsu G751 Pre-Printed.
4. RoHS Compliance
5. Backplate / Back Strips is not included.

CERTIFICATIONS:
UL Listed
RoHS Compliant

Prices had in October 2018 to increase due to new Section 301 tariffs.
