Dynatron 80x15mm PWM Blower Fan - High Performance Cooling for PC & Electronics - Perfect for Gaming Rigs, Servers, and Workstations

Product Description

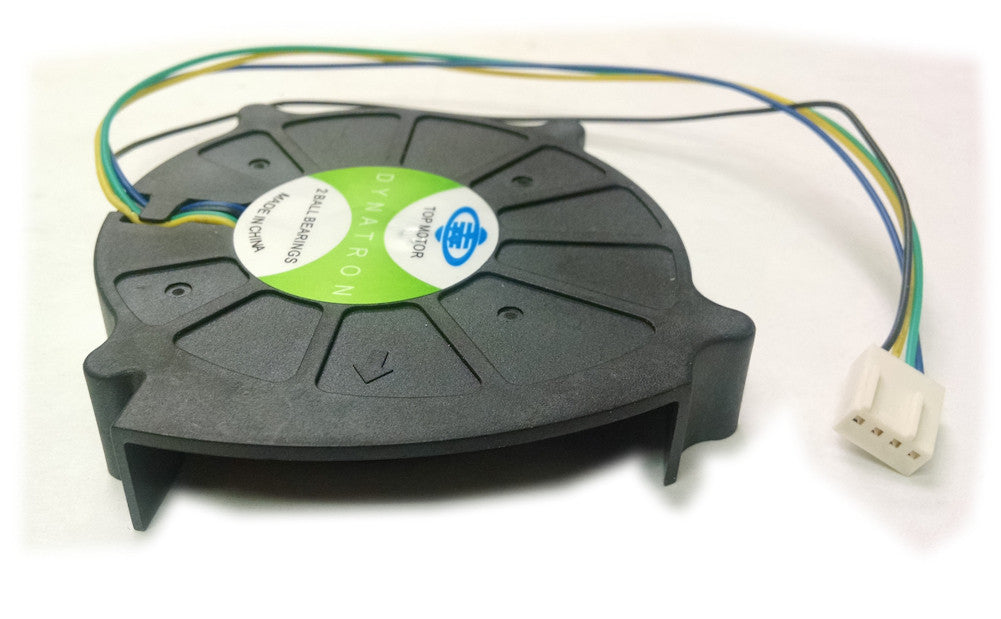

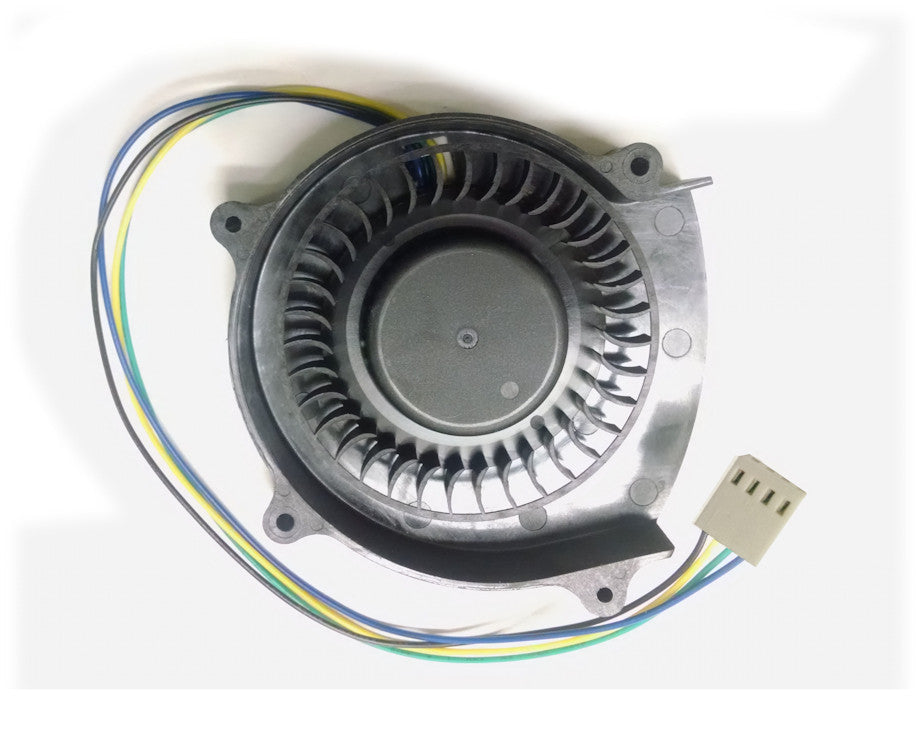

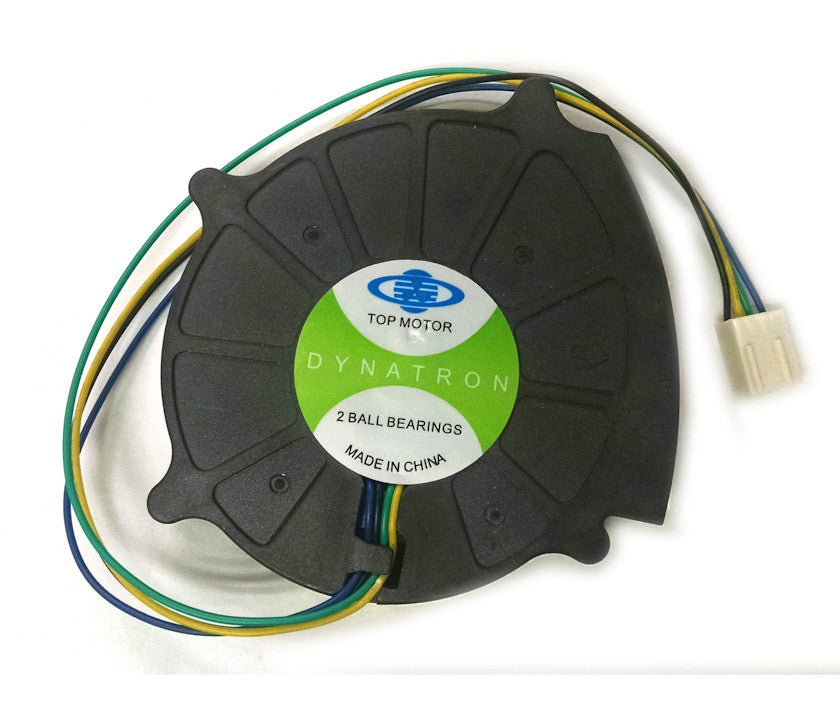

Dynatron 80xx80x15mm  Blower Fan with PWM Function DB128015BU-PWMG

840556104506

Polarity Protection For polarity error connection to power, the circuit withstands reversed connection between positive and negative leads.

Locked Rotor Protection Motor winding protects the motor from damage in 72 hours of locked rotor condition at rated voltage.

FEATURES:
Insulation Resistance– Between Frame and Terminal
Dielectric Strength– Between Frame and Terminal
Life Expectancy– Continuous operating under normal temperature (25 °C or 77 °F)
50,000 hours
Lead Wires: UL 1007, AWG 28 or Equivalent

PRODUCT SPECIFICATIONS:
Rated Voltage DC: 12 V
Air Flow: 3.0CFM- 0.32 m³ / min; 11.4CFM- 0.4249 m³ / min; 15.0CFM
Input Current (Max.): 0.06A; 0.32A; 0.70A
Fan Speed: 1000 RPM±200; 3800 RPM±10%; 5000 RPM±10%
Noise Level: 14.85 dBA; 43.84 dBA; 49.8dBA
