Programmable USB-Powered Temperature Controller with LED Display - Perfect for Home Brewing, Aquariums, and DIY Projects

Product Description

*EOL*

USB Powered Programmable thermal Controller with LED Display
(Demo Video below of non-USB type)

Thermal control USB powered unit that allows complete control over the temperature at which any USB powered devices plugged through it will turn on and off.
Designed this thermal switch especially for our cabinet cooling kits. With all the video, audio and gaming centers converging into a single storage cabinet it is imperative that the cabinet temperature be controlled. The Programmable Thermal Fan Controller gives you complete control to set the temperature for power-on and power-off plus it gives you the option to power through any accessible USB port.

*Not compatible with all USB fan see list below

Check out all our Cabinet Cooling Kits that you can buy as a complete project or piece together for you individual needs.

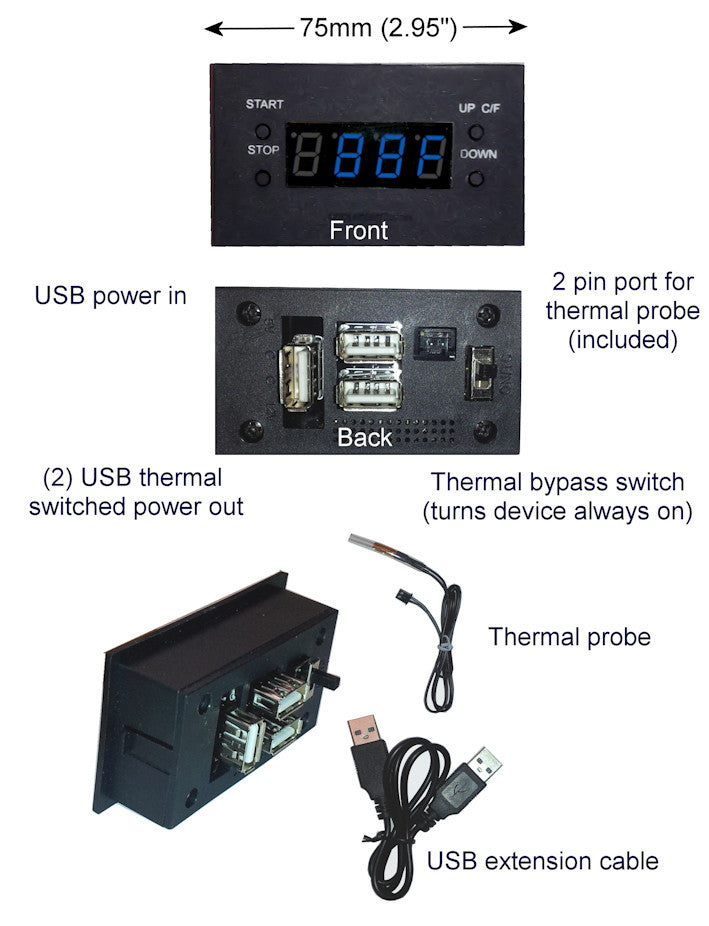

Features:
- 24" Thermal Probe
- 2 USB Power out
- 1 USB Power connector (26")
- 4 Segment LED Display
- Option to switch between Fahrenheit and Celsius Display
- *Fully Programmable from 32-211F (0-100C) (On temperature must be at least 2F/1C above turn off temperature)
- For USB powered devices ...does not pass data.

Dimensions:

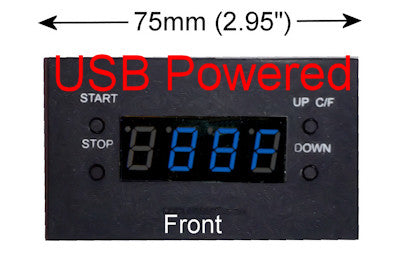

Device: 75mm x 44mm x 21mm
Cutout: 69mm x 38mm


Instructions:
Set Start Temp: Press "start button" once to put unit in Start programming mode and the start up temperature will blink. Use the right Up/Down buttons to set the temperature (note: it must be at least 2F/1C higher than the turn off temperature) press "start button" again to return to the real time readout.

Set Stop Temp: Press "stop button" once to put unit in Stop programming mode and the turn off temperature will blink, use the right Up/Down buttons to set the temperature (note: it must be at least 2F/1C lower than the turn on temperature) press the "stop button" again to return to the real time readout.

C/F or Up: Will change display to and from Fahrenheit and Celsius or will increase the temperature when in the Start or Stop programming mode.

Down: Will decrease the temperature when in the Start or Stop programming mode.

Display On/Off Switch: To turn display light off (device will still function) simply press and hold the C/F Button for 5 seconds. Repeat the process to turn display back on.
(valid for units manufactured on or after December 10, 2012)

*Not tested at extreme temperatures

Important Notes:

DO NOT REMOVE PROTECTIVE SHIELD from the thermal probe to prevent static charge from damaging the sensor. Only one fan(s) plug can be connect to each USB port located on the back of the controller. Additional fans cannot be daisy chained together . Maximum (2) fans per unit. Designed for use with all of Coolerguys singe USB Fans. Might not be compatible with other USB Fans.

Patent Pending

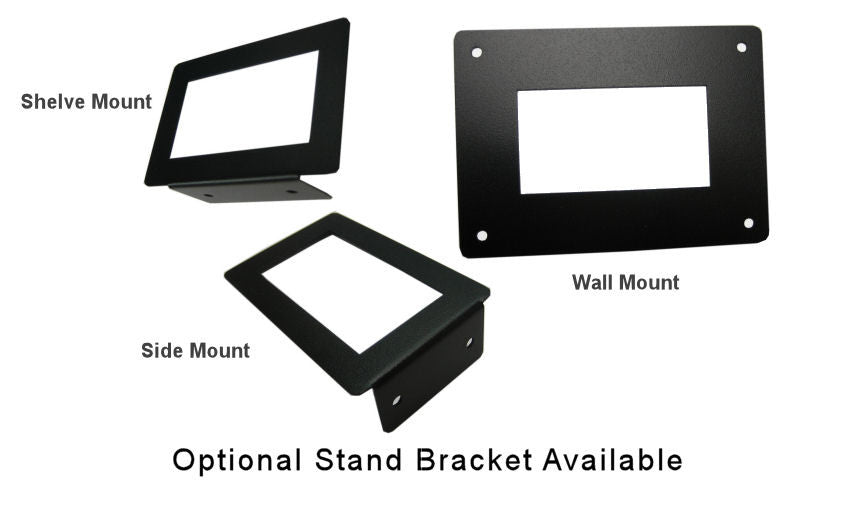

Suggested Accessories:



* Compatibility Information:
This controller is not compatible with the following fans we sell:
Coolerguys 50X50X10MM USB FAN With Single Grill 840556003687
Coolerguys 50X50X10MM USB FAN With Single Grill (L-Plug) 840556103295
Coolerguys Single 92x25mm USB Fan with Grill #CG09225L05B2-U 840556093084
Coolerguys Dual 50mm component cooling fans with USB connection 840556095637.

We are currently engineering a fix for these fan.

We trust in our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
