Coolerguys Pre-Set Thermal Controller (Rev4) - Digital Temperature Regulator for PC Cooling & Home Brewing - Perfect for Gaming Rigs & DIY Projects

Product Description

Coolerguys Pre-Set Thermal Controller (Rev4)
Temperature controlled on/off thermostat switch SKU 840556098690

Designed to work with our or any standard 4pin Molex computer supply to power 12v devices.
This controller has 2 functions.
1. Continuously power devices when the switch is in the up position (top green led will be lit). Total device capacity is limited by the power supply capacity and 4pin molex connector (which is rated up to 11 amps or 11000 mA). Each fan header connector can support up to 3 amps (3000 mA).
2. Thermally control when the back switch is in the bottom position, when the temperature is >=88F(31C) it will power on the 3pin ports and stay powered on until the temperature falls below 81F(27C)
3. Switch in up position turns fan always On

This Thermal switch is the work horse of our . We use this and our LED Version of the same controller for most of the temperature control needs. This switch fits into a precut slot in a number of the kits or in and can also be used as a stand-alone unit using one of our (not included).

Package Includes

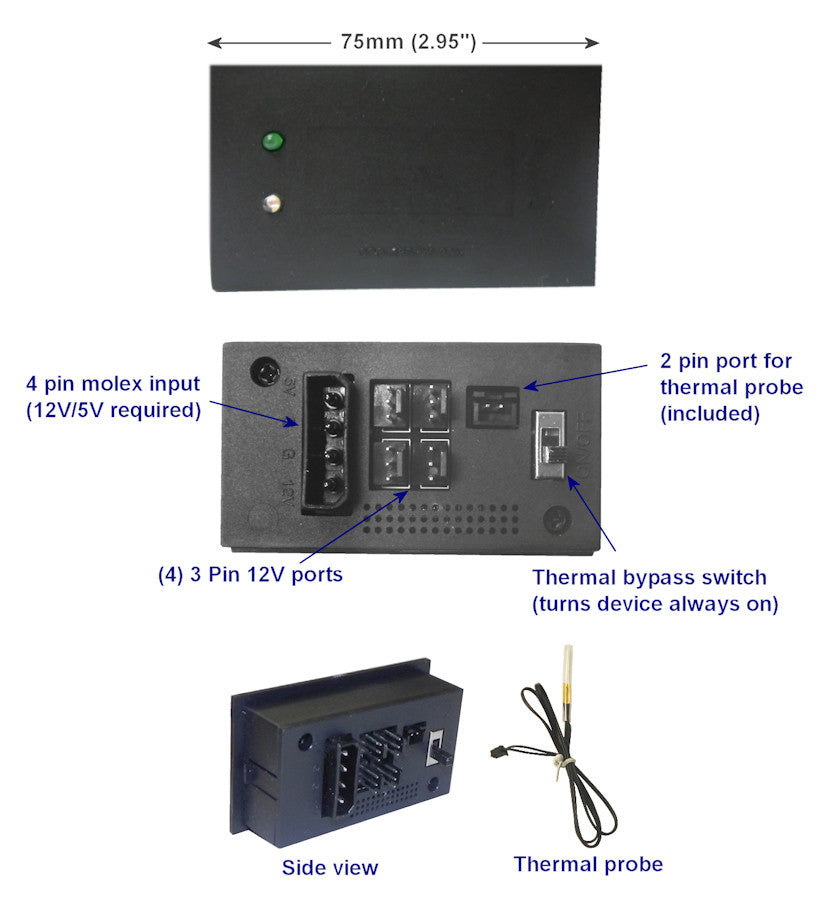

(1) Controller Device: 75mm x 44mm x 26mm / Cutout: 69mm x 38mm
(1) Thermal Probe 18" (please leave the protective shield on)

Specifications:
(1) 4pin female molex port, 12v, ground, ground, 5v (not required)
(4) 3pin male connectors, 12v & ground out only, 3rd pin inactive
(1) 3mm Green LED, only lights when you are using in continuous mode with switch in up position
(1) 3mm Dual Red/Green LED, when switch is in down thermal control position this will be red when below 81F and Green when the controller has activated the 3pin devices

Suggested Accessories:



Coolerguys 110-240v AC to 12 / 5v DC 4pin Molex 2A Power Adapter

Important Note: DO NOT REMOVE PROTECTIVE SHIELD from the thermal probe to prevent static charge from damaging the sensor.

We trust in our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
