Everflow 70x70x10mm Ultra High Speed Dual Ball Bearing 12V PWM Cooling Fan R127010BUAF - Perfect for PC Cooling, Electronics, and DIY Projects

Product Description

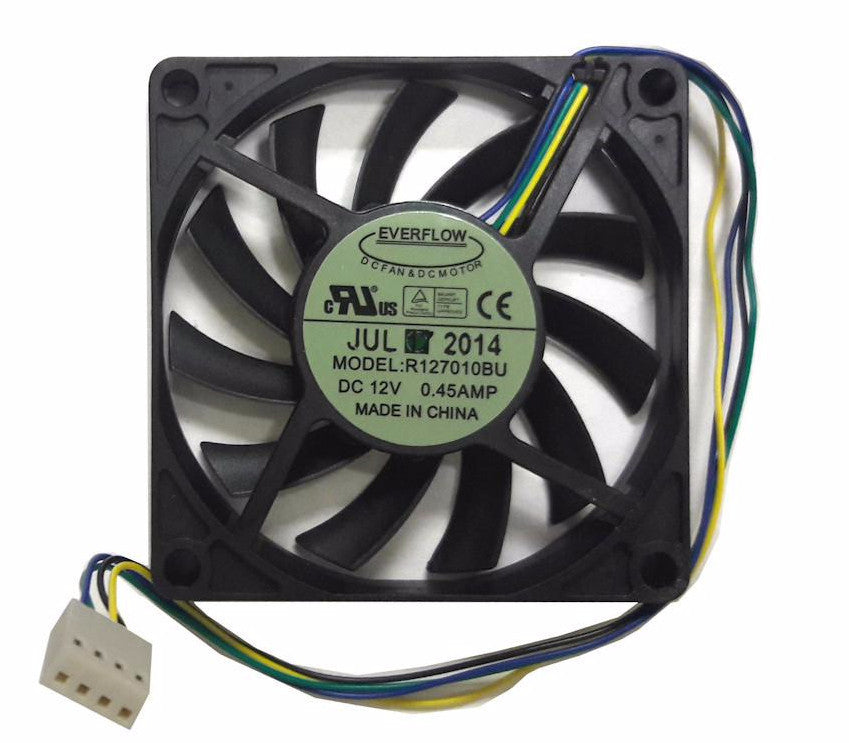

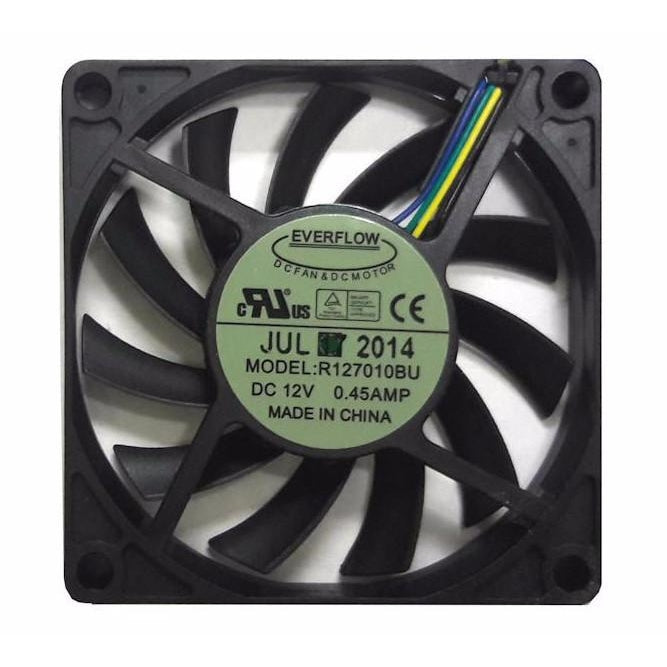

Everflow 70x70x10mm Ultra High-Speed Dual Ball Bearing 12 Volt PWM Fan-R127010BUAF

840556003281

Experience high-performance cooling with the Everflow 70x70x10mm fan. Featuring Dual Ball Bearing technology and 12 Volt PWM speed regulation, this ultra high speed fan boasts a life expectancy of 50,000 hours and operates at temperatures from -10-70C. Enjoy efficient airflow and whisper-quiet operation - the max noise level is only 45 dBA. Perfect for any cooling need.

FEATURES:
Operating Temp: -10-70C
Material Housing Plastic (UL94V-0)
Bearing Type: Two ball bearing Impeller Plastic (UL94V-0)
Power: 1.2 W (duty cycle 0~30%)~ Max. 5.4W (duty cycle 100%)
Pin Assignment: Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
Life Expectancy: 50,000 hours

PRODUCT SPECIFICATION:

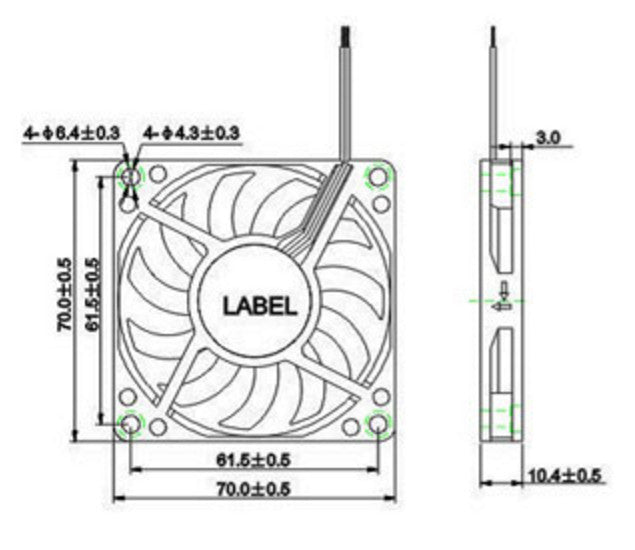

DC Fan Size: 70x70x10mm
Bearing Type: Dual Ball Bearing
Fan Speed: 1200 ~ 5400 RPM
Noise Level: 19-45 DBA
Rated Voltage: 12 Volt
Max Airflow:  6.96 ~32.93 CFM

*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice
