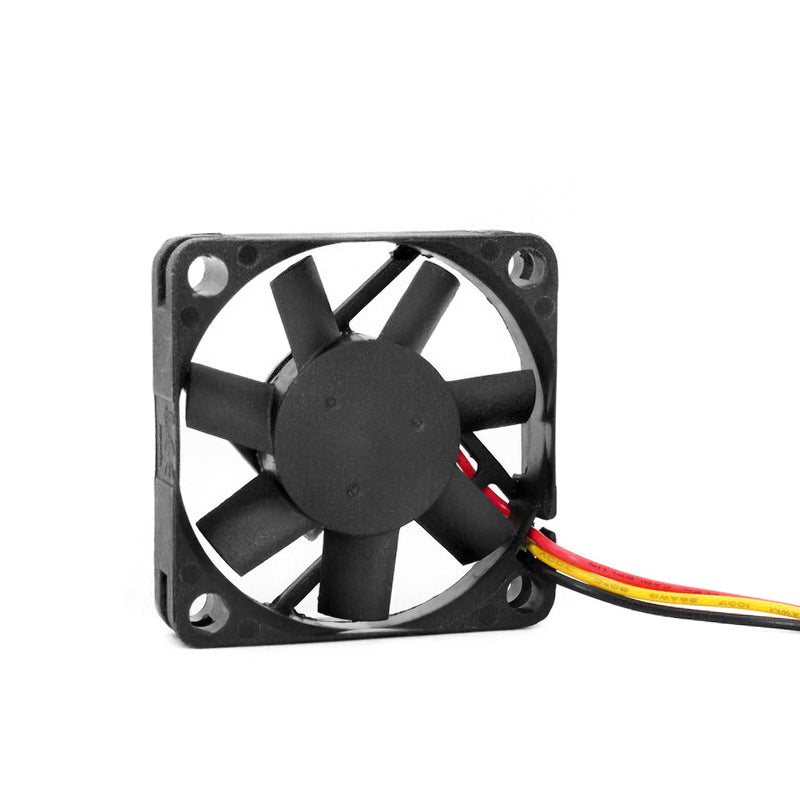

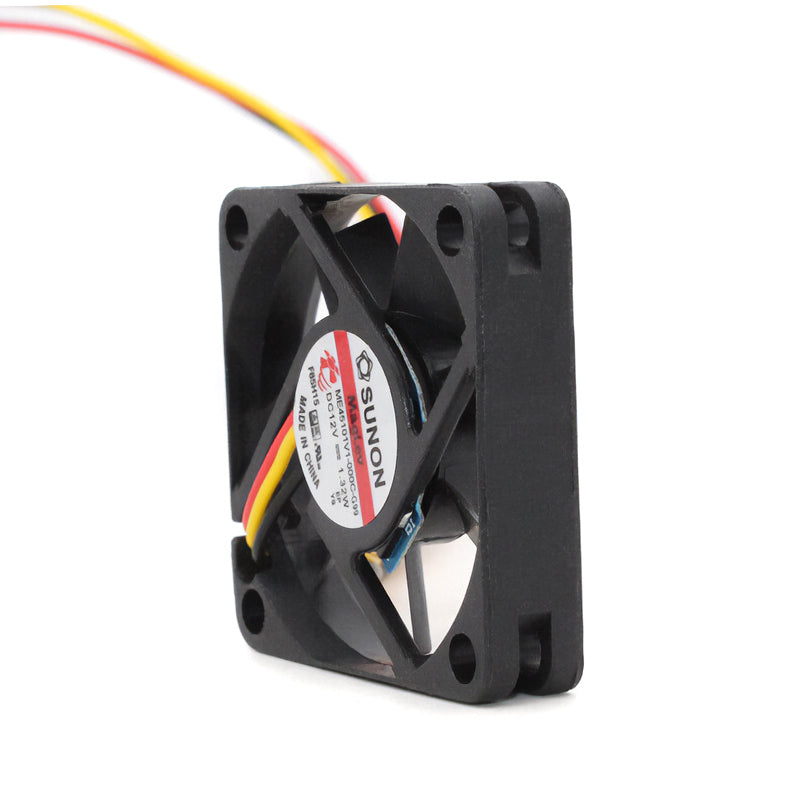

Sunon 45x45x10mm ME45101V1 000C G99 DC Brushless Cooling Fan - High Performance for PC, Electronics & DIY Projects

Product Description

**EOL**

Sunon 45x45x10mm ME45101V1-000C-G99

840556075424

PRODUCT SPECIFICATIONS:
Rated Voltage: 12VDC
Size / Dimension Square: 45x45x10mm
Air Flow: 11.8 CFM
Bearing Type: Vapo bearing system
Noise: 32.5 dB(A)
Power: 1.32 Watts/ Max. 1.53 Watts
Fan Speed: 6500 RPM
Connector: 3-Pin
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Weight: 16g
Current Rating: 110 mA
Voltage Range: 4.5 ~ 13.8VDC
Motor Design: 2 phases, 4-poles Brushless DC Motor
Direction of Rotation: Counter-clockwise viewed from the front of the fan blade
Mounting Holes: Diameter 4.3mm in 8 holes
Material - Frame: Thermoplastic PBT of UL 94V-0
Material - Blade: Thermoplastic PBT of UL 94V-0
Lifetime @ Temp.: 60000 Hrs @ 40°C
