Streacom DB4 Fanless Mini-ITX PC Case - Ultra Silent Computer Chassis in Black/Silver for Home Theater & Office Workstations

Product Description

Streacom DB4 Fanless Chassis Black or Silver, Extruded Aluminum, without Optical Slot # ST-DB4

Includes Ground shipping for most US locations

The DB4 is a design masterpiece featuring a bisymmetrical design that blurs the lines between technology and art. Every element of this case subtly screams premium, from the 13mm thick extruded aluminum side panels to the precision CNC’d internal frame, all perfectly blended together with our characteristically understated design tone. Coolerguys

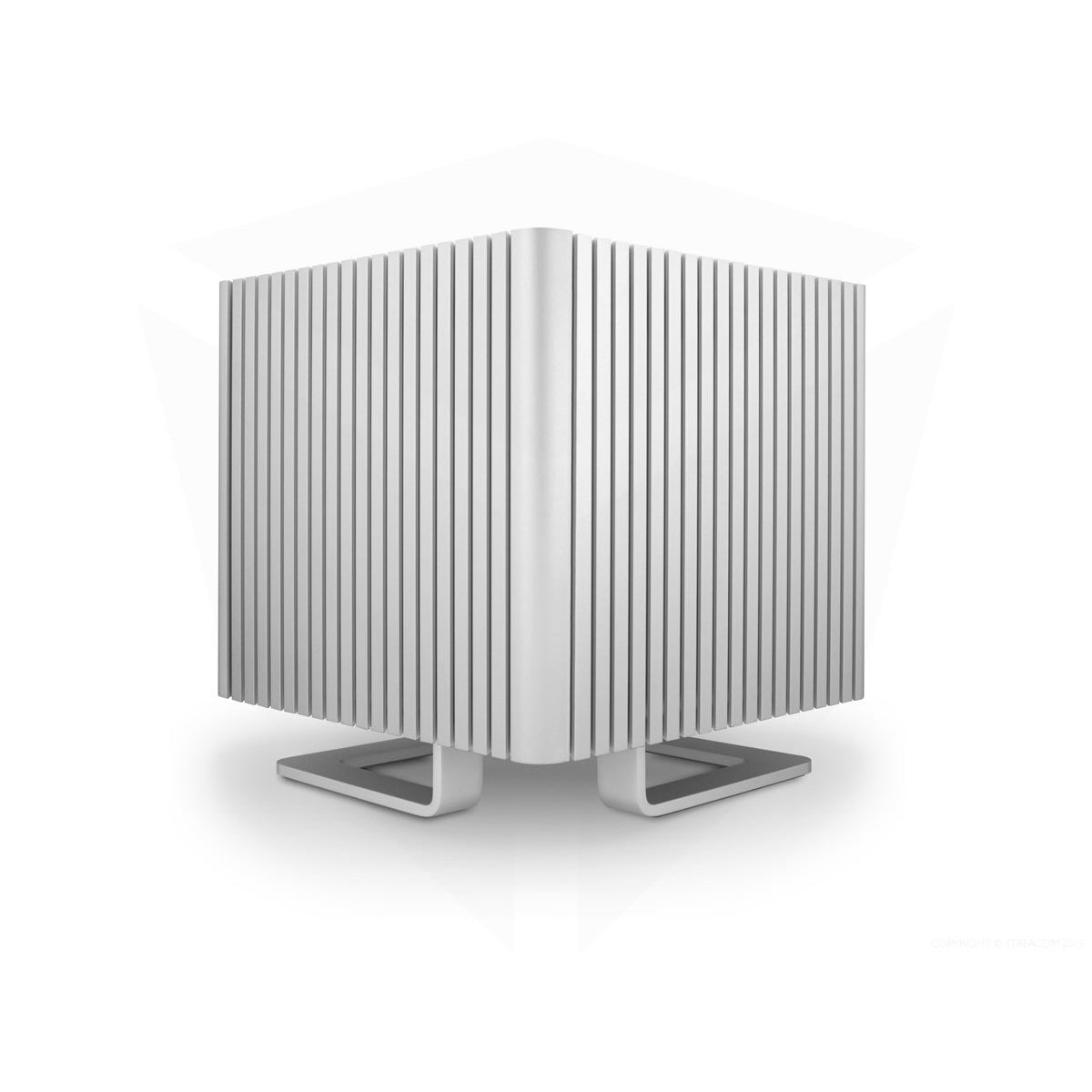

Key to its design are the identical sides of the case which serve both as the striking monolithic exterior and the convection surface (or heat sink) for component cooling and is the basis of its fanless operation.

Motherboard compatibility has been address and the DB4 solves one of the biggest complexities of building a fanless case. With both the motherboard and side panels being parallel, the heat pipes run perpendicular, away from any components and in combination with the flexibility of the universal bracket, means that virtually all ITX motherboard are compatible with the case.

Our existing CPU mount has also been re-engineered to be adjustable and universally compatible with any socket. It now features a copper shim interface between the IHS and heat pipes which creates a more efficient all copper thermal path to the heat sink, greatly improving cooling performance.

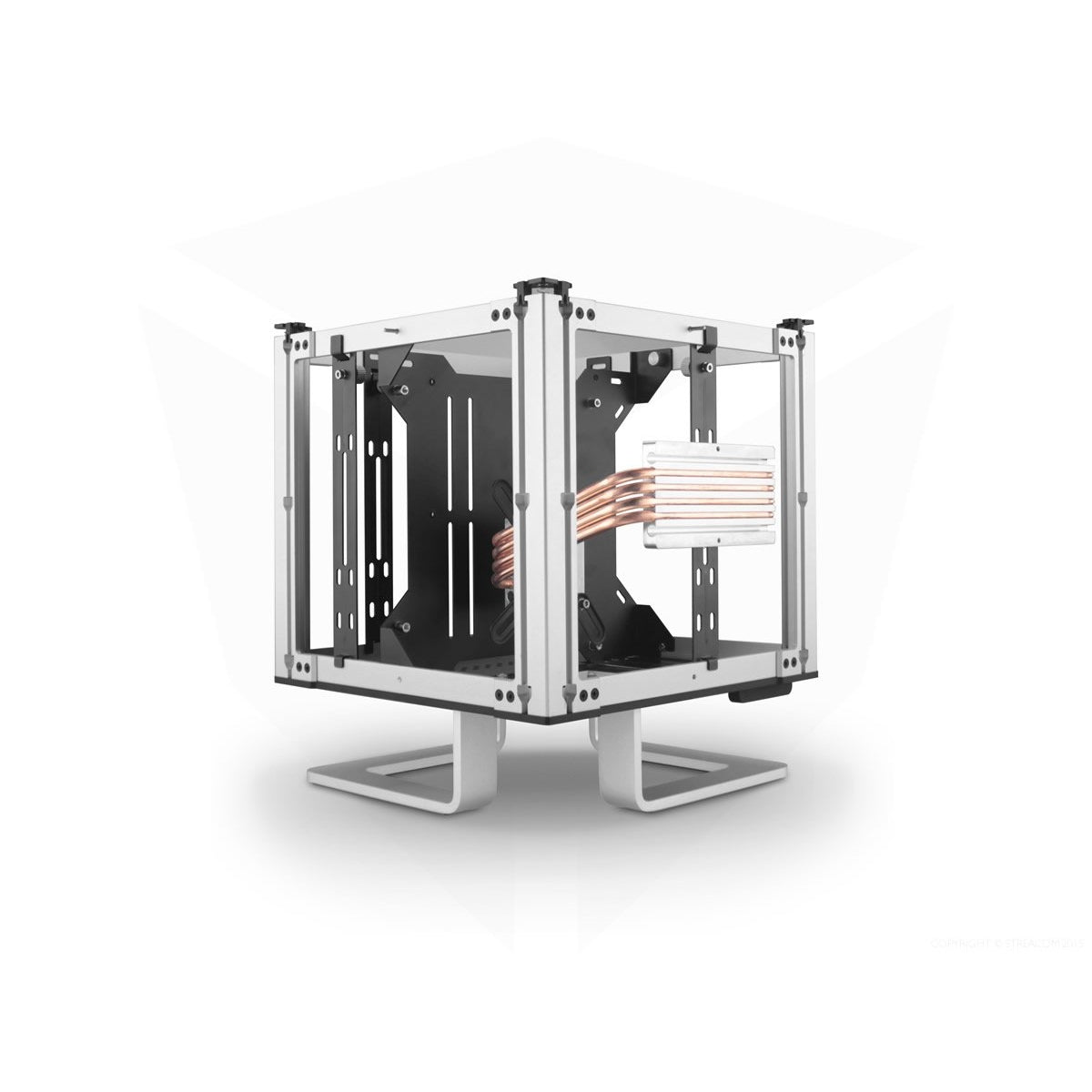

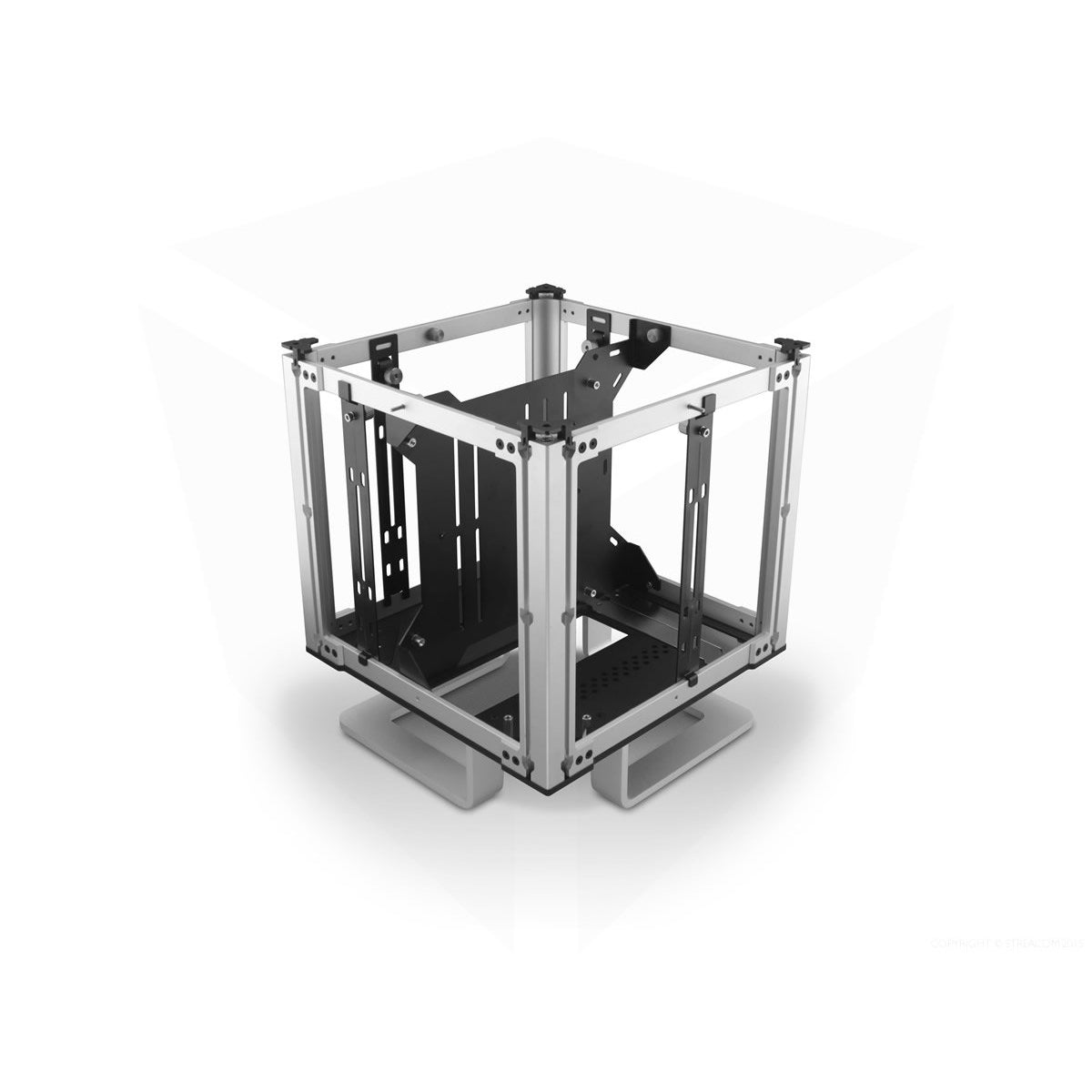

To make assembly easier, all the side panels are removable, as is the motherboard tray, leaving an open frame with plenty of accessibility. Building on the innovation of our F12C, components are fitted using a universal bracket system that supports, drives, heat sink mounts and the ZF240, allowing components to be mounted anywhere along the frame of the case, delivering a truly modular and flexible layout.

The DB4 measures 260 x 260 x 270mm but still manages to accommodate an ITX motherboard, a dual slot full height PCI card (max 200mm length, 110mm height), up to 5 x 3.5” or 12 x 2.5” drives (lots of combinations in between), and can be powered by our Nano or ZeroFlex PSU solutions.

Chassis Material: Premium Grade (6063) All Aluminium, 4mm Thick Extruded Panels

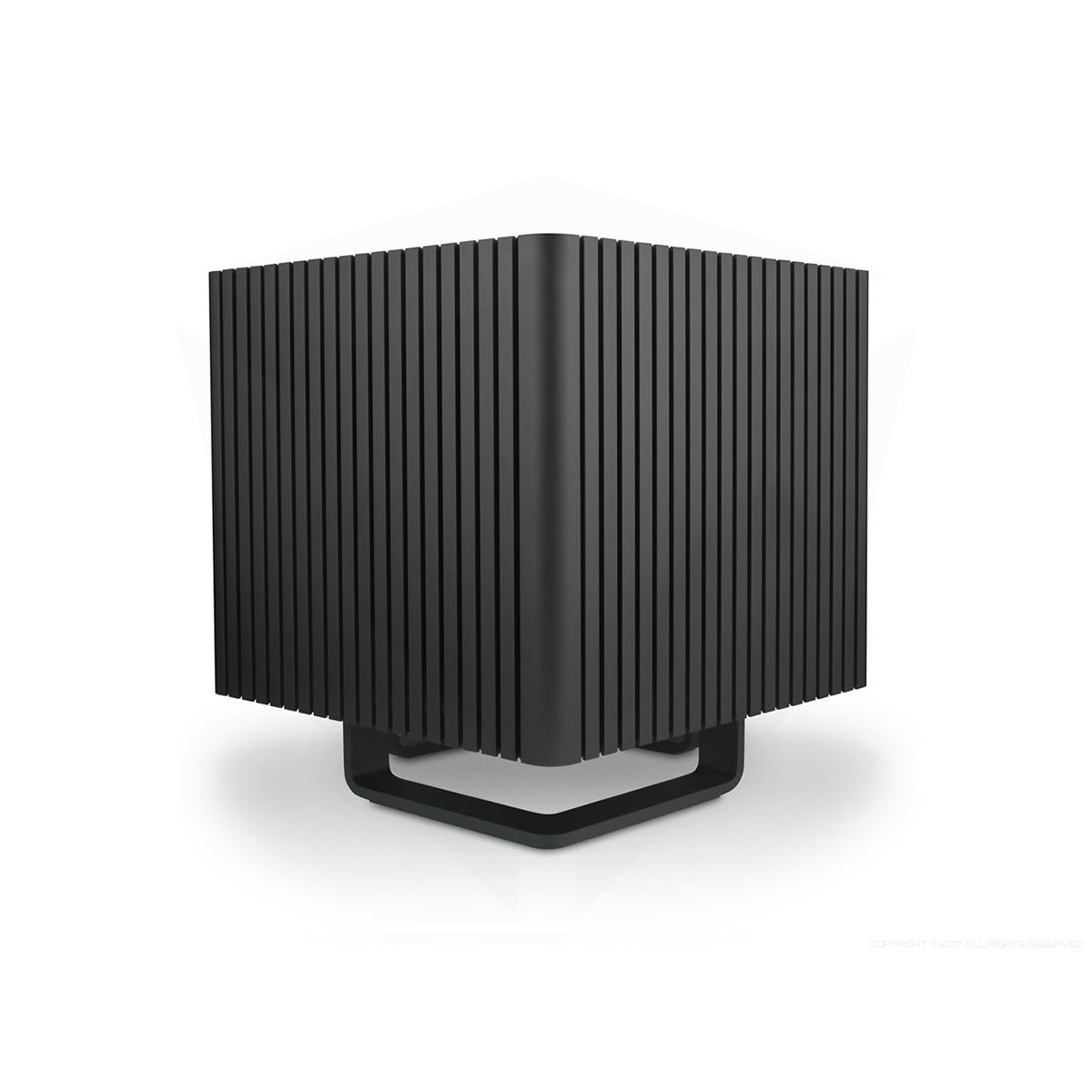

Available Colours: Silver / Black – Sandblast Finish
Motherboard Support: Mini-ITX
Drive Capacity: Maximum 5 x 3.5″ or 12 x 2.5″ ,*1
Expansion Slot: 2 x Full Height Slots (MAX 200mm Length, 116mm Height ,*2
USB Ports: 2 x USB3.0, Bottom Facing
Cooling: 4 x 6mm Heatpipes with 65W / Side Panel, Expandable to 110W , *3
External Dimensions: 260 x 260 x 270mm (W x D x H)
Power Supply: ZF240 or Nano Series PSU (Not Included)

*1 Multiple combinations of both
*2 Pay attention to the AUX Power Connector orientation on the graphics card as this could increase the total height above the 116mm limit.
*3 Additional LH6 heatpipes required. As with any passive cooling solution, environmental conditions will have an impact on the performance. A location with adequate air flow and moderate ambient room temperature is required.

.
