Cooljag DEN 7 1U Server CPU Cooler JACLL03C - High Performance Cooling Solution for Data Centers & Rack Servers

Product Description

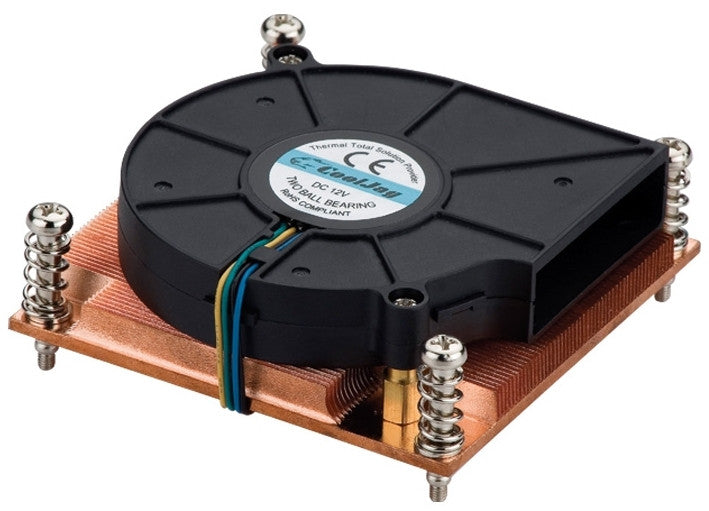

Cooljag DEN-7 1U CPU Cooler JACLL03C

840556022480

Model No.: DEN-7
Application: For Intel® Xeon 3400 Series & Core® i7, i5, i3 Socket 1156/1155/1150/1151
Dimensions : 84 mm (L) x 84 mm (W) x 28 mm (H) Materials : Copper
Weight: 382 g
PWM Function: YES
Thermal Grease: Shin-Etsu PCS-TC-11 pad

FAN SPECIFICATIONS:
Fan Size: 75x75x15mm
Fan Voltage: 12V
Bearing: Dual Ball bearing
Fan Speed: 1000~ 5500 RPM
Noise Level: 18~51 dBA
Air Flow: 1.93~11.83 CFM
Power: 1.2~ 9.6 W
Static pressure: 0.38~20.66 mmH2O
Fan connector: 4-pin PWM
Lead wire: UL1061 #26AWG or equivalent
Pin Assignment: Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)

CERTIFICATIONS:
CE Listed
