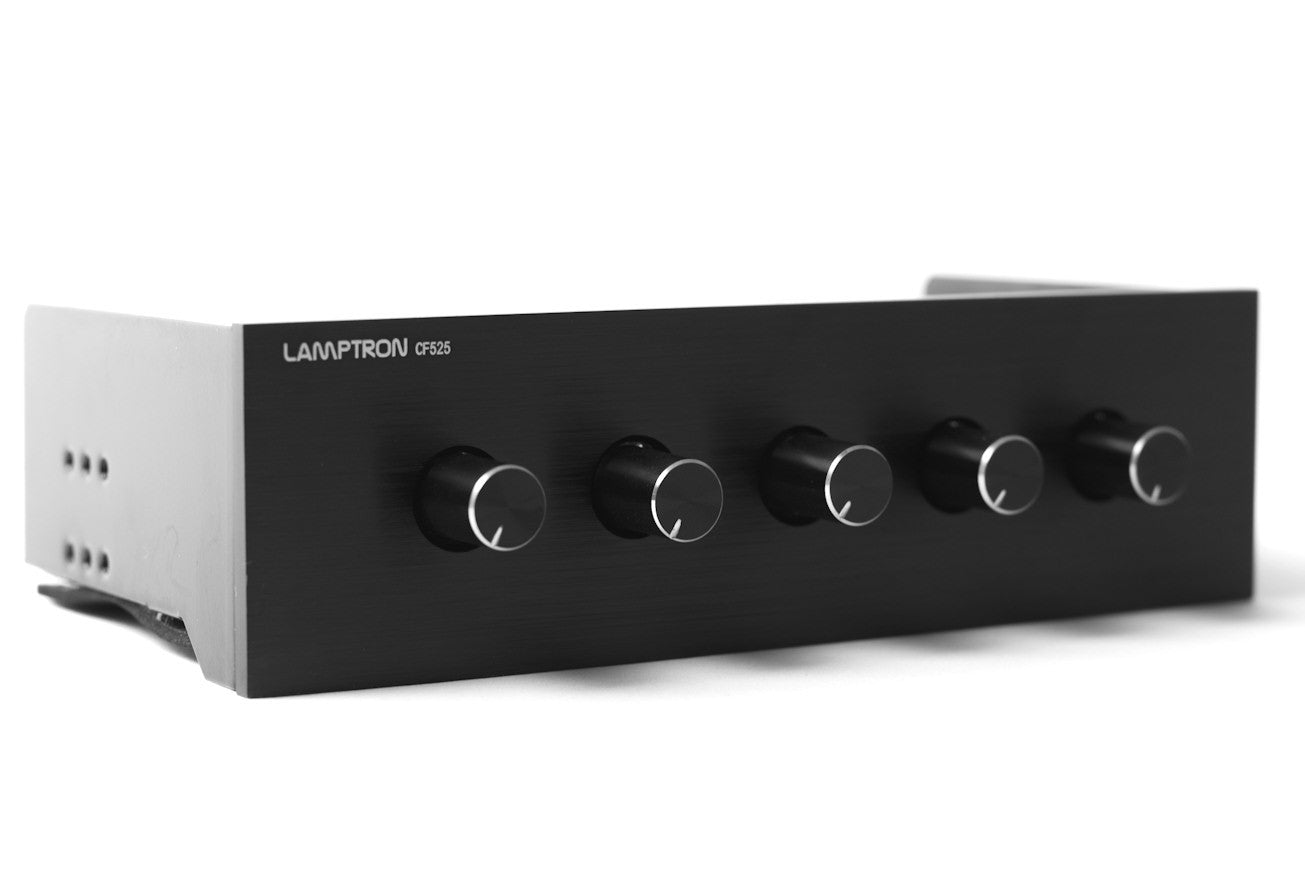

Lamptron CF525 5-Channel Fan Controller - 60W per Channel for PC Cooling & Custom PC Builds - Perfect for Gaming Rigs & Workstations

Product Description

Lamptron 5 channel fan controller/60 watts per channel #CF525

The Lamptron CF525 is the spiritual succesor to the classic and powerfull FC2. The CF525 provides a whooping 60w per channel through its 5 channels providing a total of 300w for the power hungry. To put it in perspective, this controller is able to control 10x of the infamous Delta AFB1212GHE-CF00 fans at full speed at the same time (2 per channel). These fans require 29.5W/4.5A each, that’s 24.5A/295W of draw in total! With the CF525 we can safely say you will only ever need one controller in your system regardless of how many cooling solutions you choose to use in terms of power needs. For your consideration, The Lamptron CF525. No Frills, Just Power.

SPECIFICATIONS:
Dimension: 148.5mm*42.5mm*76mm(5.25″ Bay)
Power Output: Up to 60 watts per channel
Control Channel: 5 Channels
Panel Color : Black Anodized
DC Input: +12v (1pcs MOX4.2 5557-2*4p connectors. A.k.a PCI-E GPU 8pin)
DC Output: 0V- 12V DC
Connectors: 5 X 2510-3pin connectors / 8pin to 3xMolex adaptor)
Recommend PSU wattage: 700w or higher. It is imperative that no molex multipliers are used to plug in the 3 molex adaptor supplied.

Features
Most powerfull controller in the market
60w per channel
Very high quality materials
5 completely independant 60w/5A channels

Other Great Features!

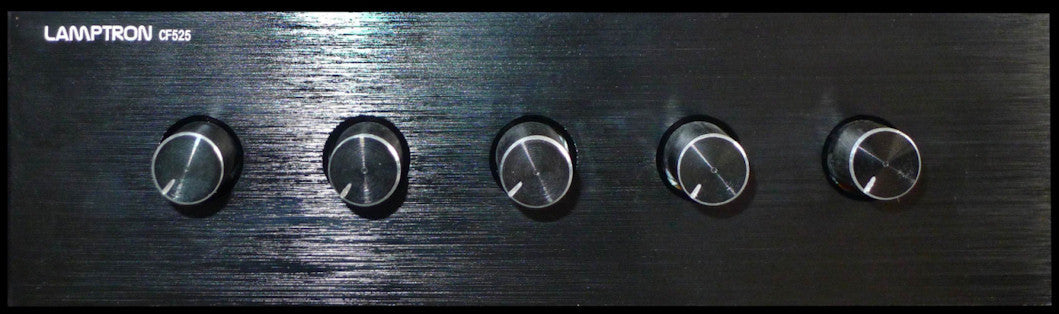

CNC milled aluminium face-plate
Sleeved cables

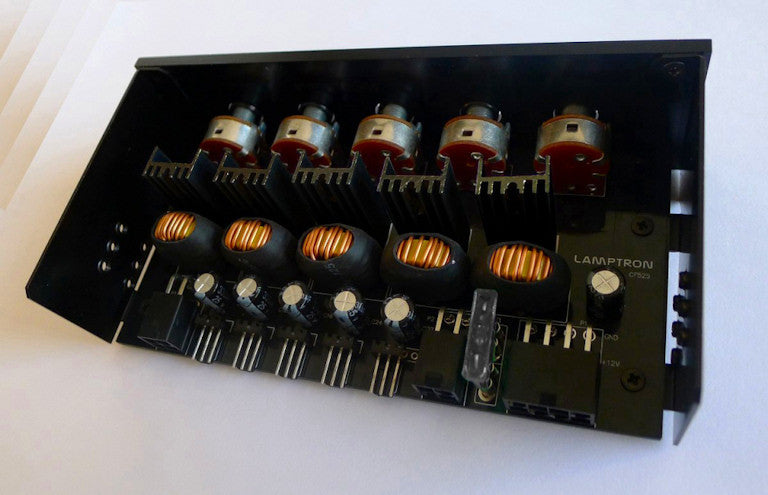

Black PCB
No frills, just power

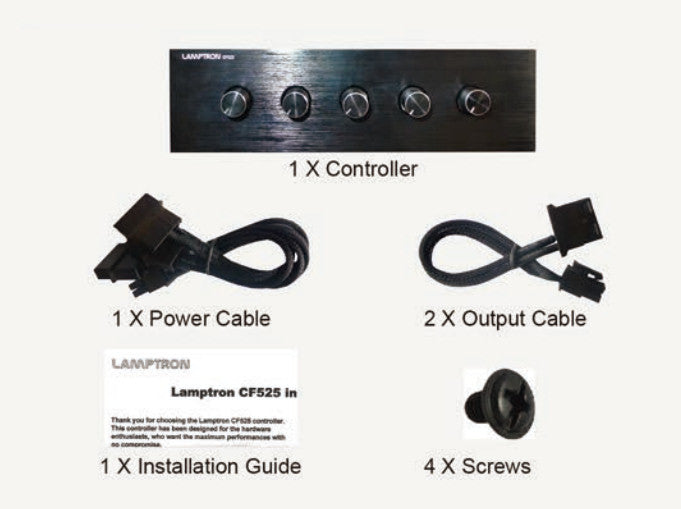

Items List:
Controller
Power Cable
Output Cable
4 x Screws
