Product Description

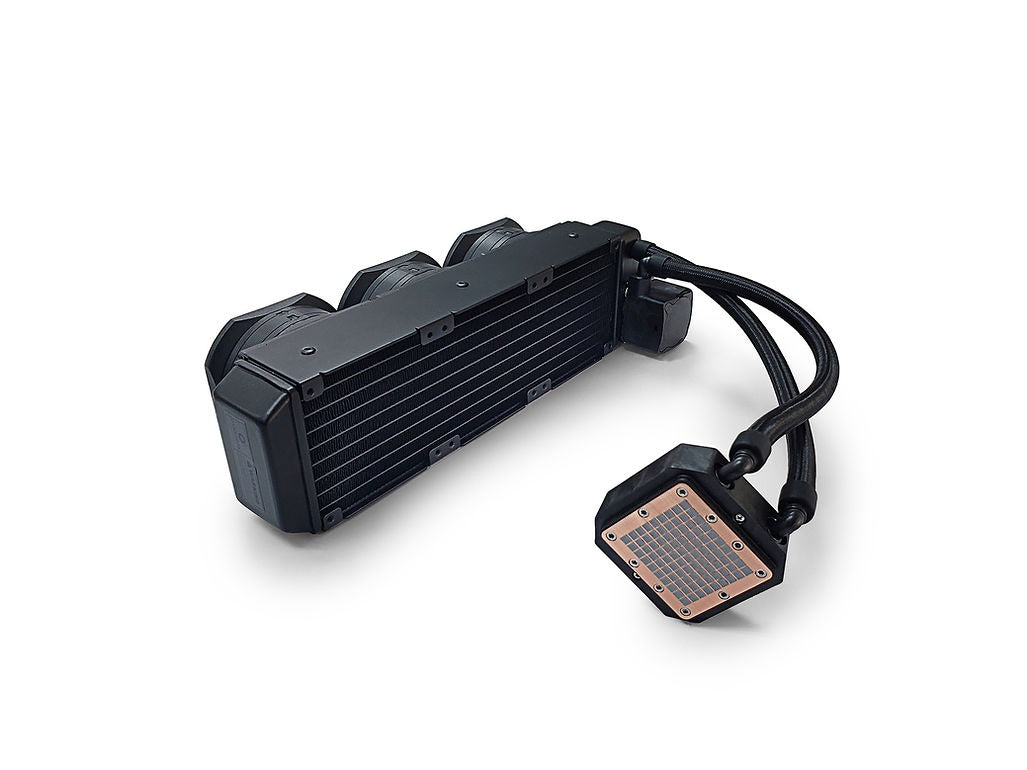

Dynatron L35 2U Liquid Cooler
840556077324
Recommend for CPU as following:
AMD® Socket AM2/AM3/AM4/AM5/FM1/FM2;
Intel® Socket FCLGA 1150, 1151, 1155, 1156, 1366;
Intel® Socket LGA 1700;
Intel® Socket FCLGA 2011(sq), 2066(sq);
Liquid cooler for 2U server & up
PRODUCT SPECIFICATION:
CPU Support: Intel & AMD
CPU Socket: LGA115x, LGA1366, LGA1700, LGA2011/2066 Square ILM AM2/AM3/AM4/AM5/FM1/FM2
Screw Type: #6-32/M3/M4
Installation Torque: 6-10 in-lb/5-7 in-lb/10-16 in-lb
Solution: 2U Server and Up
Fan Dimension: 80 x 80 x 38 mm
Cold Plate Dimension: 64.5 x 64.5 x 23 mm
Radiator Dimension: 304.9 x 82 x 85.1 mm
Speed:
At Duty Cycle 0~20%: 2400± 200 RPM
At Duty Cycle 50%: 4800± 10% RPM
At Duty Cycle 100%: 8000±10% RPM
Bearing: 2 Ball Bearing
Rated Voltage: 12V
Fan Power Consumption:
At Duty Cycle 0~ 20%: 1.20 W
At Duty Cycle 50%: 5.52 W
At Duty Cycle 100%: 24.72 W
Noise Level:
At Duty Cycle 0~ 20%: 25.63 dBA
At Duty Cycle 50%: 47.85 dBA
At Duty Cycle 100%: 64.40 dBA
Air Flow:
At Duty Cycle 0~ 20%: 35.52 CFM
At Duty Cycle 50%: 67.24 CFM
At Duty Cycle 100%: 115.61 CFM
Air Pressure:
At Duty Cycle 0~ 20%: 1.39 mm-H2O
At Duty Cycle 50%: 5.97 mm-H2O
At Duty Cycle 100%: 34.06 mm-H2O
Lead Wire Pin Out:
Pin1- (-)
Pin2- (+)
Pin3- (Tachometer/Signal output)
Pin4- (PWM)
Pump Power Consumption: 7.2W
Life – Continuous operating under normal temperature (40 °C or 104 °F):
70,000 Hours
