X2 Eclipse IV High Performance CPU Cooler with PWM Fan - Efficient Cooling for Gaming PCs & Workstations - Perfect for Overclocking & High-End Computing

Product Description

X2 Eclipse IV High Performance CPU Cooler #X2-9862N1-PWM
One open box item available

ECLIPSE IV

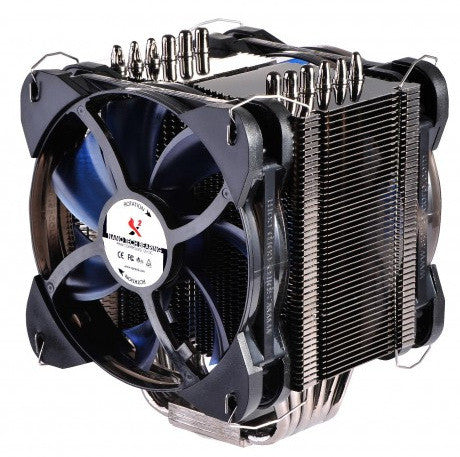

Introducing the Eclipse IV – Performance CPU cooler by X2. Following the award winning TherMax series CPU Coolers by our parent company Spire, the enthusiasts at X2 have further developed and improved the product’s performance. Introducing the successor; Eclipse IV universal compatible performance CPU cooler.

: Abstract: Bearing close resemblance to the Prolimatech Megahalems Frostytech tested a few years back, the Eclipse IV heatsink is a bifurcated-tower cooler from heatsink manufacturer 'X2 Products' a brand offshoot of Spire Corp. The Eclipse IV heatsink is rated to a maximum cooling capacity of 220W by its makers and at first glance has the gravitas to back that claim up.

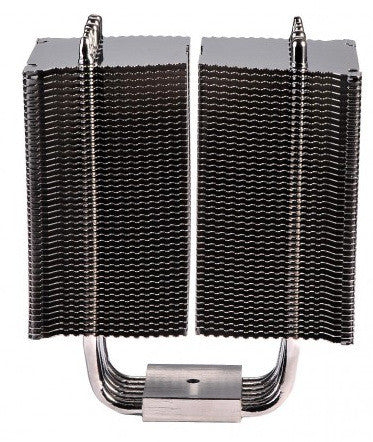

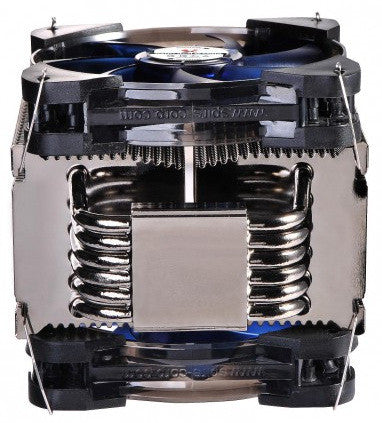

Starting with the heat-sink, 45 aluminum stacked fins provide a larger surface area. The front and rear sides of the fins are patterned with shark-teeth for better outflow of air which helps to a more silent solution. Six (6) all copper heat-pipes of 6mm in diameter which are bend into the tower u-shape to achieve unrestricted air-flow and best cooling performance. All six (6) heat-pipes are soldered onto the heat spreader-base and cooling fins. Following the complete heat-sink is anodized and coated with pure nickel which fills any tiny imperfections and preserves the copper heat-pipes from oxidation. Asymmetrical heat-sink design which ensures sufficient clearance in the direction of memory slots and RAM height clearance. Topped with two proprietary Nano-tech bearing 120x25mm high airflow DC Fans which are mounted with anti-vibe rubber corners and metal wire clips. Secure mounting with the Robust H-bracket, application to all current AMD and Intel sockets and micro-processors (LGA1366, LGA1156, LGA1155, LGA1150, LGA775, AM2, AM2+, AM3, AM3+, FM1, FM2) and supplied with grade-A Thermica thermal grease that provides best contact ratio and outstanding reliability.

SHORT SPECIFICATIONS
45 wide aluminum heat-sink fins6 all copper heat-pipes, 6mm in diameter
U-shape tower structure, unrestricted air-flow
All black-nickel coated, preserve from oxidation
Asymmetrical heat-sink design, ensuring RAM clearance
2 proprietary Nano-tech bearing 120x25mm DC Fans
Anti-vibe rubber fan corners with metal wire mounting-clips
Robust H-bracket, secure and universal socket application
Supplied with grade-A Thermica thermal grease
Best cooling performance up to 220W TDP
Backed by 2 year manufacturer service warranty

FULL SPECIFICATIONS
Unit Dimension (cm) 13.1 x 7.1 x 15.3
Air Flow (CFM) 75.63
Application AMD,AM2 - AM3 - AM3+FM1 - FM2
Intel, LGA775,LGA115X,LGA1366,LGA2011
Bearing Type Nano Bearing
Cable Type Sleeved
Certification CE / ROHS
Color Black Nickel Coated
Connectors 4 PIN PWM Molex 2510
Fan Size (cm) 12 x 12 x 2.5
Fan Type Nano Bearing Fan
Fits Socket Types Intel,AMD
Intel 775,115x,1366,2011
AMD AM2,AM3,FM1,FM2
Life Expectancy (HRS) 70,000 HRS
Material AL+CU
Noise Level (dBA) 10 ~ 24
Number Of Fans (Pre-Installed) 2
Operating Temperature (°C) From -10
Operating Temperature (°C) To 70
Options Heatpipes

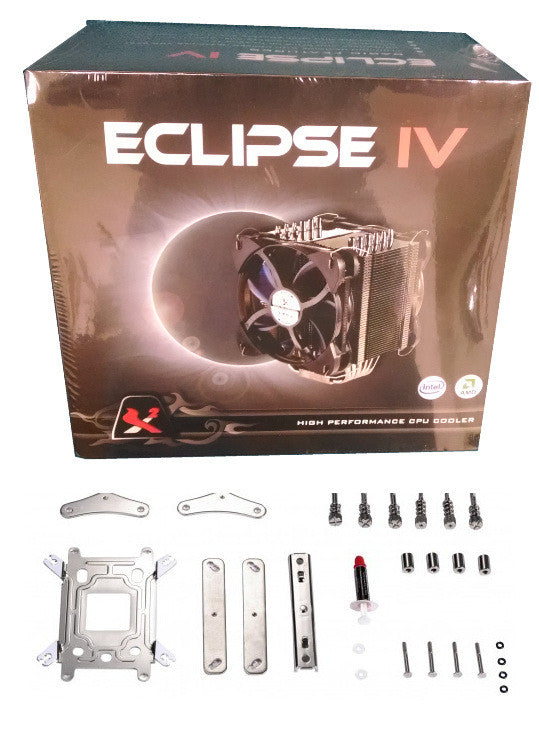

Packaging Includes
FAN / clip 1 set / Thermica SP431 Thermal Grease injection tube / manual
Packaging Type Retail color Box

Rated Current (A) 0.20
Rated Power (W) 2.4
Rated Speed (RPM) +/- 10% 800 ~ 2000
Safety Approvals CE / ROHS
Static Pressure mmH2O 2.96
Storage Temperature (°C) From -40
Storage Temperature (°C) To 70
Thermal Design Power (W) 220
Thermal Interface Material Thermica
Thermal Resistance 0.0681°C/W
Voltage DC (INPUT) 6-12V

EAN 6943051206684
