Coolerguys Single 120mm Fan Bracket Kit - Universal PC Case Mounting Bracket for Computer Cooling Fans - Perfect for Gaming PC Builds & DIY Computer Upgrades

Product Description

Coolerguys 120mm Bracket Kit with Fan for Cabinet / Home Theaters.
This does not include power supply and/or thermal controller. These items must be purchased separately. ()

Can be mounted on any side of a cabinet, where room permits, by cutting a rectangular hole approximately 130 x 130mm. Insert completed cooler assembly in hole and attach to cabinet with appropriate screws. Fans can be set to blow into or out of the cabinet depending on your needs. If you need additional information contact .

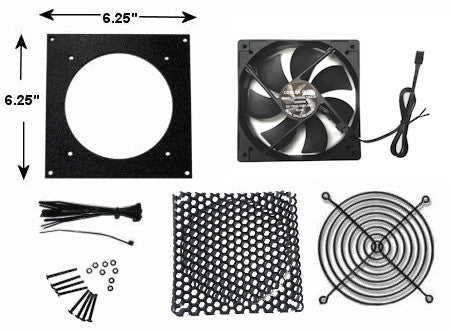

This kit includes the following:

• (1) / with ribbed 30" connector tail.

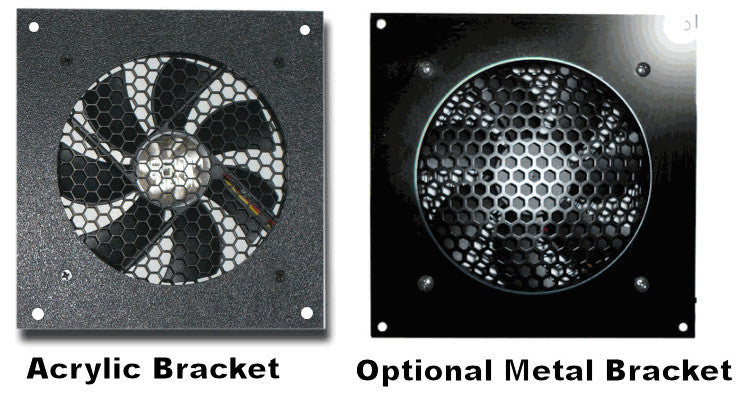

• (1) Black Fan bracket (6.25" x 6.25" x .125")
  (Choice of Acrylic or Metal) Optional Metal Bracket. (additional $2.00)
• (1)
• (1)
• Fan Screw sets to attach grill(s)
• Pack -
• (4) 1/2" black Cabinet screw(s)

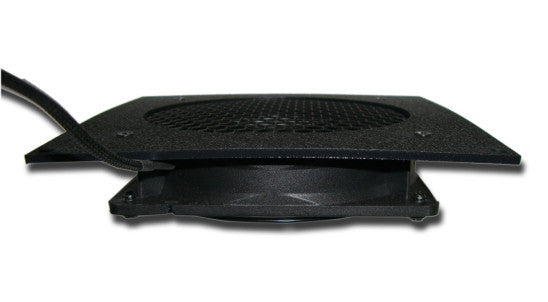

All necessary screws, cables, and fasteners to complete the unit. Completed dimensions: 6.25" x 6.25" x 1.25"

Cabinet Cutout size: 5" x 5" (130 x 130mm)
(574 kb pdf)
Additional Pictures of Install (500 kb pdf)

Sku Acrylic: 840556093640
Sku Metal: 840556102014

Also available with filter grill (click here).

We trust in our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
