Gelid Wing 12 120mm x 120mm x 25mm Silent PWM LED Fan - FN FW12BPL - High Airflow Cooling for PC Gaming, Case, and CPU Coolers - Ultra Quiet Computer Case Fan with RGB Lighting

Product Description

*END OF LIFE*

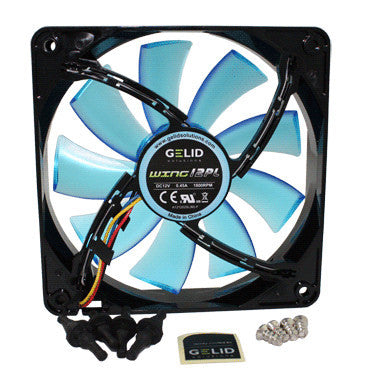

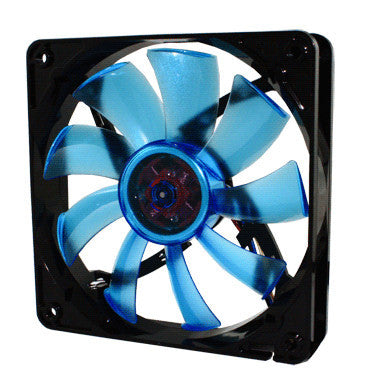

Gelid Wing 12 120x120x25mm PL Silent PWM Fan with LED FN-FW12BPL-18

840556097433

The WING 12 PL features a unique Nanoflux bearing which ensures a friction-free and silent operation. Thanks to the clever design and magnetic bearing the impeller can be detached for an easy cleaning. Additionally fan blade winglets were designed to achieve larger airflow and greater static pressure. Thank to GELID’s Nanoflux Bearing the impeller can be detached and the fan blades can be cleaned easily.

a) Key Features of Nanoflux Bearing (NFB)
The Nano-technology composite ensures lowest abrasion and extreme durability (MTTF 100’000 hours). Compared to other Magnetic bearings this technology allows the impeller to be detached and thus the fan blades can be cleaned easily.
The material of the Nanoflux bearing is self lubricating

b) Nanoflux Bearing (NFB) compared to sleeve and ball bearings
Even though conventional sleeve and ball bearings currently dominate the fan market however both have their disadvantages. While sleeve bearings have very low noise emissions and are very cost effective, they tend to leak oil; once the oil has dissipated the fan can no longer operate. Ball bearings, on the other hand, while providing longer operating life are costlier, noisier and are prone to damage.
GELID’s Nanoflux bearing uses magnetic flux to limit contact and friction between the bearing and the shaft. High precision self-lubricated material eliminates oil leakage. The result is a ultra quiet long life bearing.

PWM Control & LED Light

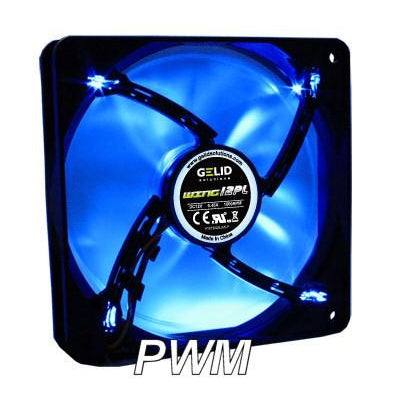

This Model includes a PWM Control which keeps the fan silent if no additional cooling is necessary but increases the fan speed whenever additional cooling is required. To give the fans a unique color, a blue LED light is embedded into the 120mm blue WING 12 PL fan

FEATURES:
Nanoflux Bearing (NFB)
Optimized Winglet Fan Blades
PWM Control
LED Light
Detachable Impeller
Long Lifetime (100'000 h MTTF at 40°C

PRODUCT SPECIFICATIONS:
Air Flow (CFM): 75.6
Bearing: Nanoflux Bearing (NFB)
Cable Length (mm): 500
Connector: 4 Pin PWM
Current (A): 0.45
DC Voltage (V): 12 V
Dimensions (mm): 120x120x 25mm
Fan Speed (RPM): 600 - 1800
LED Color: Blue
Noise Level (dBA): 10 - 26.8
Static Pressure (mmAq): 2.66
Manufacture Warranty (years): 3
Weight (g): 120
