Coolerguys Programmable Thermal Fan Controller with LED Display
(Demo Video below)
This is our latest thermal control unit that allows complete control over the temperature at which 12V devices plugged through it will turn on and off.

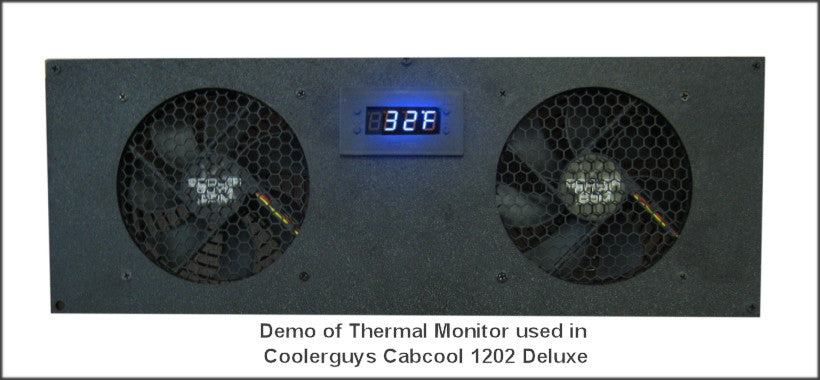

We re-designed this thermal switch especially for cabinet cooling. With all the video, audio and gaming centers converging into a single storage cabinet it is imperative that the cabinet temperature be controlled. The Programmable Thermal Fan Controller gives you complete control to set the temperature for power-on and power-off.
Check out all our Cabinet Cooling Kits that you can buy as a complete project or piece together for you individual needs.
Features:
- 24" Thermal Probe
- 4 3pin connectors
- 4pin Molex Power connector
- 4 Segment LED Display
- Option to switch between Fahrenheit and Celsius Display
- *Fully Programmable from 32-211F (0-100C) (On temperature must be at least 2F/1C above turn off temperature)
- Can handle up to 2A(2,000mA) worth of devices
- 80 mA controller draw while on
- Works with most 12v devices from fans to lights
Dimensions:
Device: 75mm x 44mm x 26mm
Cutout: 69mm x 38mm
This unit does require a power supply that has both 12v and 5v power lines, it presently works with computer power supplies and our

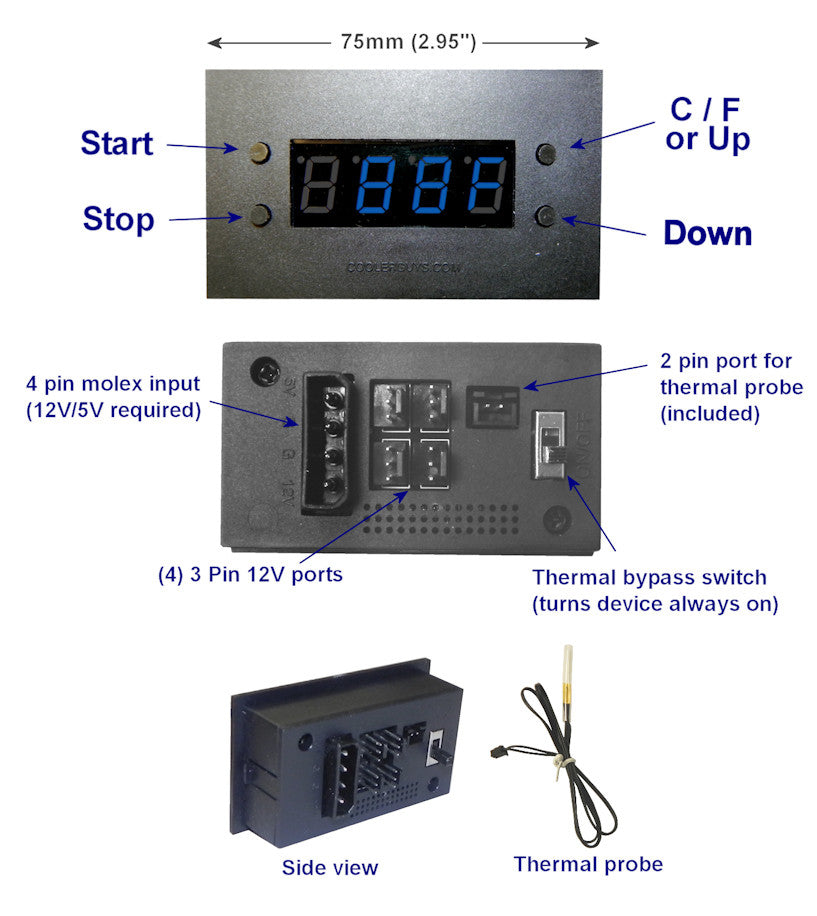

Instructions:
Set Start Temp: Press "start button" once to put unit in Start programming mode and the start up temperature will blink. Use the right Up/Down buttons to set the temperature (note: it must be at least 2F/1C higher than the turn off temperature) press "start button" again to return to the real time readout.
Set Stop Temp: Press "stop button" once to put unit in Stop programming mode and the turn off temperature will blink, use the right Up/Down buttons to set the temperature (note: it must be at least 2F/1C lower than the turn on temperature) press the "stop button" again to return to the real time readout.
C/F or Up: Will change display to and from Fahrenheit and Celsius or will increase the temperature when in the Start or Stop programming mode.
Down: Will decrease the temperature when in the Start or Stop programming mode.
Display On/Off Switch: To turn display light off (device will still function) simply press and hold the C/F Button for 5 seconds. Repeat the process to turn display back on.
(valid for units manufactured on or after December 10, 2012)
These controllers output power to 3pin 12v devices, if you want to use a device that has a 4pin molex connector you will need to buy an
*Not tested at extreme temperatures
Important Note: DO NOT REMOVE PROTECTIVE SHIELD from the thermal probe to prevent static charge from damaging the sensor.
Patent Pending
