Product Description

Cooljag CPU Cooler and Fan for Intel 1366 BOS-D2 (1366)

Application : For Intel® Core® i7, i5, i3, Core® 2 Duo & Pentium® 4 Socket 1366/1356/775

Cooljag Thermal Solutions is a renowned manufacturer of cooling devices specializing in OEM/ODM heatsinks: Copper, Aluminum, Heatpipe, Skive Fin, Staked Fin, and Extrusion Solution. Cooljag targets specific thermal problems and finds the best overall solution for heat transfer, airflow, noise and cost.

Description:
Model # BOS-D2 (1366)
· Application : For Intel® Socket 1366
· Dimensions : 123.64 mm (L) x 123.64 mm (W) x 51.4 mm (H)
· Materials : AL + Copper Core
· Weight: 490 g
· PWM Function: YES
· Thermal Grease: Dow Corning SC102

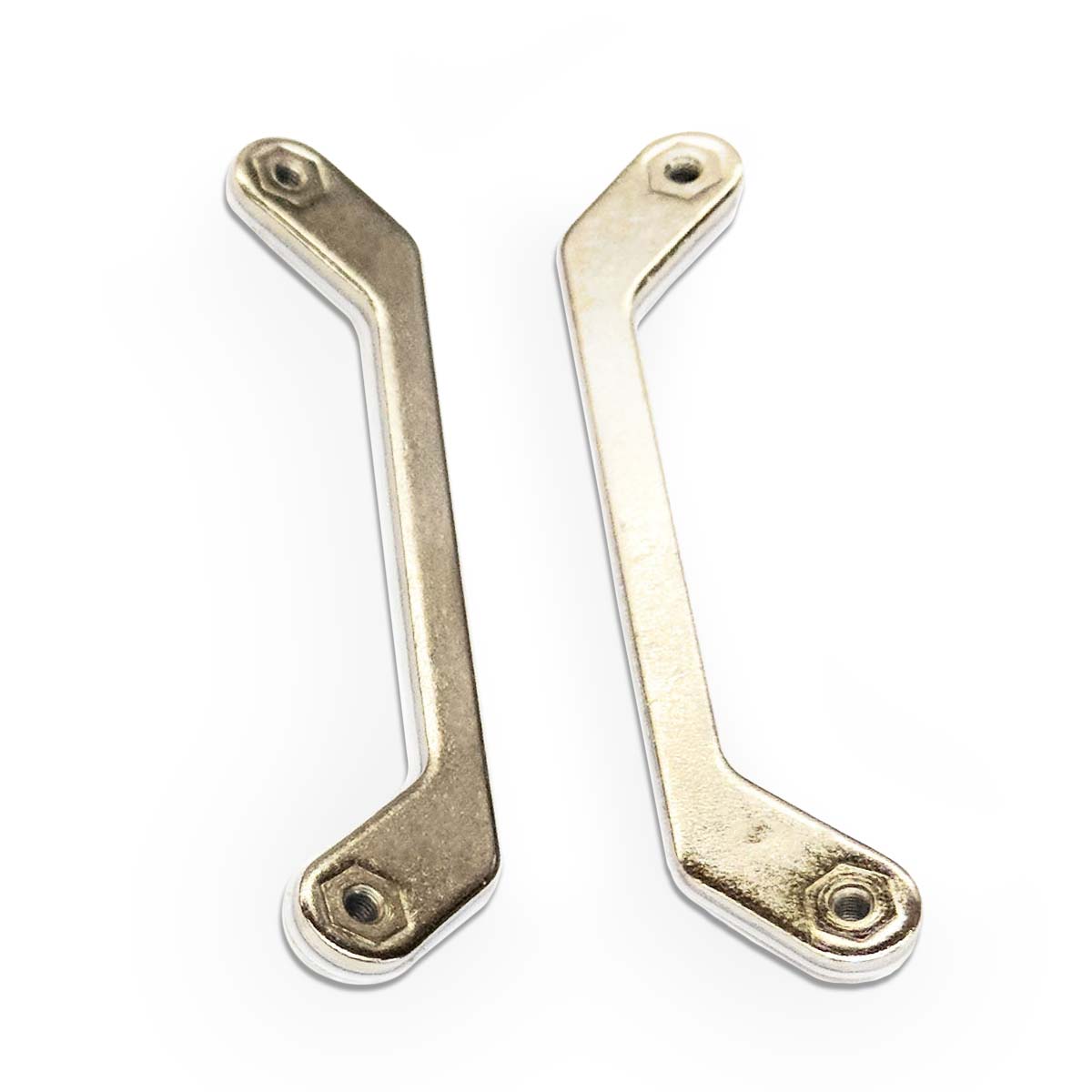

Includes Backplate Bracket

Fan Specifications:
· Fan size: 80x80x15mm
· Fan voltage: 12V
· Bearing: Dual Ball bearing
· Fan speed: 1200~ 4200 rpm
· Noise Level: 21~39.9 dBA
· Air Flow: 13.31~46.57 CFM
· Power : 1.2~ 6 W
· Static pressure : 0.33~3.99 mmH2O
· Fan connector: 4-pin
· Lead wire: UL1061 #26AWG or equivalent
· Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)

UL1061 Listed
