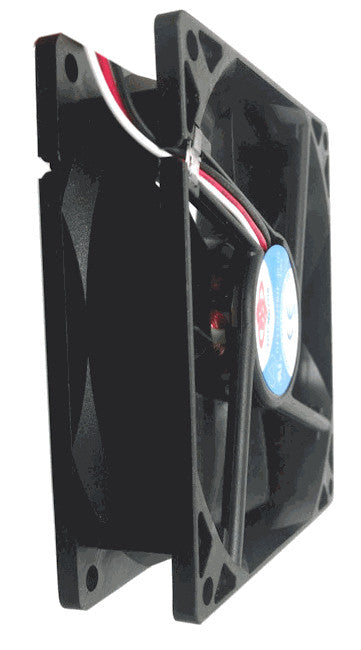

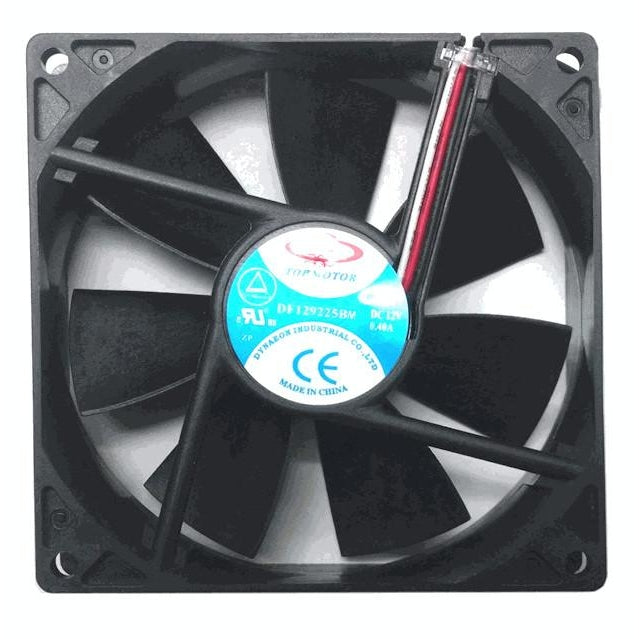

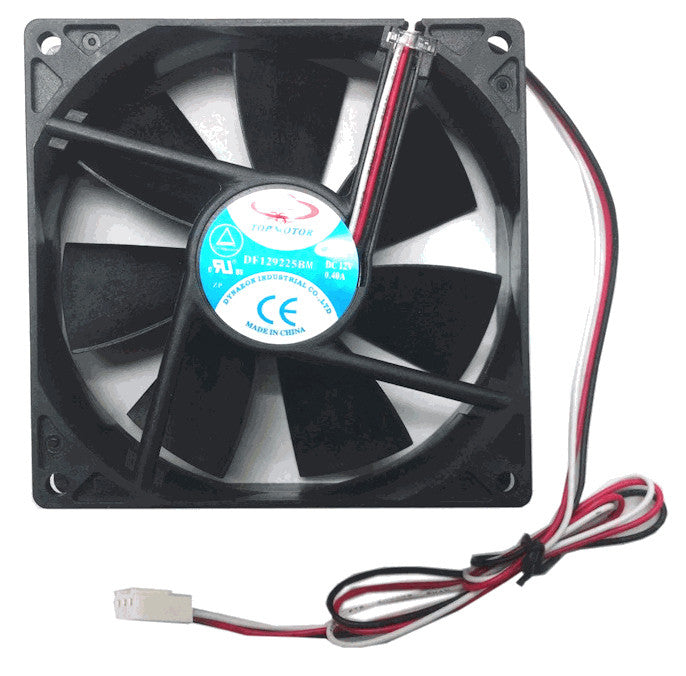

Dynatron DF129225BM 92x92x25mm 12V Medium Speed Cooling Fan - Perfect for PC Cooling, Electronics Enclosures & Server Racks

Product Description

Dynatron Top Motor 92x92x25mm 12 Volt Medium Speed Fan DF129225BM

840556104483

FEATURES:
Frame PBT+30%GF UL94V-0 (Black)
Impeller PBT+15%GF UL94V-0 (Black)
Weight 90±5 grams
Operating Temperature - 10 °C ~ + 65 °C (65 %RH)
Storage Temperature - 30 °C ~ + 70 °C (65 %RH)
Vibration Test Displacement Amplitude: 0.75mm(Equivalent 10G)
Frequency Range:10Hz55Hz/30SEC.
Linear Scanning 120 Cycle
Endurance Timer Per Axis: 30Min.
Orientation: X,Y,Z

PRODUCT SPECIFICATION:
Fan Dimensions: 92x92x25mm
Bearing Type: Dual Ball
Fan Speed: 3000 RPM
CFM: 53.57
Rated Voltage: DC 12V
Rated Current: 0.3A
Noise Level: 35.98 dBA
Connector: 3 Pin with 12" Tail
Life Expectancy-MTBF: 50,000 Hours
Safety Approval: RoHS Compliant
