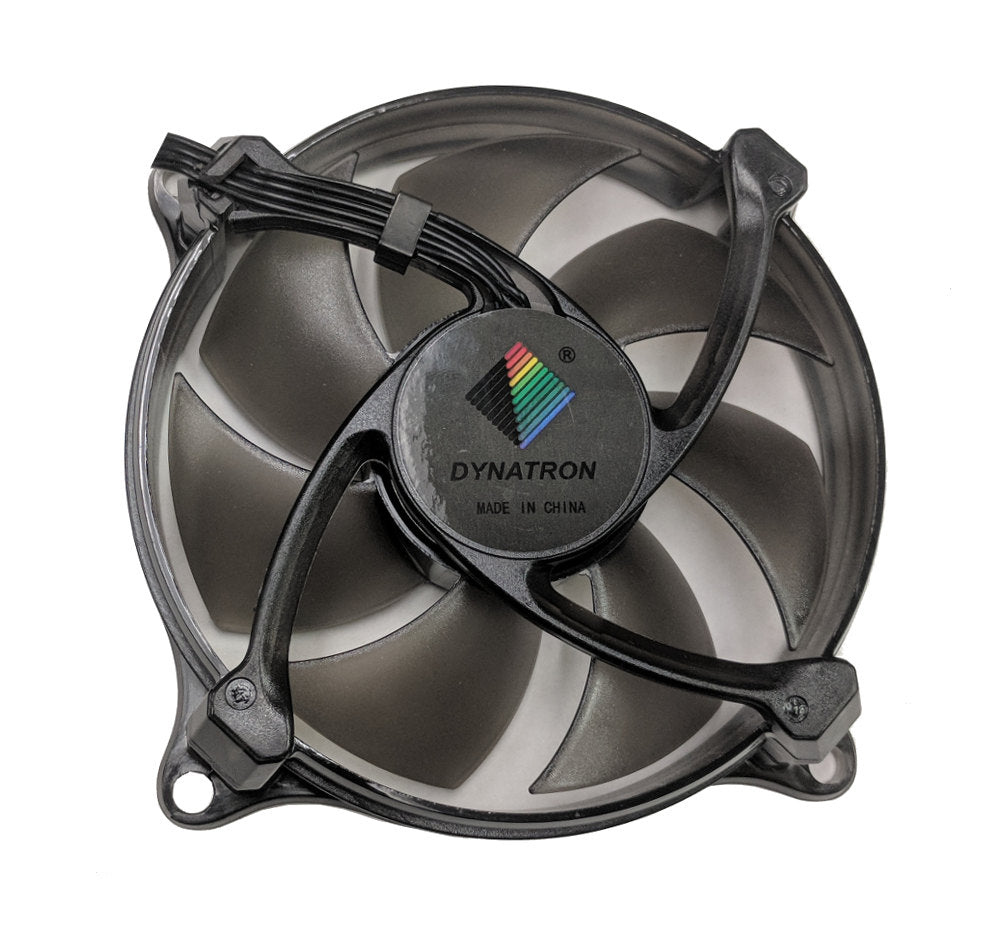

Dynatron 92mm 12V DC PWM Cooling Fan - Replacement for DF129225BM/PWM K17 - Perfect for PC Cooling, Gaming Rigs & Server Maintenance

Product Description

Dynatron 92/ 97mm 12V DC Round Fan Replacement Version DF129225BM/PWM - K17

840556003953

PRODUCT SPECIFICATIONS:
Fan Dimension: 97x97x25mm
Mounting Hole Dimensions: 83x83mm center to center
Weight: 74g
Model Number: DF129225BM-PWMG-K17
Bearing: Double-Ball
Rated Voltage: 12V

Rated Speed:
At Duty Cycle 0~20%: 1000 ± 200 RPM
At Duty Cycle 50%: 1800 ±10% RPM
At Duty Cycle 100%: 2500 ±10%RPM

Rated Input Power:
At Duty Cycle 0~20%: 0.96 W
At Duty Cycle 50%: 1.44 W
At Duty Cycle 100%: 3.0 W

Rated Airflow:
At Duty Cycle 0~20%: 17.34 CFM
At Duty Cycle 50%: 31.21 CFM
At Duty Cycle 100%: 43.36 CFM

Rated Static Pressure:
At Duty Cycle 0~20%: 0.48 mm-H2O
At Duty Cycle 50%: 1.55 mm-H2O
At Duty Cycle 100%: 3.0 mm-H2O

Rated Acoustical Noise:
At Duty Cycle 0~20%: 17.0 dBA
At Duty Cycle 50%: 24.78 dBA
At Duty Cycle 100%: 31.92 dBA

This fan is meant as a replacement for the K17 CPU cooler fan and is not the same as the standard DF129225BM fan model, it has larger mounting holes.
