Streacom FC5 Alpha Fanless Mini-ITX PC Case - Ultra Quiet Silent Computer Chassis for Home Theater & Office Workstations

Product Description

Streacom FC5 Alpha Fanless Chassis ST-FC5

Includes Ground shipping for most US locations

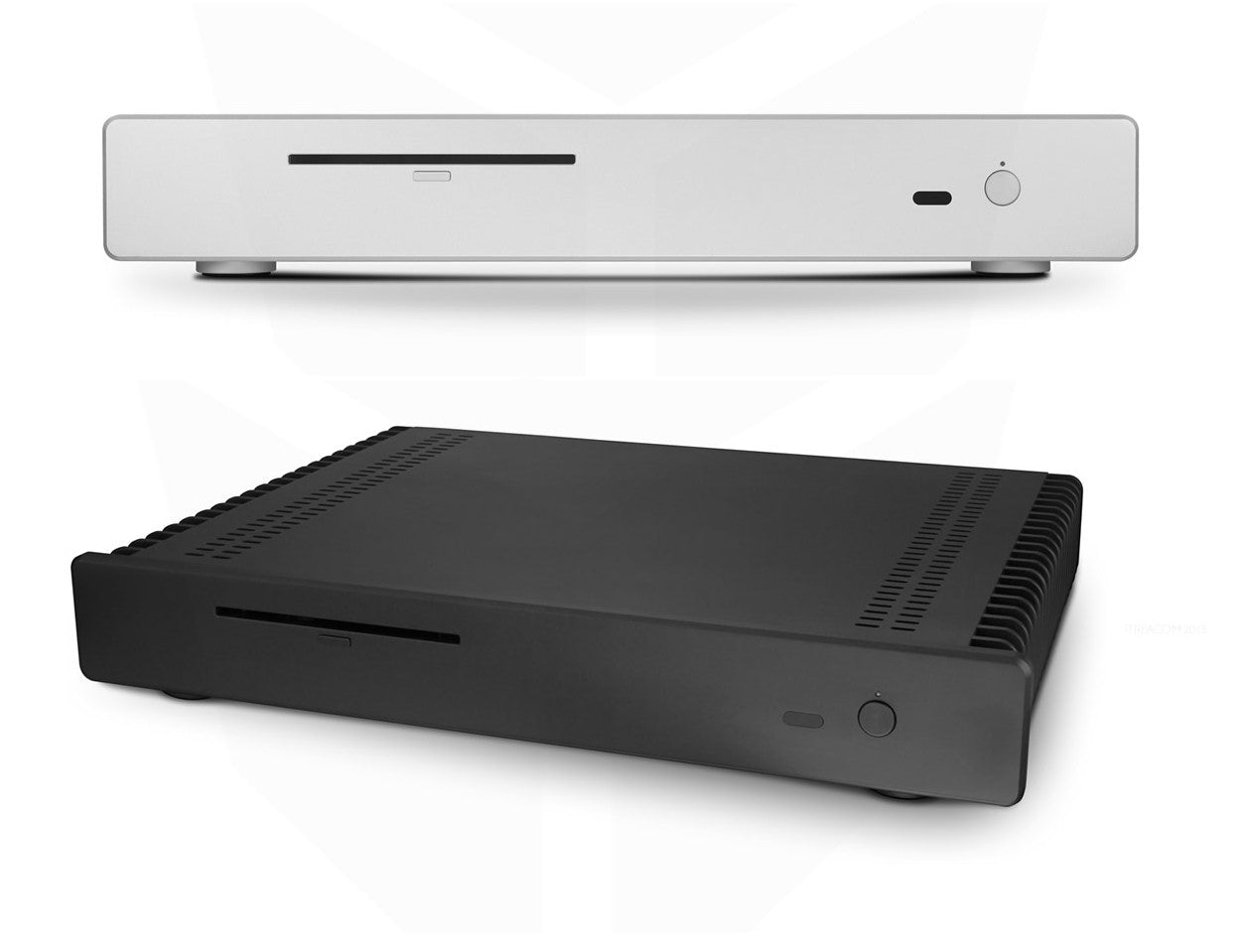

Available in (4) different configuartions.

• Silver, Extruded Aluminum, without Optical Slot # ST-FC5S ALPHA
• Black, Extruded Aluminium, without Optical slot # ST-FC5B ALPHA
• Silver, Extruded Aluminium, with Optical slot # FC5S ALPHA OPT
• Black, Extruded Aluminium, with Optical slot # FC5B ALPHA OPT

Following in its predecessors footsteps with the same minimalist styling, the FC5 Alpha brings even more refinement to this timeless sleek design.

At the heart of these improvements is the updated bottom panel which is not only more robust but has been redesigned to optimize airflow, reducing internal temperatures. Motherboard size and drive storage options also benefit from this new design, with the FC5 Alpha now accommodating an additional 2 x 2.5″ drives and a full size motherboard*1.

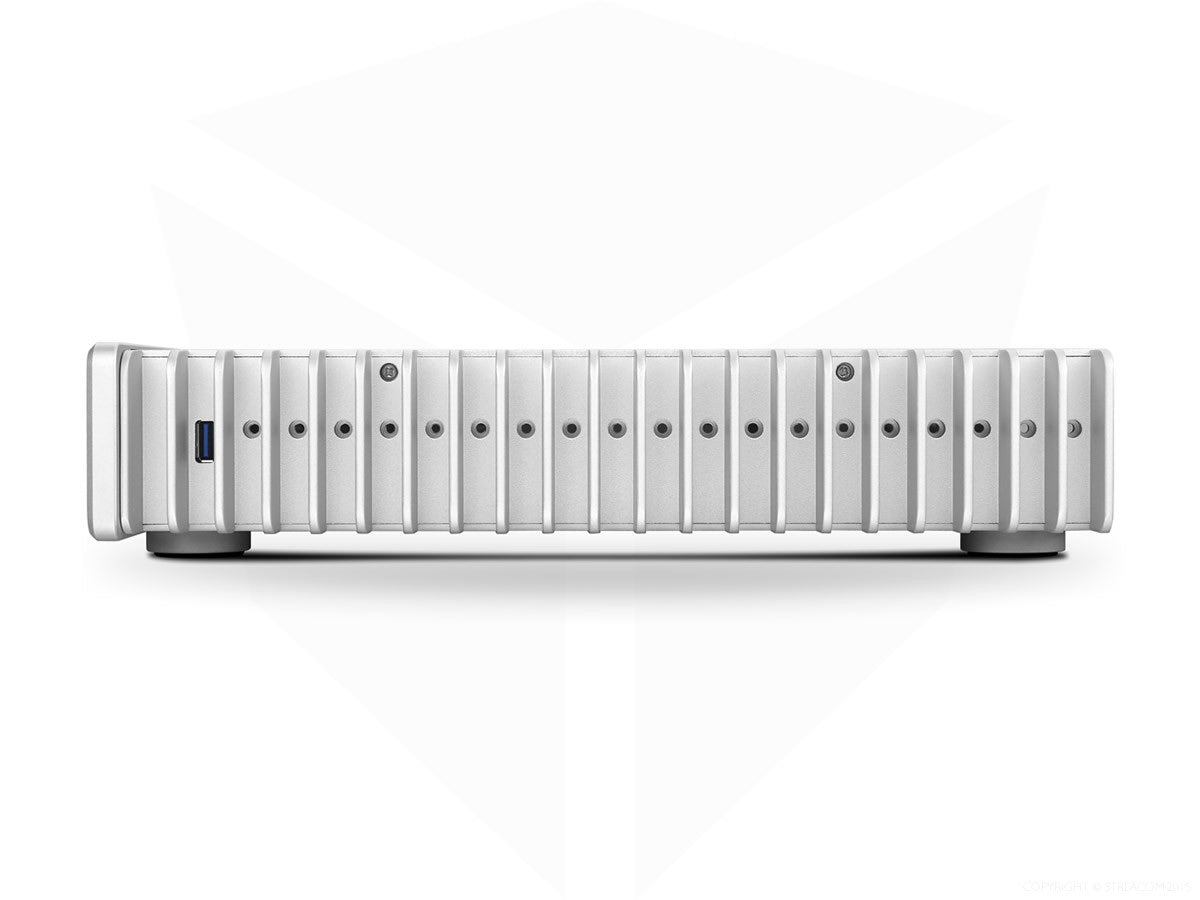

USB ports are now located on both sides of the case for easier access and balance.

As with all Alpha cases, the heatpipes and mounts have been uprated, USB3.0 is native and the power LED is now a subtle pure white.

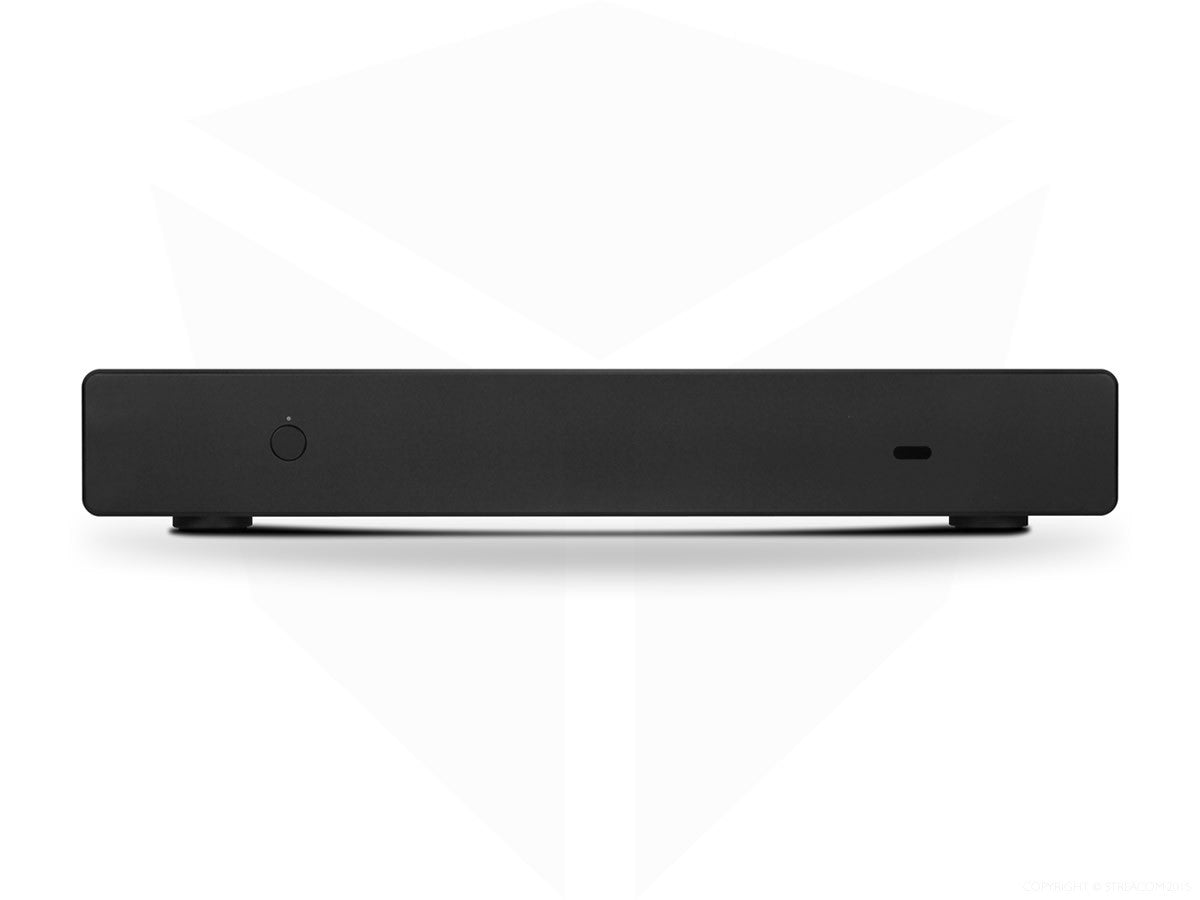

With its super thin 55m profile, premium AV design featuring a 10mm thick precision CNC’d front panel, the FC5 Alpha perfectly compliments any high end home theatre setup.

Chassis Material: Premium Grade (6063) All Aluminium, 10mm Thick Front Panel
Available Colors: Silver / Black – Sandblast Finish
Motherboard Support Mini-ITX, Micro-ATX and Full ATX
*¹ Drive Capacity: Minimum 1 x 3.5″ + 2 x 2.5″, Maximum 3 x 3.5″ or 6 x 2.5″
Optical Drive Capacity: 1 x Slim 12.7mm Slot Loading Drive (Optical Version Only)
USB Ports: 2 x USB3.0, Left & Right Side, 19/20 PIN
*² Expansion Slot: 1 x Full Height Expansion Card (Flexible Riser Required)

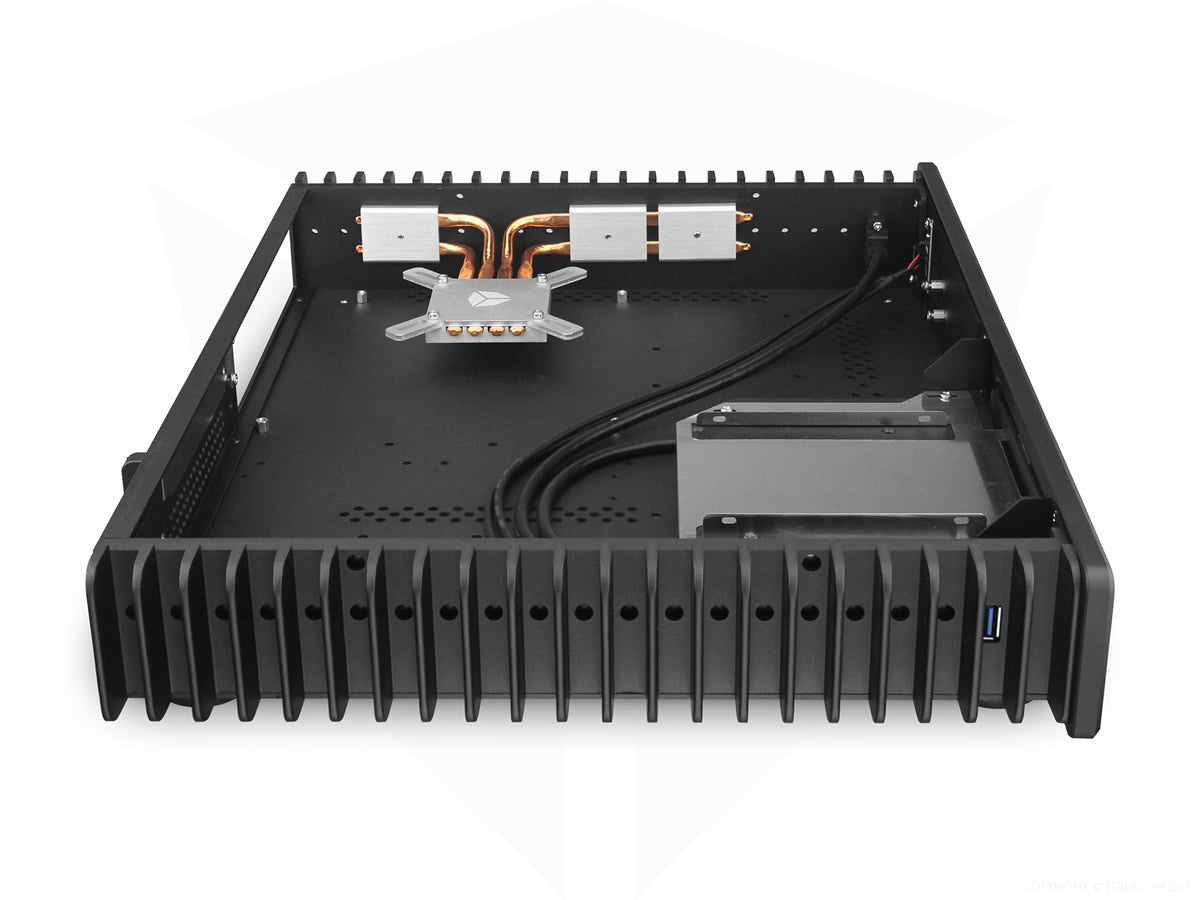

*³ Cooling: Heatpipe Direct Touch 4 Pipes – Recommended CPU TDP 65W, Max TDP 95W
*⁴ External Dimensions: 435 x 325 x 60mm (W x D x H, 69mm including feet)
Internal Dimensions: 380 x 318 x 55mm (W x D x H)
*⁵ Power Supply: ZF240 or Nano Series PSU (Not Included)
Remote Control: FLirc or IRRC Solutions (Not Included)

*¹ Depending on hardware configuration, i.e. motherboard size
*² Limited to Half Height Cards when using the ZF240 PSU
*³ As with any passive cooling solution, environmental conditions will have an impact on the performance. A TDP of 95W is only recommended when the chassis is placed in a location with adequate air flow and moderate ambient room temperature
*⁴ The front panel is wider that the rest of the body by 15mm, making it 450mm wide
*⁵ See notes for use with OPTICAL version

.
