Streacom F1C Evolution PC Case - Silver or Black (ST F1C EVO / ST F1CWS EVO) | Compact Mini-ITX Chassis for Home Theater & Gaming PC Builds

Product Description

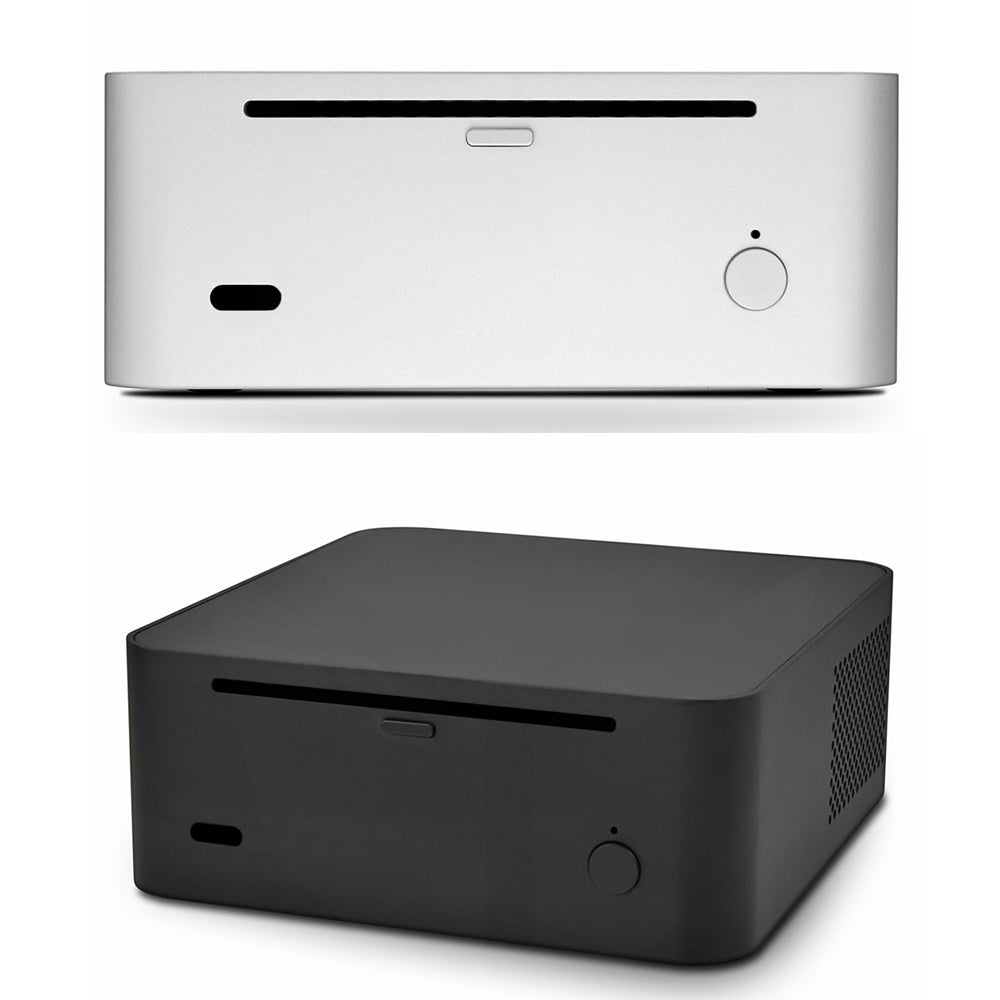

Streacom F1C Evolution Silver or Black #ST-F1C EVO / ST-F1CWS EVO

Without Optical Slot (WS)
840556004189 Silver ST-F1CSWS EVO 80
840556004172 Black ST-F1CBWS EVO 80

With Optical Slot
840556004165 Silver ST-F1CS EVO 80
840556004158 Black ST-F1CB EVO 80

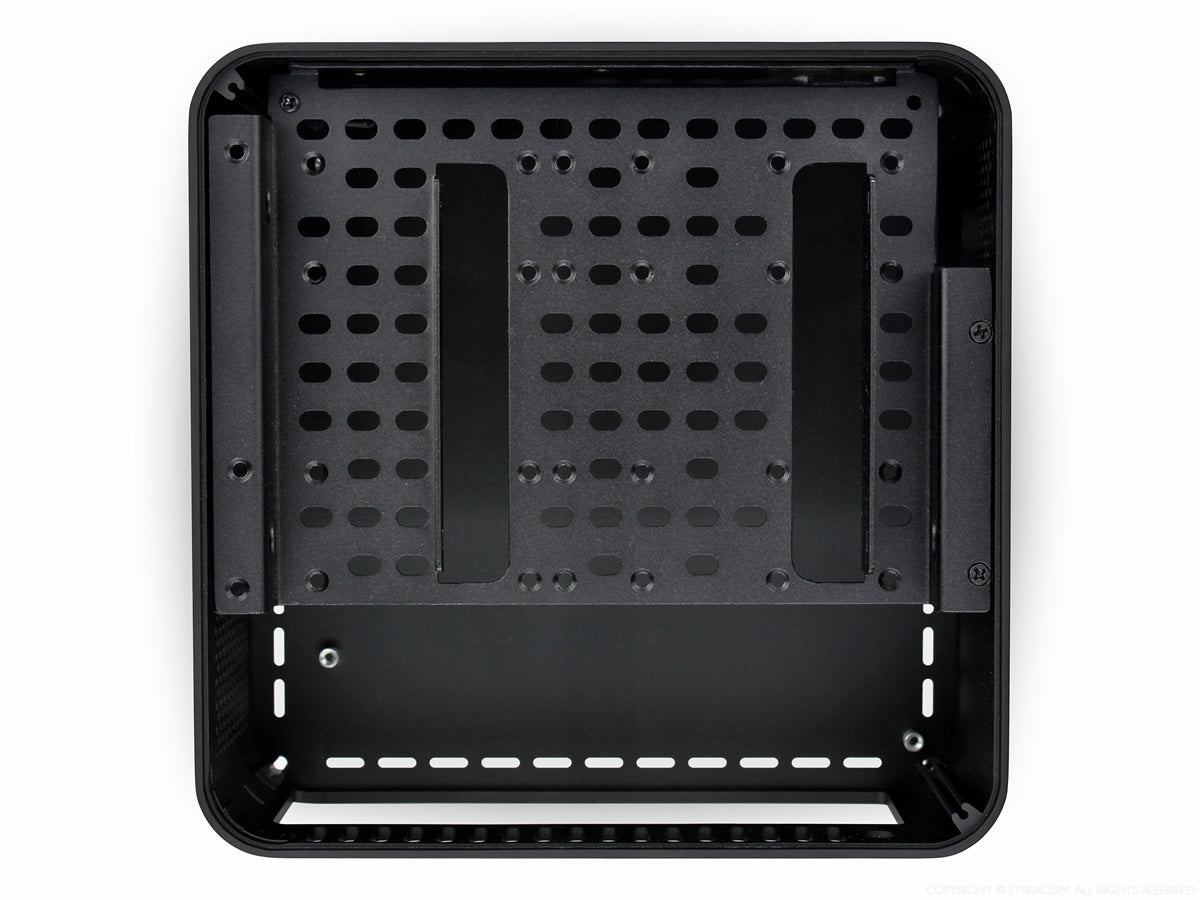

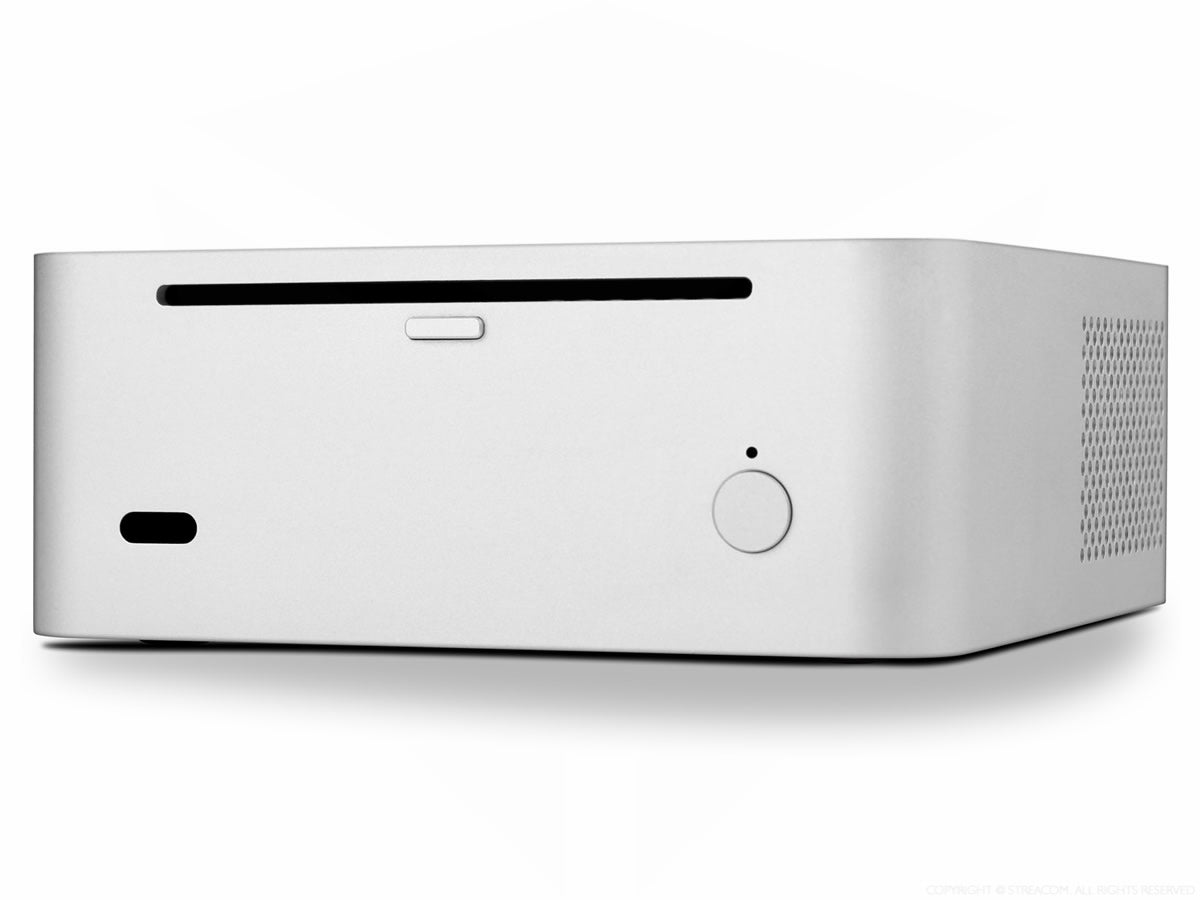

Featuring the same ultra-compact design as the original F1C, the F1C Evo has been created to improve compatibility and make assembly easier than ever. The one piece extruded aluminium body shares the same sandblast finish as the rest of the Evo range along with other refinements such as wider IR window, soft touch power button, universal eject button and a re-engineered top panel assembly system. The re-designed internals now allow for an additional 2.5” drive and larger fan whilst still maintaining the minimalist and tiny footprint that allows the F1C Evo to fit perfectly into any environment.

The ‘WS’ version of the F1C Evo features all the same enhancements as the current F1C Evo, an ultra-compact design, improved compatibility and easy assembly but without the optical drive slot. This extra space now allows for a 3.5″ hard drive and makes a perfect compact system for users that no longer use optical media. The one piece extruded aluminium body shares the same sandblast finish as the rest of the Evo range along with other refinements such as wider IR window, soft touch power button, and a re-engineered top panel assembly system.

PRODUCT SPECIFICATIONS (F1C EVO CHASSIS)
Material: All aluminum, 3.5mm thick, once piece extruded body
Available Colors: Silver / Black, Sandblast finish
Motherboard Support: Mini ITX
Hard Drive Bays: 3 x 2.5″

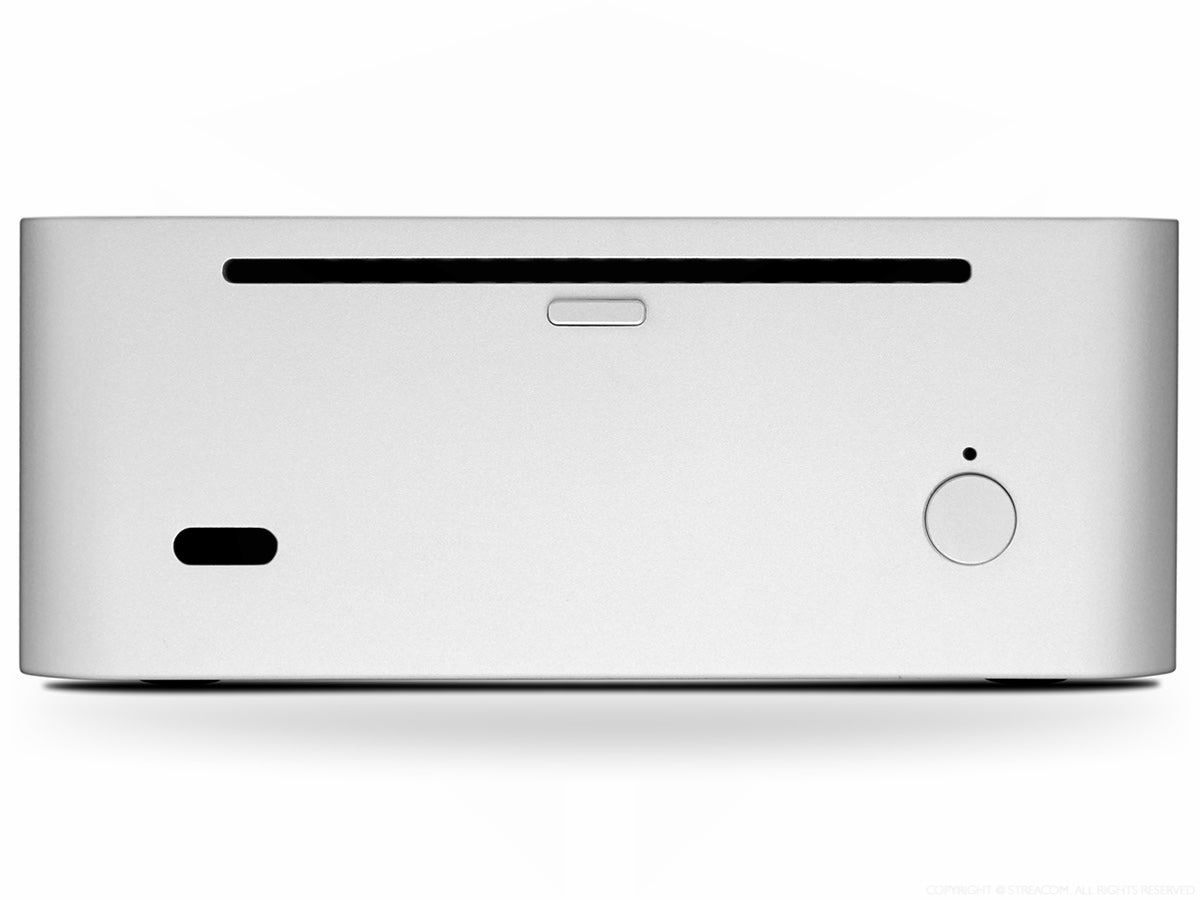

Optical Drive Bays: 1 x Slim slot loading drive, universal eject button
Cooling: 1 x 40x40x10mm or 1 x 60x60x10mm Fan (not included)
Max CPU cooler height: 34mm without 2nd SSD (24mm with 2nd SSD installed)
Dimension: 197 × 197 × 77mm (W x D x H)
Power Supply: nanoPSU & AC Adapter (not Included)
Remote Control: MCE Compatible IR Receiver & Remote (not Included)
Net Weight: 1.6KG

PRODUCT SPECIFICATIONS (F1CWS EVO CHASSIS):
Material: All aluminum, 3.5mm thick, once piece extruded body
Available Colors: Silver / Black, Sandblast finish
Motherboard Support: Mini ITX
Hard Drive Bays: 3 x 2.5″ or 1 x 3.5″ + 1 x 2.5″
Optical Drive Bays: None
Cooling: 1 x 40x40x10mm or 1 x 60x60x10mm Fan (not included)
Max CPU cooler height:
          With 3.5″ HDD Installed: 26mm
          With 2nd 2.5″ SSD Installed: 42mm
          With no 2nd 2.5″ SSD Installed: 54mm
Dimension: 197 × 197 × 77mm (W x D x H)
Power Supply: nanoPSU & AC Adapter (not Included)
Remote Control: MCE Compatible IR Receiver & Remote (not Included)
Net Weight: 1.6KG
