Dynatron Q6 3U Active Air Cooler - High Performance Server CPU Cooler for Rackmount Systems | Perfect for Data Centers & Network Cabinets

Product Description

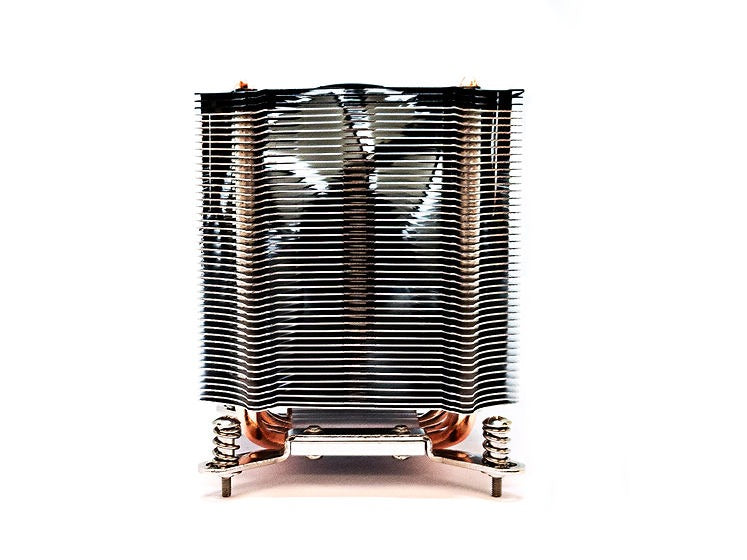

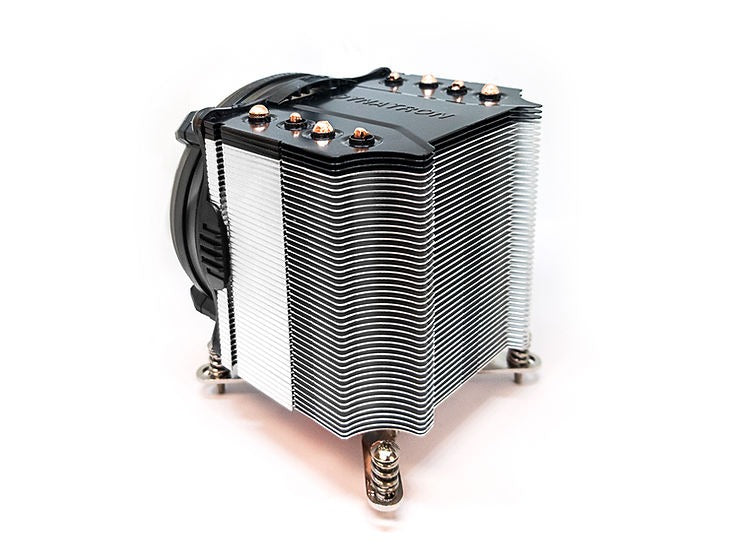

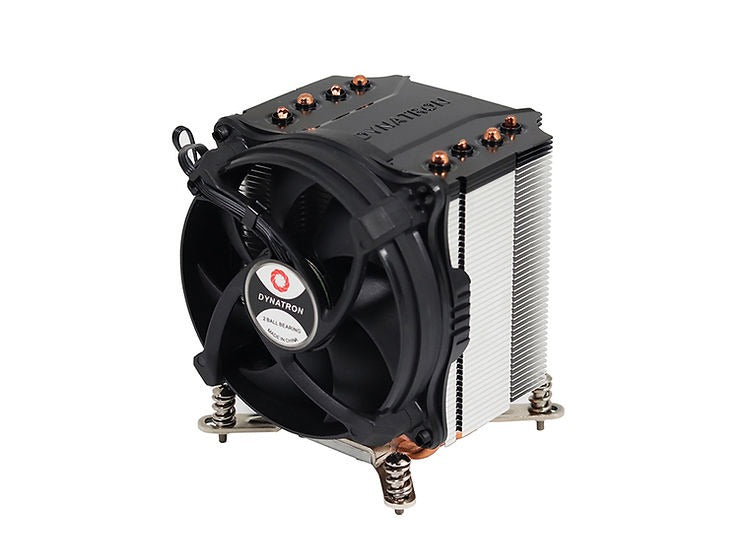

Dynatron Q6 3U Active Air Cooler

840556077354

PRODUCT SPECIFICATIONS:
CPU Support: Intel Core 12th -15th Gen
CPU Socket: LGA 1851/1700
Screw Type: M3
Installation Torque: 5-7 in-lb
Solution: 3U and Up, Workstation
Dimensions: 91.0 x 91.0 x 110.0 mm
Weight: 539 ± 5 g
Material: Aluminum Fins, 4x Heat Pipes with H.C.C. Technology
Fan Dimension: 92 x 25 mm
Speed:
At Duty Cycle 0~20%: 1600± 200 RPM
At Duty Cycle 50%: 2850±10% RPM
At Duty Cycle 100%: 6000 ±10% RPM
Rated Voltage: 12V
Bearing: 2 Ball Bearing
Power:
At Duty Cycle 0~20%:0.72 W
At Duty Cycle 50%: 1.48 W
At Duty Cycle 100%: 9.60 W
Air Flow:
At Duty Cycle 0~20%: 21.45 CFM
At Duty Cycle 50%: 48.83 CFM
At Duty Cycle 100%: 107.25 CFM
Noise Level:
At Duty Cycle 0~20%: 16.00 dBA
At Duty Cycle 50%: 33.20 dBA
At Duty Cycle 100%: 50.40 dBA
Air Pressure:
At Duty Cycle 0~20%: 0.68 mm-H2O
At Duty Cycle 50%: 5.34 mm-H2O
At Duty Cycle 100%: 17.10 mm-H2O
Lead Wire Pin Out:
Pin#1- Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)
Life – Continuous operating under normal temperature (40 °C or 104 °F):
70,000 Hours
