Noctua NF-P14 FLX 140mm Premium Quiet PC Cooling Fan - Ultra Low Noise, High Airflow for Desktops, Gaming PCs & Workstations - Perfect for Silent Builds & High-Performance Cooling

Product Description

Noctua 140x140x25mm Quiet PC Fan  NFP14FLX

840556091653

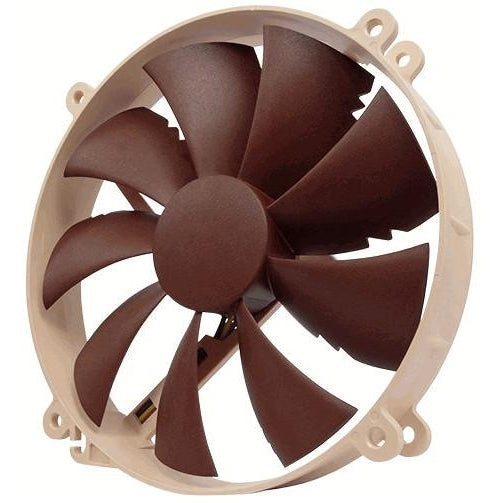

Following in the footsteps of the successful NF-P12, the NF-P14 is a highly optimized, premium quality 140mm fan with Vortex-Control Notches for superb quietness and outstanding aerodynamic efficiency. Metal reinforcements, SCD2 technology and Noctua’s premium grade SSO-Bearing guarantee exceptional running smoothness and excellent long-term stability. Using the same hole-spacing as common 120mm fans and achieving a superior airflow/noise ratio, the NF-P14 is ideal for upgrading 120mm CPU or case fans.

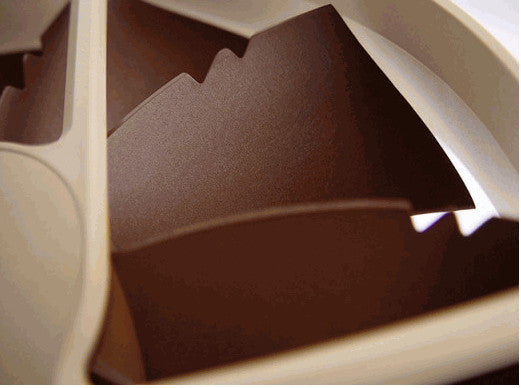

140mm Impeller with Vortex Control Notches
Thanks to its psycho-acoustically optimised nine blade impeller with staggered Vortex-Control Notches, the NF-P14 combines superb quietness with exceptional airflow and static pressure.

Metal Reinforcements
Both the impeller hub and the bearing shell of the NF-P14 are metal reinforced in order to achieve ultimate manufacturing precision, high durability and vibration-free running.

Round frame with 120mm mounting holes
Using a round frame with the same hole-spacing as common 120mm fans and producing more airflow due to its larger diameter, the NF-P14 is a perfect upgrade for 120mm CPU or case fans. Thanks to the supplied adaptors, the NF-P14 also fits common 140mm mounting holes. May not fit all 120mm case fan sites

3 speed settings for full flexibility
Providing 1200, 900 and 750 rpm speed settings via the supplied Low-Noise and Ultra-Low-Noise Adapters, the NF-P14 FLX (Flexibility) can be fine-tuned for superior airflow or maximum quietness.

Smooth Commutation Drive 2
DThe latest version of Noctua’s advanced SCD drive system ensures superb running smoothness by eliminating torque variations and switching noises.

SSO-Bearing
Noctua’s time-tested SSO-Bearing technology has become synonymous with supremely quiet operation and exceptional long-term stability.

PRODUCT SPECIFICATION:

Fan Size: 140x140x25mm
Bearing: SSO-Bearing
Blade Geometry NF-P14 Blade Design with VCN
Rotational Speed: (+/- 10%) 1200 RPM
Rotational Speed with L.N.A.: (+/- 10%) 900 RPM
Rotational Speed with U.L.N.A.: (+/- 10%) 750 RPM
Airflow: 110,3 m³/h
Airflow with L.N.A.: 83,7 m³/h
Airflow with U.L.N.A.: 71,2 m³/h
Acoustical Noise: 19,6 dB(A)
Acoustical Noise with L.N.A.: 13,2 dB(A)
Acoustical Noise with U.L.N.A.: 10,1 dB(A)
Static Pressure: 1,29 mm H2O
Static Pressure with L.N.A.: 0,77 mm H2O
Static Pressure with U.L.N.A.: 0,53 mm H2O
Input Power: 1,2 W
Input Current: 0,1 A
Voltage Range: 12 V
MTBF: > 150.000 h
