Dynatron R18 1U Server Active CPU Cooler - High Performance Cooling Solution for Data Centers & Rack Servers

Product Description

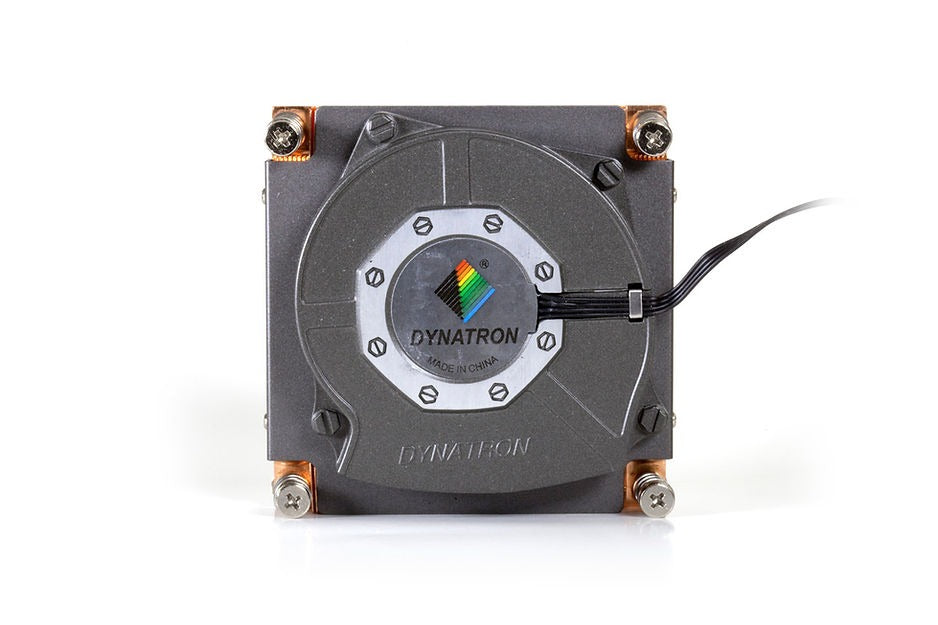

Dynatron R18 1U Server Active Cooler

840556076651

Keep your Intel Sandy Bridge-EP/EX processor running cool with the Dynatron R18 1U Server Active Cooler. This 1U server-specific cooler features an aluminum blower with PWM function and a copper heatsink, capable of handling up to 165 watts of heat for optimal performance.

PRODUCT SPECIFICATIONS:

• CPU Support: Intel® Sandy Bridge - EP / EX Processor
• CPU Socket: Socket LGA 2011
• Solution: 1U Server
• Dimensions: 90.0 x 90.0 x 27.7mm
• Lead Wire Pin Out: Pin1- Ground(-)

  Pin2- Power (+)
  Pin3- Signal (Tachometer output)
  Pin4- PWM Control

• Fan Dimension: Ø80 x 15 mm
• Speed: At Duty Cycle 0~20%: 1000±10% RPM

  At Duty Cycle 50%: 3500±10% RPM
  At Duty Cycle 100%: 6000 RPM Min


• Bearing Type: Ball Type, Double
• Rated Voltage: 12 VDC
• Power: At Duty Cycle 0~20%: 0.60W

  At Duty Cycle 50%: 3.84W
  At Duty Cycle 100%: 14.4W


• Air Flow: At Duty Cycle 0~20%: 6.5 CFM

  At Duty Cycle 50%: 11.2 CFM
  At Duty Cycle 50%: 11.2 CFM


• Noise Level: At Duty Cycle 0~20%: 21.5 dBA

  At Duty Cycle 50%: 43.0 dBA
  At Duty Cycle 100%: 55.8 dBA


• Air Pressure: At Duty Cycle 0~20%: 2.27 mm-H2O

  At Duty Cycle 50%: 18.56 mm-H2O
  At Duty Cycle 100%: 54.5 mm-H2O


• Material: Copper Heat Sink with Skiving Fins
• Weight: 480g ± 5g

[Dynatron R18 1U Active Air Cooler] Spec Sheet
