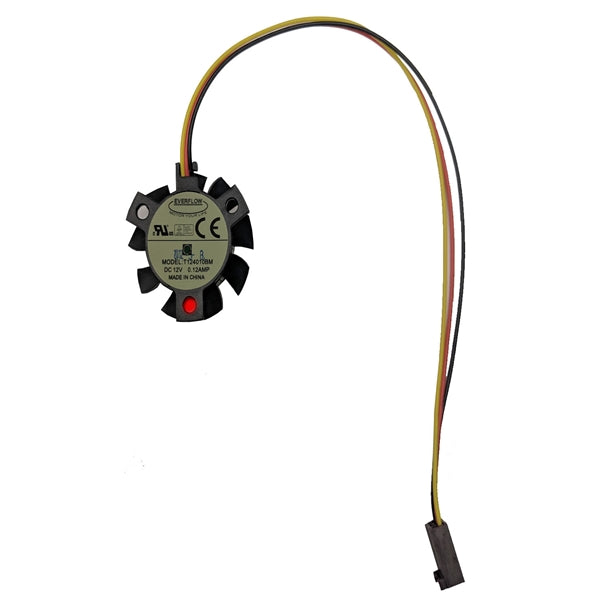

Everflow T124010BM 40x10mm 12V DC Cooling Fan with 3-Pin Connector - Perfect for PC Cooling, Electronics & DIY Projects

Product Description

Everflow Frameless 40x10mm 12 volt DC Fan 3 wire/3 pin connector T124010BM

840556070658

PRODUCT DESCRIPTIONS:
Fan size: 40x40x10mm
Fan voltage: 12V
Starting voltage: 7V
Operating voltage: 7~13.2V
Current: 0.12 Amp (Max. 0.17 Amp)
Bearing: Dual Ball bearing
Fan Speed: 6000 rpm
Noise Level: max. 29 dBA
Air Flow: 4.64 CFM
Power: 1.44 W (Max. 2.04W)
Static pressure: 2.87 mmH2O
Life Expectancy: 50,000 hours @40C with 65% RH
Fan connector: 3-pin
Weight: 12g
Operating Temperature: -10C~70C
Storage Temperature: -20C ~75C
Operating Humidity: 5~90 % RH
Storage Humidity: 5~95 % RH
Lead wire: UL1007 #28AWG
Connector: Molex 2510 -3P or equivalent
Pin Assignment: Pin 1 Black (GND), Pin 2 Red (PWR), Pin 3 Yellow (SGN)

CERTIFICATIONS:
CE, UL, TUV
