CG CabCool 1201 Single 120mm Cabinet Cooling Fan Kit with Thermal Control - Perfect for Home Theaters, Gaming PCs & Electronics Cabinets

Product Description

CG CabCool 1201 Single 120mm Fan Cooler Kit for Cabinet / Home Theaters w/Thermal Control

Pre-set 840556082491 / LED Programmable 840556090908

This is a *kit for a single fan unit (6.25" x 6.25" x .125") to cool your cabinet or multimedia center.

Can be mounted on any side of a cabinet, where room permits, by cutting a rectangular hole approximately 5" x 5" (130 x 130mm). Insert completed cooler assembly in hole and attach to cabinet with appropriate screws. Fans can be set to blow into or out of the cabinet depending on your needs. If you need additional information

DC 12V fans that are powered by our

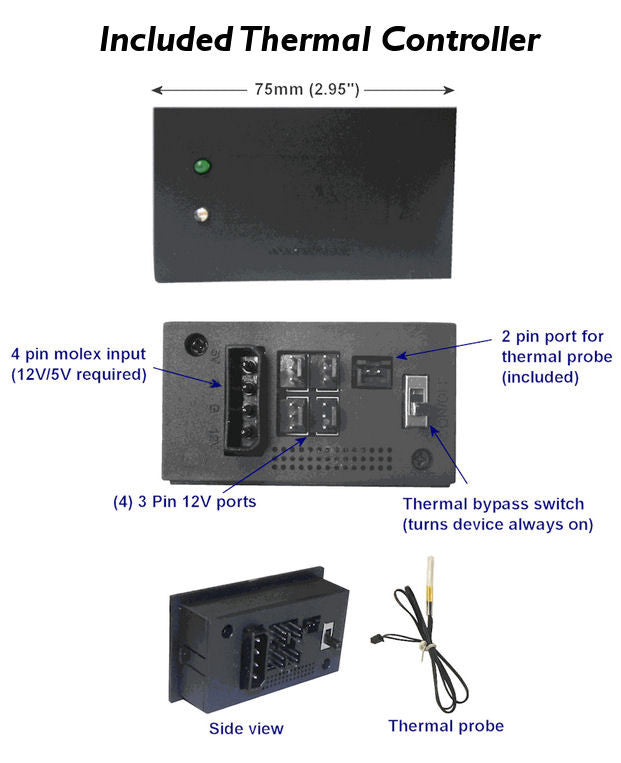

Choice of Thermal Controller:
Built in thermal sensor. Controls power to your fans to cool when you need it. With external temperature probe wire for spot placement. On @ 88°F Off @ 81°F (+/- 1°)

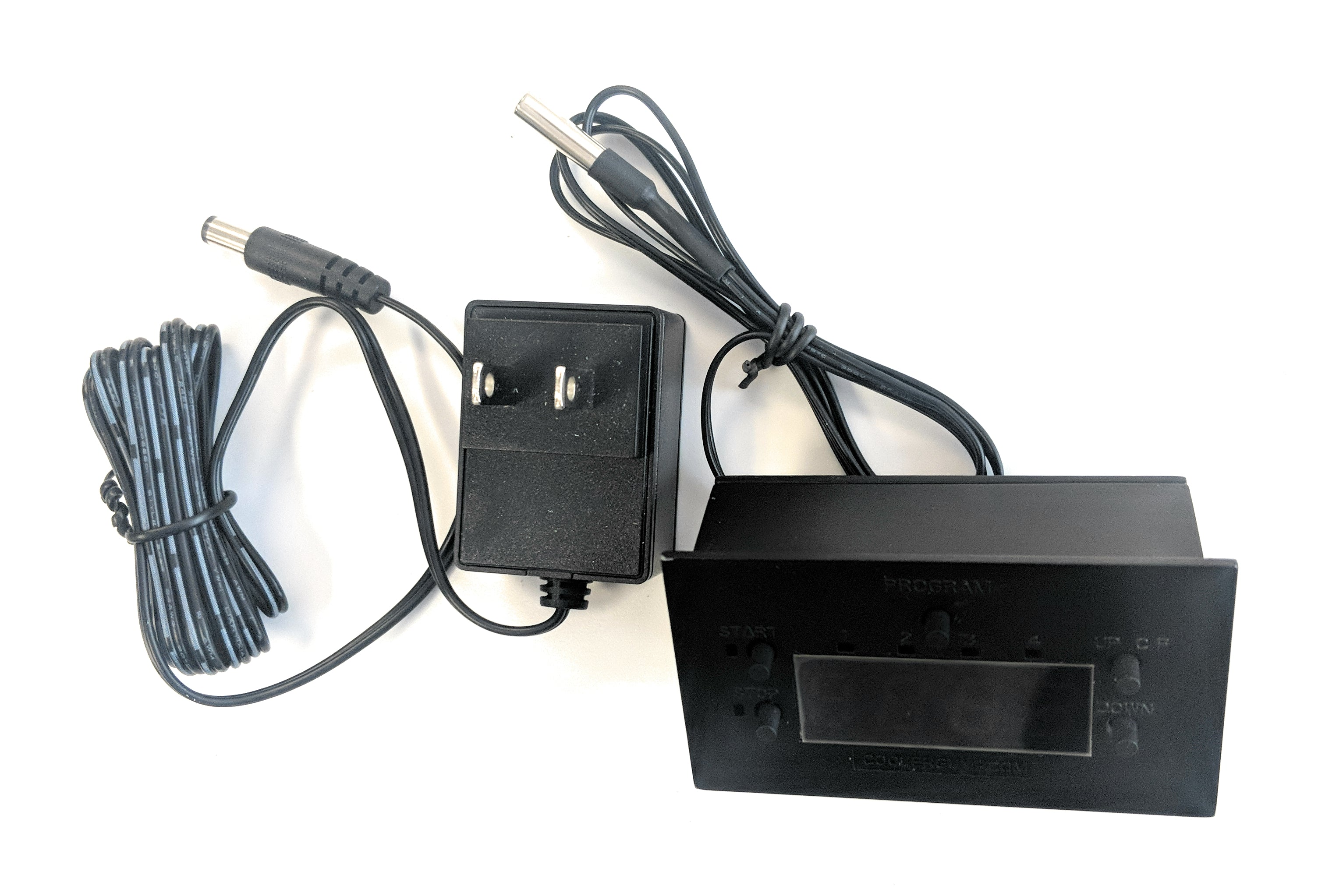

Optional upgrade (additional $15.00):
This includes a shelf mount bracket for optimal placement.

Cooling Unit includes the following:
(1)
(1)
(1) Black Acrylic Fan bracket (6.25" x 6.25" x .125")
(1) or optional LED Controller
(1) Black 120mm Honeycomb Mesh Fan Grills
(1) Black 120mm Fan Grills
(8) Fan nuts and bolts
Optional controller bracket-shelf mount(comes standard with Led controller) - Shelf mount bracket
(4) #6 - 1/2" black Cabinet screw

All necessary screws, cables, and fasteners to complete the unit.

PRODUCT SPECIFICATIONS:
Completed Dimensions: 6.25 x 6.25
Cabinet Cutout size: 5" x 5" (130 x 130mm)

PRODUCT SPECIFICATIONS:
Fan Speed: 1200 RPM
Operation Voltage: 6.5~13.8 Volts
Input current: 0.30 Amp MaxThermal C
Operation temperature: -10 to +65 C
Storage temperature: -40 to +70 C
Airflow: 46 CFM
Noise Level: 20.4 dBA

General Instructions for CabCool Cabinet Cooler Kits (574 kb pdf)
http://site.coolerguys.com/Product_Images/instruction_CG_cabcool_cooler.pdf

NOTE: This is a kit and some assembly is required.



We trust in our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
