Top Motor 40x40x28mm 12V DC Cooling Fan with PWM Control - High Performance for PC, Electronics, and DIY Projects

Product Description

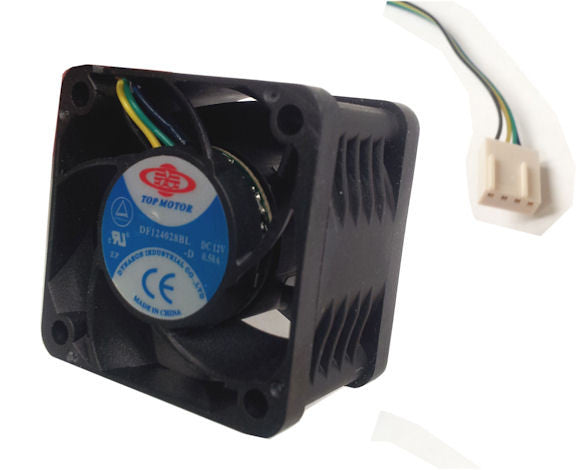

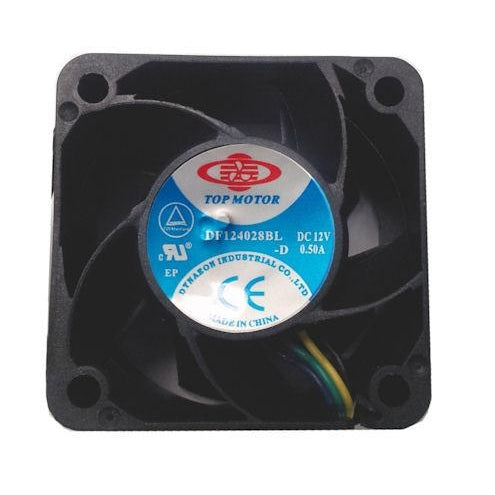

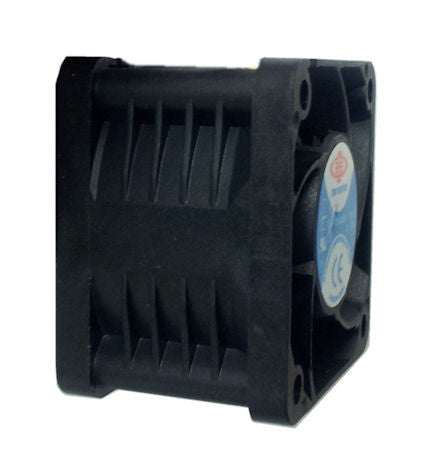

Top Motor 40x40x28mm 12 Volt -DF124028BL-PWMG

840556101611

PRODUCT SPECIFICATION:
DC Fan Size:  40x40x28mm
Bearing Type: Dual Ball Bearing
Fan Speed:  1100 to 9000 RPM ±10% Low Speed
Noise Level: 45 DBA
Rated Voltage:  12V, 0.50A
Airflow: 16.32 CFM
Connector: 4 Pin with 8" tail

MANUFACTURE DATA:
Frame: PBT+30%GF UL94V-0 (Black)
Impeller: PBT+15%GF UL94V-0 (Black)
Weight: 37±5 grams
Operating Temperature:10 °C ~ + 65 °C (65 %RH)
Storage Temperature: 30 °C ~ + 70 °C (65 %RH)
Vibration Test Displacement Amplitude: 0.75mm(Equivalent 10G)
Frequency Range:10Hz55Hz/30SEC.
Linear Scanning: 120 Cycle
Endurance Timer Per Axis: 30Min.
Orientation: X,Y,Z.

NOTE:  PWM Fans are not variable speed control fans on their own.  An integrated circuit varies the speed and airflow of a fan using a pulse-width-modulated (PWM) voltage in response to temperature or system commands send typically by a computer motherboard. You can use them to run at full speed from an external supply if you adapt the plug.

RoHS Compliant
