80x80x25mm 24V Medium Speed Cooling Fan - Mechatronics F8025M24B1 for PC, Electronics & Industrial Equipment Cooling

Product Description

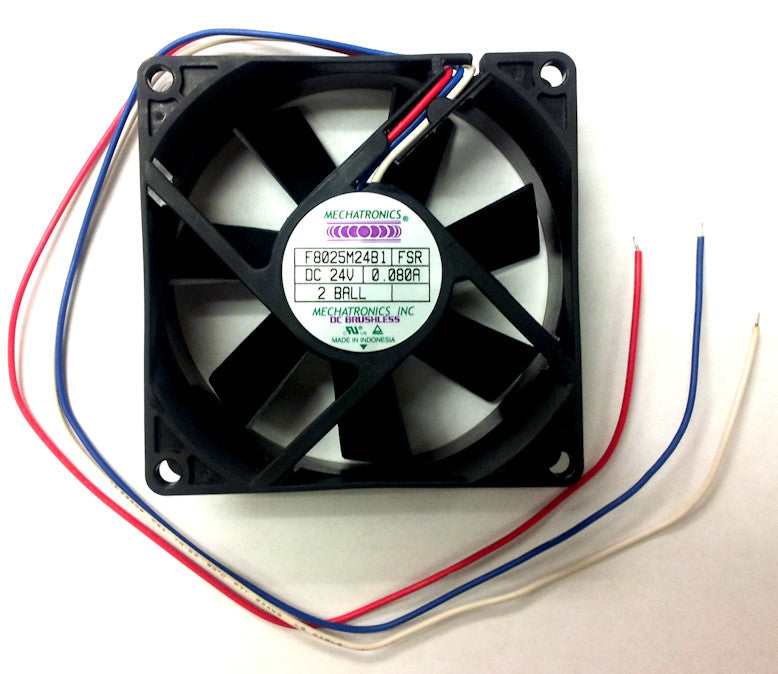

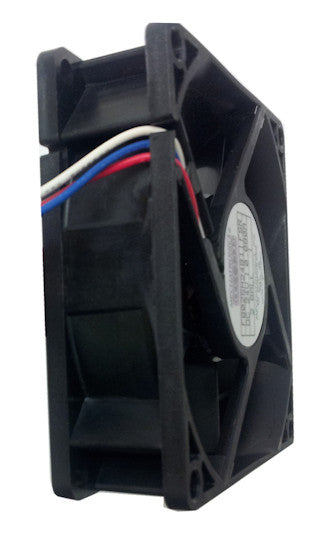

Mechatronics 80x80x25mm 24 Volt Medium Speed Fan F8025M24B1

840556001591

FEATURES:
Locked Rotor Alarm Signal
Thermostat Speed Control
High Pressure Impeller Design
With RPM Sensor
Construction: UL94V-0 PBT impeller & frame
Connection: AWG 24, UL1007 lead wires
Protection: Thermal
Options: Tachometer Output Signal

PRODUCT SPECIFICATIONS:

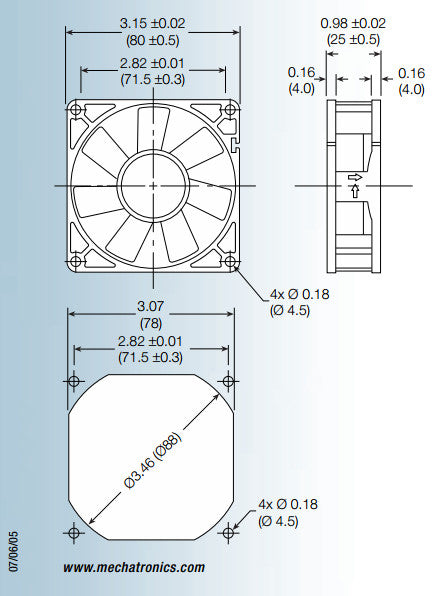

Fan Size: 80x80x25mm
Bearing Option: Ball Bearing
Voltage: 24 VDC
Connection Type: Bare 3 Leadwire 12" tail
Current (mA): 80
Fan Speed: 2800 RPM
Airflow: 35 CFM
Noise Level: 29 DBA

CERTIFICATIONS:
CE Listed
UL Recognized
TUV Listed
RoHS Compliant

NOTES:
Not retail packaged
Blue= Ground
Red= Power
White= RPM Sensor: If unused can just cap or ignore the white wire
