34 Row Transmission Oil Cooler with Electric Fan - 6AN & 10AN Hose Kit with Temperature Switch - Perfect for Performance Vehicles, Off-Road Trucks & Racing Applications

Product Description

Fluid Cooler:

• Universal 34 stacked plate aluminum heavy duty engine transmission cooler.
• Minimal pressure drop and to be used for engine, transmission or fuel cooling.
• Furnace brazed aluminum construction with 4 integrated mounting brackets.
• Full 2" deep turbulator-equipped plates and a matte black powder coat finish.
• Dimensions: 2" x 10.9" x 13" with AN hose fittings and 56000 BTU per hour.

Electric Fan:

• Universal 12 volt high performance 9" inch slim electric cooling fan.
• Upgraded 90 watt motor draws 8 amps, producing over 702 CFM.
• Configured as an air puller by default or reversible to an air pusher.

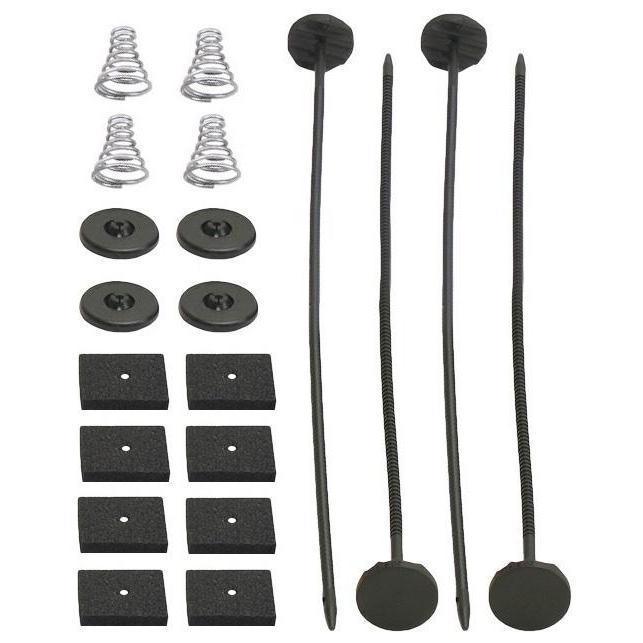

• Includes mounting bracket feet and complete cooler fin tie strap kit.
• Measures 9.75" x 9.75" x 2.4" thickness at center and 1.1" at edge.

Wiring Kit:

• Universal automotive electric fan 5-pin 40A relay switch harness kit.
• 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
• Maximum 30 amp continuous draw with 30A in-line fuse protection.
• A/C override or manual toggle switch wire built directly into harness.
• Installation instructions, wiring diagram and components included.

Fitting:

• Universal AN in-line electric fan thermostat temperature switch kit.
• 1/8" inch NPT brass thread-in probe and dual pin disconnect switch.
• Preset to power fan or 12v accessory at the selected temperature.
• Fitting is black anodized aluminum for a corrosion resistant design.
• Measures temp of any liquid including oil, water and coolant fluid.
