16" 17" 130W High Power Electric Cooling Fan with Radiator Hose & Temperature Switch - Perfect for Car Engine Cooling System, Automotive Radiator Upgrade, and Vehicle Temperature Control

Product Description

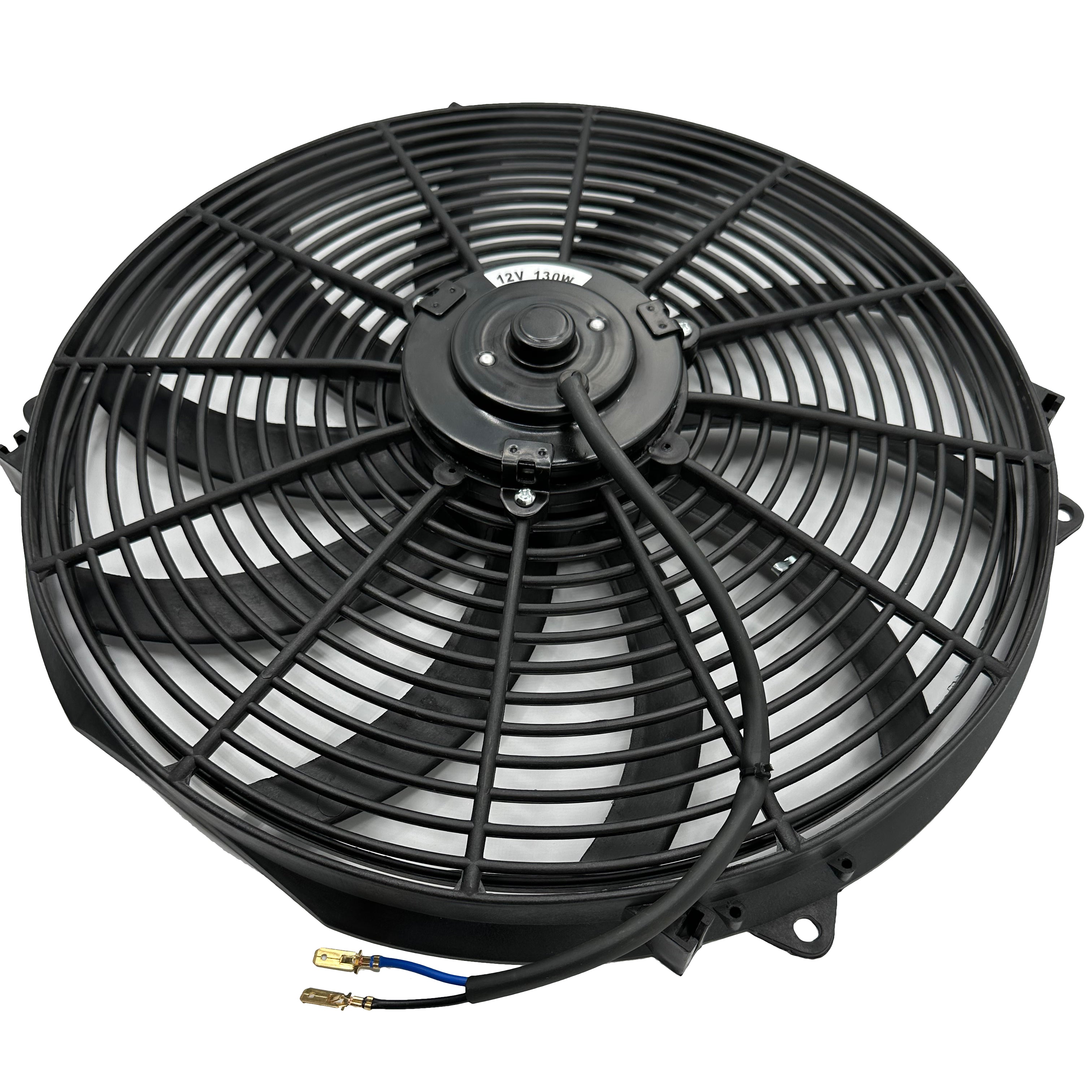

Electric Fan:

• Universal 12v high performance 16 inch electric radiator cooling fan.
• Upgraded 130 watt motor draws 12 amps producing over 2852 CFM.
• Configured as an air puller by default or reversible to an air pusher.
• Includes mounting bracket feet and complete cooler fin tie strap kit.
• Measures 16.75" x 16" x 3.2" thickness at center and 1.4" at edge.

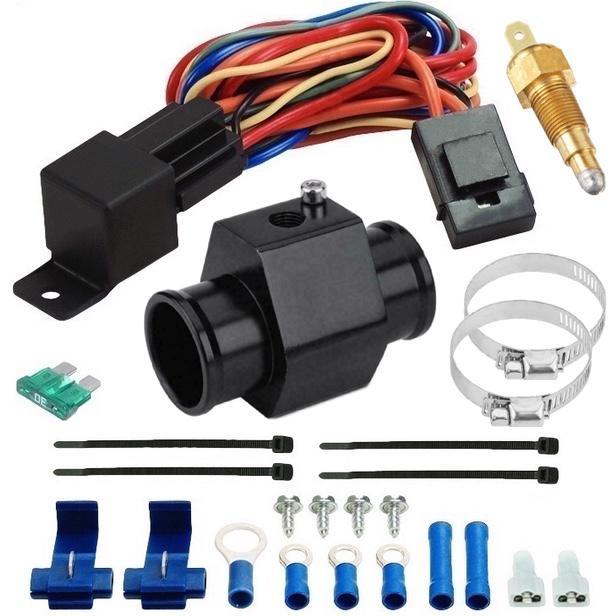

Wiring Kit:

• Universal automotive electric fan 5-pin 40A relay switch harness kit.
• 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
• Maximum 30 amp continuous draw with 30A in-line fuse protection.
• A/C override or manual toggle switch wire built directly into harness.
• Installation instructions, wiring diagram and components included.

Fitting:

• Universal radiator hose electric fan thermostat temperature sensor.
• Anodized aluminum in-line fitting adapter in various diameter sizes.
• Preset to ground fan or 12v accessory at the selected temperature.
• Single pin 1/8" inch NPT brass thread-in probe grounding switch.
• Measures temp of any liquid including oil, water and coolant fluid.
