Dynatron S5R1 Intel 4677 2U Server CPU Cooler - High Performance Cooling Solution for Data Centers & Enterprise Servers

Product Description

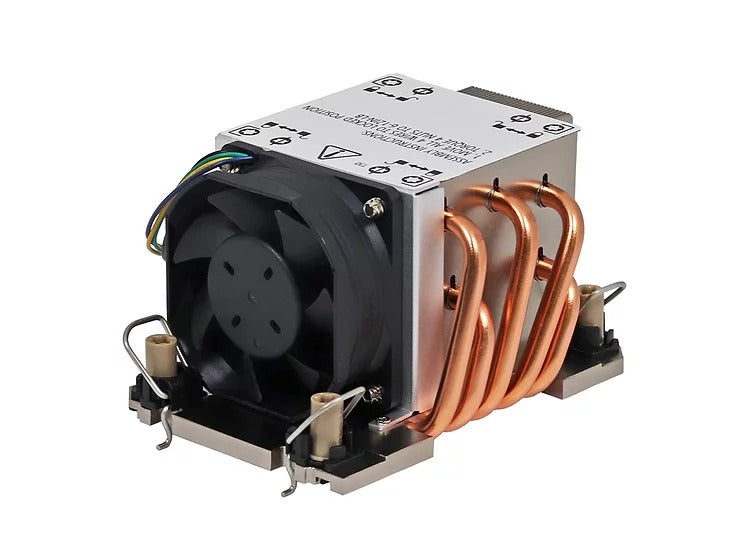

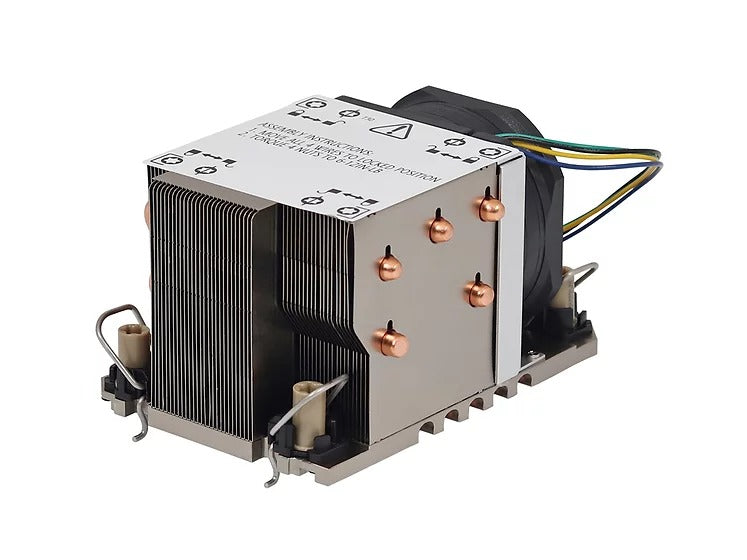

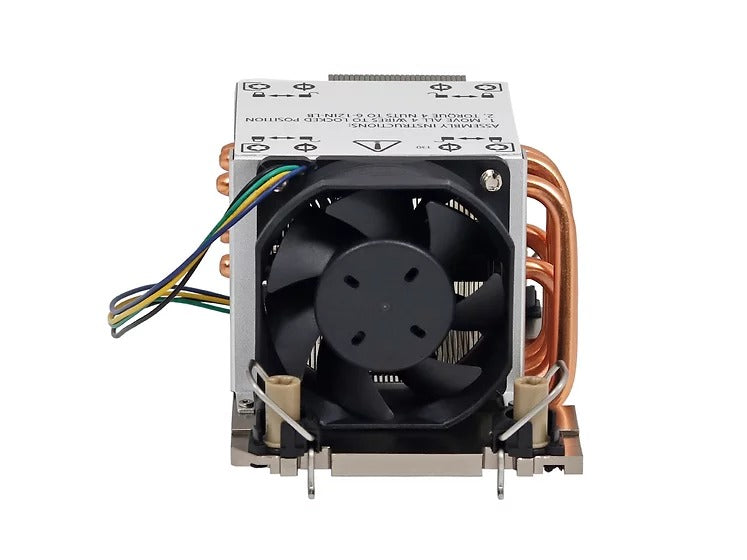

Dynatron S5R1 Intel 4677 2U CPU Cooler

840556074830

Recommend for Intel® Sapphire Rapids Processor, Socket FCLGA 4677, Active Cooler for 2U Server and up, Aluminum Fin stack with 5 Heat Pipes embedded, Side-blow fan with PWM Function, Support 350 Watts CPU Power Heat Dissipation.

PRODUCT SPECIFICATIONS:

• CPU Support: Intel
• CPU Socket: FCLGA 4677
• Solution: 2U Server and Up
• Dimensions: 118 x 82 x 66 mm
• Lead Wire Pin Out: Pin#1-Black(-)

  Pin#2- Yellow(+)
  Pin#3- Green(Tachometer/ Signal Output)
  Pin#4- Blue (PWM)

• Mounting Method: Intel LGA 4677 standard Mounting Kits

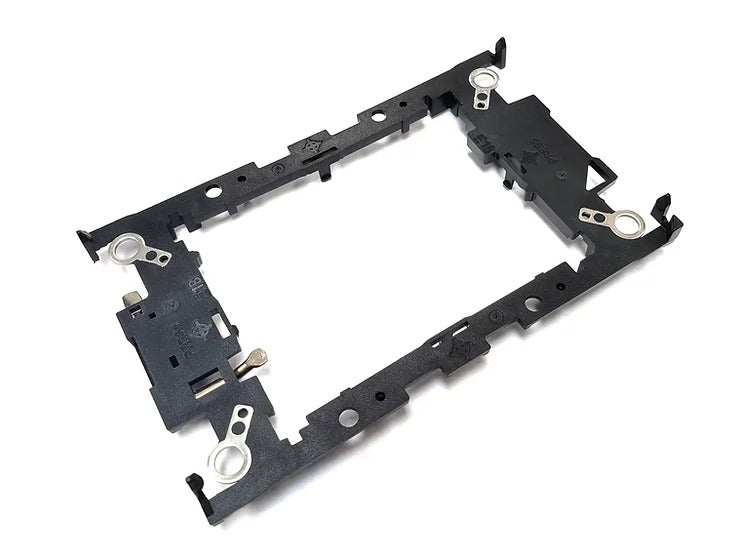

• Package Carrier: PHM Package Carrier is included
• Thermal Grease: SHIT-ETSU 7762 pre-printed
• Fan Dimension: 60 x 60 x 25 mm
• Speed: At Duty Cycle 0~20%: 2300± 200 RPM

  At Duty Cycle 50%: 5400± 10% RPM
  At Duty Cycle 100%: 11000±10% RPM

• Bearing Type: Double Ball
• Rated Voltage: 12 VDC
• Power: At Duty Cycle 0~20%: 0.84 W

  At Duty Cycle 50%: 2.76 W
  At Duty Cycle 100%: 18.0 W

• Air Flow: At Duty Cycle 0~20%: 11.91 CFM

  At Duty Cycle 50%: 28.38 CFM
  At Duty Cycle 100%: 58.31 CFM

• Noise Level: At Duty Cycle 0~20%: 25.8 dBA

  At Duty Cycle 50%: 44.4 dBA
  At Duty Cycle 100%: 59.8 dBA


• Air Pressure: At Duty Cycle 0~20%: 1.48 mm-H2O

  At Duty Cycle 50%: 7.54 mm-H2O
  At Duty Cycle 100%: 28.8 mm-H2O

• Material: 5 Heatpipes with Aluminum Fin Base and Aluminum Fin Stack
• Weight: 425.1 g
