Evercool High Speed 92x92x25mm 12V PWM Cooling Fan EC9225HH12BP - Perfect for PC Case, CPU Cooler & Gaming Computer Cooling System

Product Description

Evercool High Speed 92x92x25mm 12 Volt PWM Fan-EC9225HH12BP

840556103424

PWM (Pulse width modulation) is a powerful technique for controlling analog circuits with a microprocessor's digital outputs. By controlling analog circuits digitally, system costs and power consumption can be drastically reduced. Evercool PWM fan creates outstanding static pressure and focuses the airflow for superior performance on coolers and other applications. Evercool PWM fan uses high quality PWM IC for fully automatic control guarantee astounding quietness of operation. While choosing qualified PWM fan, Evercool must be the first choice for users.

FEATURES:
Long life bearing
Low noise & high airflow
Low pollution (ROHS complate)

PRODUCT SPECIFICATION:

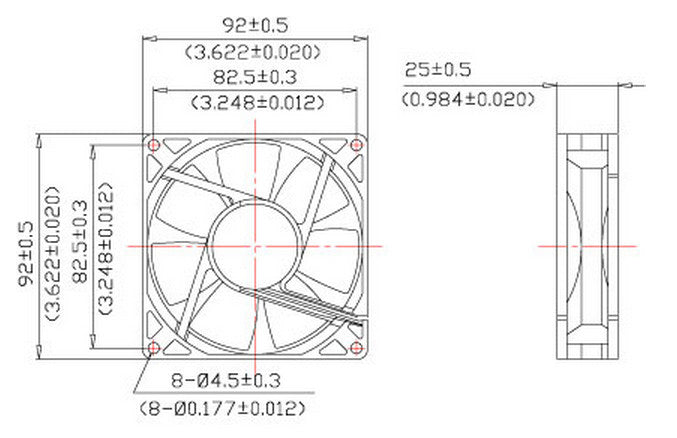

DC Fan Size: 92 x 92 x 25 mm
Bearing Type: Dual Ball bearing
DC Fan Speed: 1000 ± 25% ~ 3000 ± 15%RPM
Airflow: 18.26-53.1 CFM
Current: 0.36A
Life Time: Over 50,000 hr
Noise Level: <28.1 DBA
Rated Voltage: 12 V.DC
Connector: PWM 11" Tail / Adapter

ACCESSORIES:
3 to 4 Pin Cable
Screws x 4

NOTE:  PWM Fans are not variable speed control fans on their own.  An integrated circuit varies the speed and airflow of a fan using a pulse-width-modulated (PWM) voltage in response to temperature or system commands send typically by a computer motherboard. You can use them to run at full speed from an external supply if you adapt the plug.
