Solar Powered Dual 120mm (CG12025H12 IP67) Waterproof Fan Kit with Overcharge Protector - Outdoor Cooling Solution for RV, Greenhouse & Off-Grid Living
Solar Powered Dual 120mm (CG12025H12 IP67) Waterproof Fan Kit with Overcharge Protector - Outdoor Cooling Solution for RV, Greenhouse & Off-Grid LivingSolar Powered Dual 120mm (CG12025H12 IP67) Waterproof Fan Kit with Overcharge Protector - Outdoor Cooling Solution for RV, Greenhouse & Off-Grid LivingSolar Powered Dual 120mm (CG12025H12 IP67) Waterproof Fan Kit with Overcharge Protector - Outdoor Cooling Solution for RV, Greenhouse & Off-Grid Living

Solar Powered Dual 120mm (CG12025H12 IP67) Waterproof Fan Kit with Overcharge Protector - Outdoor Cooling Solution for RV, Greenhouse & Off-Grid Living

$54.97 $99.95 -45%

Delivery & Return:Free shipping on all orders over $50

Estimated Delivery:7-15 days international

People:15 people viewing this product right now!

Easy Returns:Enjoy hassle-free returns within 30 days!

Payment:Secure checkout

SKU:82479898

Guranteed safe checkout
amex
paypal
discover
mastercard
visa

Product Description

Solar Powered Dual 120mm (CG12025H12-IP67) Waterproof Fan Kit with Overcharge Protector

840556074908

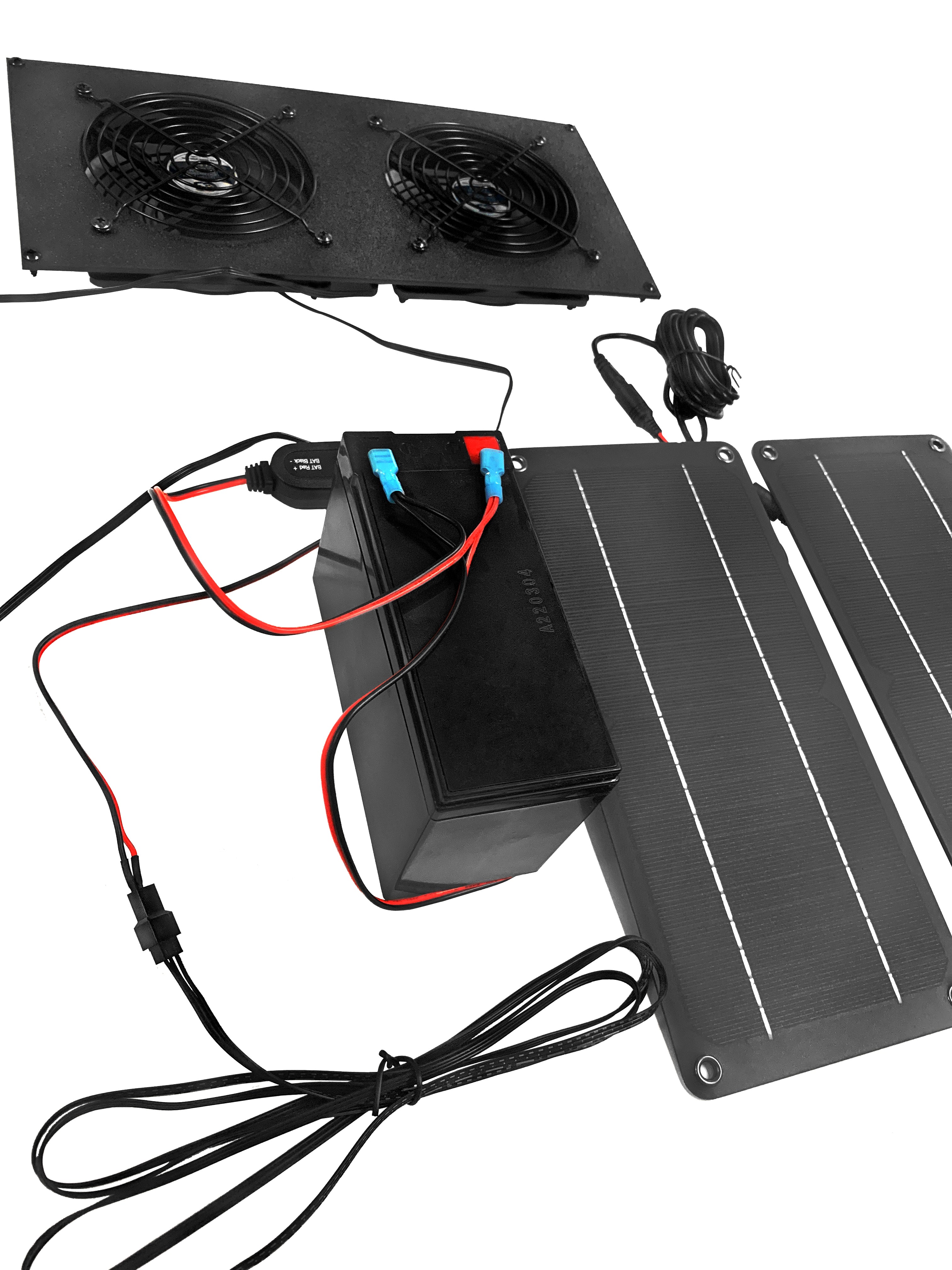

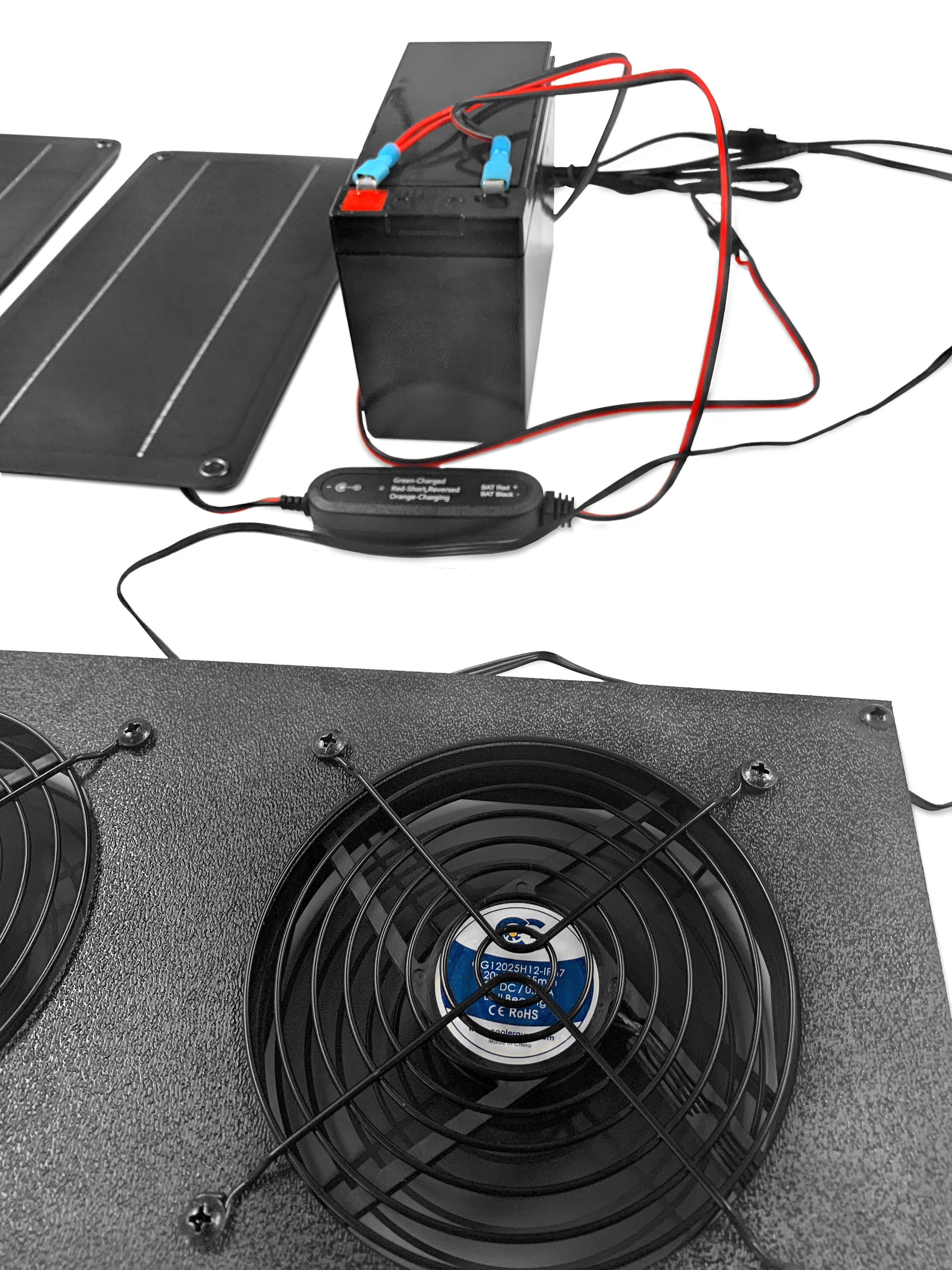

This solar-powered fan kit is an excellent choice for your greenhouse, shed, doghouse, or chicken coop. With its impressive dual-power feature, the fans are powered by both the Solar Panels and a Rechargeable Lead Acid Battery. This setup ensures uninterrupted operation, with the solar panels continuously charging the battery to keep the fans running smoothly.

Just a heads-up,  while the panels and fan are designed to withstand outdoor conditions with IP55 and IP67 ratings respectively, the connectors aren't waterproof. To maintain peak performance, it's recommended to protect the connectors with tape or sealant if they're regularly exposed to the elements.

And here's the neat part: even if you disconnect the Rechargeable Lead Acid Battery, the fans will continue to run, drawing power directly from the Solar Panels. Your fans won't miss a beat, ensuring continuous ventilation solely from solar energy whenever sun;light is available.

This solar setup can generate up to 13 watts in direct sunlight (that's approximately 1.083A), ensuring optimal ventilation for your space.

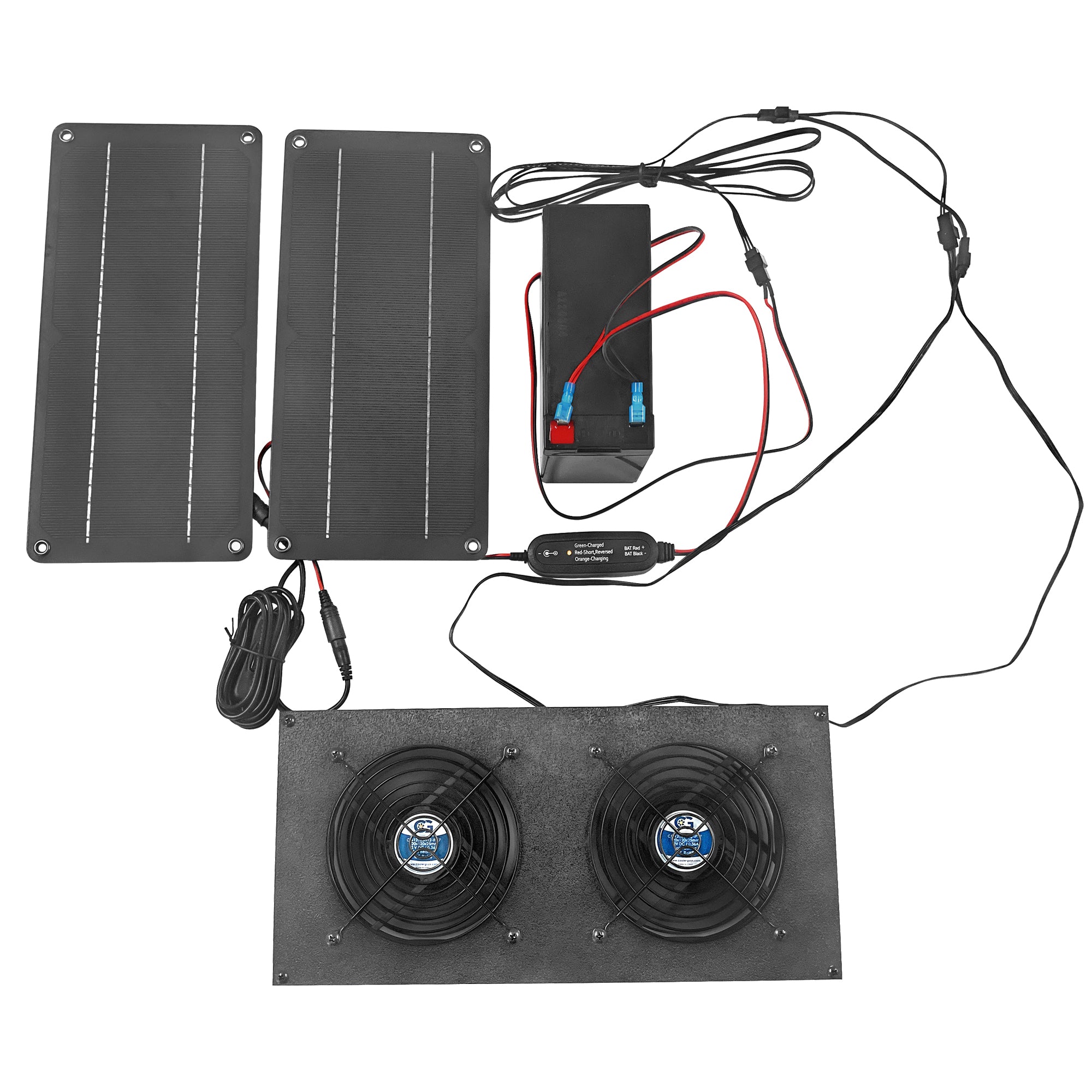

KIT CONTENTS:

  • Dual 120mm Cabinet Bracket - Acrylic
  • (8) M4 40MM Pan Head Bolt - Stainless Steel & Black
  • (8) M4 Nut - Stainless Steel & Black

PRODUCT SPECIFICATIONS:

  • Bracket Dimensions: (L=332xH=160xT=1mm)
  • Black Fan Finger Grill: (L=120xH=120mmxT=1.8mm)
  • Fan Specs:
    • Fan Size: 120X120X25mm
    • Bearing Type: Dual Ball Bearing
    • Wire Option: 3 Wire with Tachometer, Length - 762mm (30in)
    • Connector: 3-Pin 2510 MOLEX (Female Housing/Male Pin)
    • Fan Speed: 3000 ±10%
    • Airflow: 210 CFM (Combined)
    • Rated Voltage: 12 VDC
    • Rated Current: 0.36 Amp Running / 0.6 Amp Startup
    • Noise: 45 dBA (Combined)
    • Static Pressure: 5.31 mmH2O
    • Operation Temperature: -10℃ to +70℃
    • Storage temperature: -40℃ to +75℃
    • Fan Life: 67,000 Hours at 25℃
    • Corners: Closed
  • (2) 6.5w Monocrystalline Solar Panels with 12v Regulator with Connector
    Cable Wired in Parallel with an On/Off Switch, wrapped in bubble wrap with cable pre-attached to panel:
    • Solar Panel Size: 300x140x2.5mm
    • Solar Cell Type: Monocrystalline
    • Solar Cell Efficiency: 20.50%
    • Maximum Power (Pmax): 6.5W
    • Maximum Power Current (Impp): 0.5A
    • Optimum Operating Voltage (Vmp): 12.4 VDC
    • Open-circuit Voltage (Voc): 14.4V
    • Short-circuit Current (Isc): 0.48A
    • Dual Solar Panel in Parallel Parameters: 13W, 12 VDC, 1A (MAX)
    • Working Temperature: -40 °C to +85 °C
    • Junction Box Rating: ≥IP66
    • Dual Solar Panel Weight: 0.375Kg
    • Cable Spec: 22AWG, Parallel DC5521 male cable, Use the 304 switch, 150cm
    • Remarks:
      • STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25°C, Spectra at AM1.5
      • Test uncertainty for Pmax: ±3%
CERTIFICATIONS:
  • CE Listed
  • RoHS Compliant

We trust our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
