Scythe Katana III CPU Cooler - High Performance Air Cooler for Intel/AMD, Quiet 120mm Fan, Easy Installation - Perfect for Gaming PC & Workstation Builds

Product Description

Scythe KATANA3 3Heat Pipes CPU Cooler #SCKTN-3000

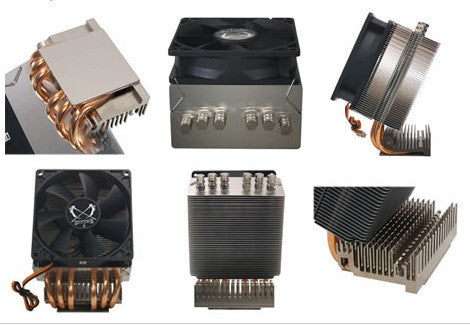

Katana is the name not only for the famous Japanese samurai sword but also for the well-known cooler series by Scythe. With Katana 3, Scythe presents now a cooler which is based on technologies, which have been developed and optimized over the years. Due to the slightly curved structure of the Katana 3, the silent 92 mm PWM fan is not only used for the removal of heat from the CPU but also to cool down sensitive components on the motherboard.

Model Name: KATANA 3
Model #: SCKTN-3000
Manufacturer: Scythe Co., Ltd. Japan

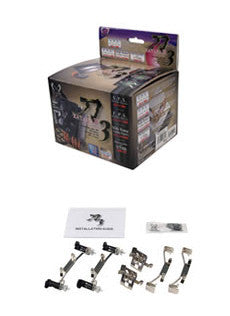

Easy installation without any tools
The smart and patent-pending mounting mechanism "VTMS" (Versatile Tool-Free Multiplatform System) allows mounting of Katana 3 CPU heatsink without using tools.

S.P.S. (Pipe Slant Structure)
Already developed with the first Katana, the slightly curved shape of the Katana 3 allows both the direct heat transfer from the cooling fins of the cooler as well as an additional cooling of the mainboard components.

F.P.S. (Fast-Phase Structure)
The various cooling fins on the baseplate allow an additional heat dissipation and optimize the overall performance of the cooler without changing the compact dimensions of the entire system.

Specifications:

Heatsink Dimension: 94 x 108 x 143 mm , 3.70 x 4.25 x 5.63 inch
Weight: 495 g (without accessory) 15.98 oz (without accessory)
Fan Dimension: 92 x 92 x 25 mm
Weight: 115 g
Speed: 300 ~ 2,500 rpm (regulated via PWM)
Noise Level: 7.2 - 31.07 dBA
Air Flow 12 - 95 m³/h = 6.7 - 55.55 CFM
Bearing: Sleeve Bearing

Compatibility:
Intel® LGA1366 Proessor
Intel® Core™ i7 Processor Extreme Edition Series
Intel® Core™ i7 Processor Series
Intel® LGA775 (SocketT) Proessor
Quad-Core Intel® Xeon® Processor 3200 Series
Dual-Core Intel® Xeon® Processor 3000 Sequence

Intel® Core™2 Extreme processor
Intel® Core™2 Quad processor
Intel® Core™2 Duo processor
Intel® Core™ Duo Processor

Intel® Pentium® Processor Extreme Edition
Intel® Pentium® D Processor
Intel® Pentium® 4 Processor Extreme Edition supporting Hyper-Threading Technology
Intel® Pentium® 4 Processor supporting Hyper-threading Technology

Intel® Celeron® D Processor

Intel® Socket478 Proessor
Intel® Pentium® 4 Processor Extreme Edition supporting Hyper-Threading Technology
Intel® Pentium® 4 Processor supporting Hyper-threading Technology
Intel® Pentium® 4 Processor
Intel® Celeron® D Processor
Intel® Celeron® Processor

AMD Socket AM3 Processor
AMD Phenom™ II X3 Processor
AMD Phenom™ II X4 Processor

AMD Socket AM2+ Processor
AMD Phenom™ II Processor
AMD Phenom™ X4 Quad-Core Processor
AMD Phenom™ X3 Triple-Core

AMD SocketAM2 Proessor
AMD Athlon™ 64 Processor
AMD Athlon™ 64 FX Processor
AMD Athlon™ 64 X2 Dual-Core Processor

AMD Socket940 Proessor
Dual-Core AMD Opteron™ Processor
AMD Opteron™ Processor

AMD Socket939 Proessor
AMD Athlon™ 64 Processor
AMD Athlon™ 64 FX Processor
AMD Athlon™ 64 X2 Dual-Core Processor

AMD Socket754 Proessor
AMD Athlon™ 64 Proessor
AMD Sempron™ Processor
