Product Description

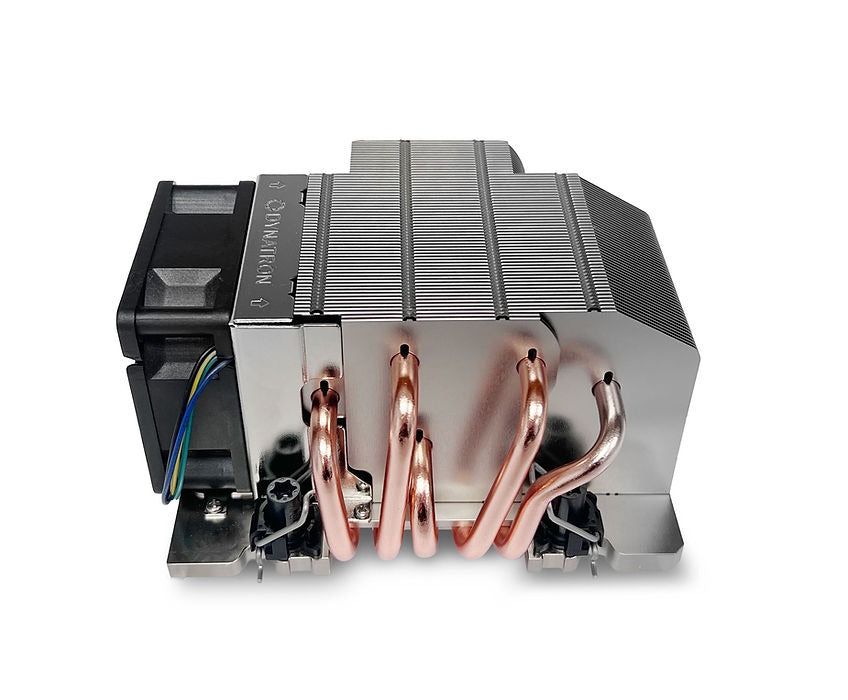

Dynatron C2 Intel 7529 2U Active CPU Cooler
840556076681
Keep your CPU cool with the Dynatron C2 Intel 7529 2U Active CPU Cooler. Designed for Intel CPUs with an LGA7529 socket, this cooler can handle up to 400W. Made with aluminum stacked-fin and heat pipes to directly contact the CPU, it also features a 60 x 60 x 25 mm fan with adjustable speed for efficient cooling. Plus, with a dual-ball bearing for a longer lifespan, this cooler is a reliable choice for your system.
PRODUCT SPECIFICATION:
CPU Support: Intel
CPU Socket: LGA 7529
Solution: 2U and Up
TDP: 400W
Dimensions: 132.5 x 97.8 x 67 mm
Weight: 630 g
Material: Aluminum Stacked-fin with Heat Pipes directly contact CPU
Fan Dimension: 60 x 60 x 25 mm
Speed:
At Duty Cycle 0~20%: 2300± 200 RPM
At Duty Cycle 50%: 5400±10% RPM
At Duty Cycle 100%: 11000 ±10% RPM
Rated Voltage: 12V
Bearing: 2 Ball Bearing
Power:
At Duty Cycle 0~20%:0.84 W
At Duty Cycle 50%: 2.76 W
At Duty Cycle 100%: 18 W
Air Flow:
At Duty Cycle 0~20%: 11.91 CFM
At Duty Cycle 50%: 28.38 CFM
At Duty Cycle 100%: 58.31 CFM
Noise Level:
At Duty Cycle 0~20%: 25.8 dBA
At Duty Cycle 50%: 44.4 dBA
At Duty Cycle 100%: 59.8 dBA
Air Pressure:
At Duty Cycle 0~20%: 1.48 mm-H2O
At Duty Cycle 50%: 7.54 mm-H2O
At Duty Cycle 100%: 28.8 mm-H2O
Lead Wire Pin Out:
Pin#1- Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)
