6 Inch Quiet Fan Mounting and Ducting Kit - Ultra Silent Ventilation System for Home, Office & Grow Rooms - Perfect for HVAC, Hydroponics and Indoor Air Circulation

Product Description

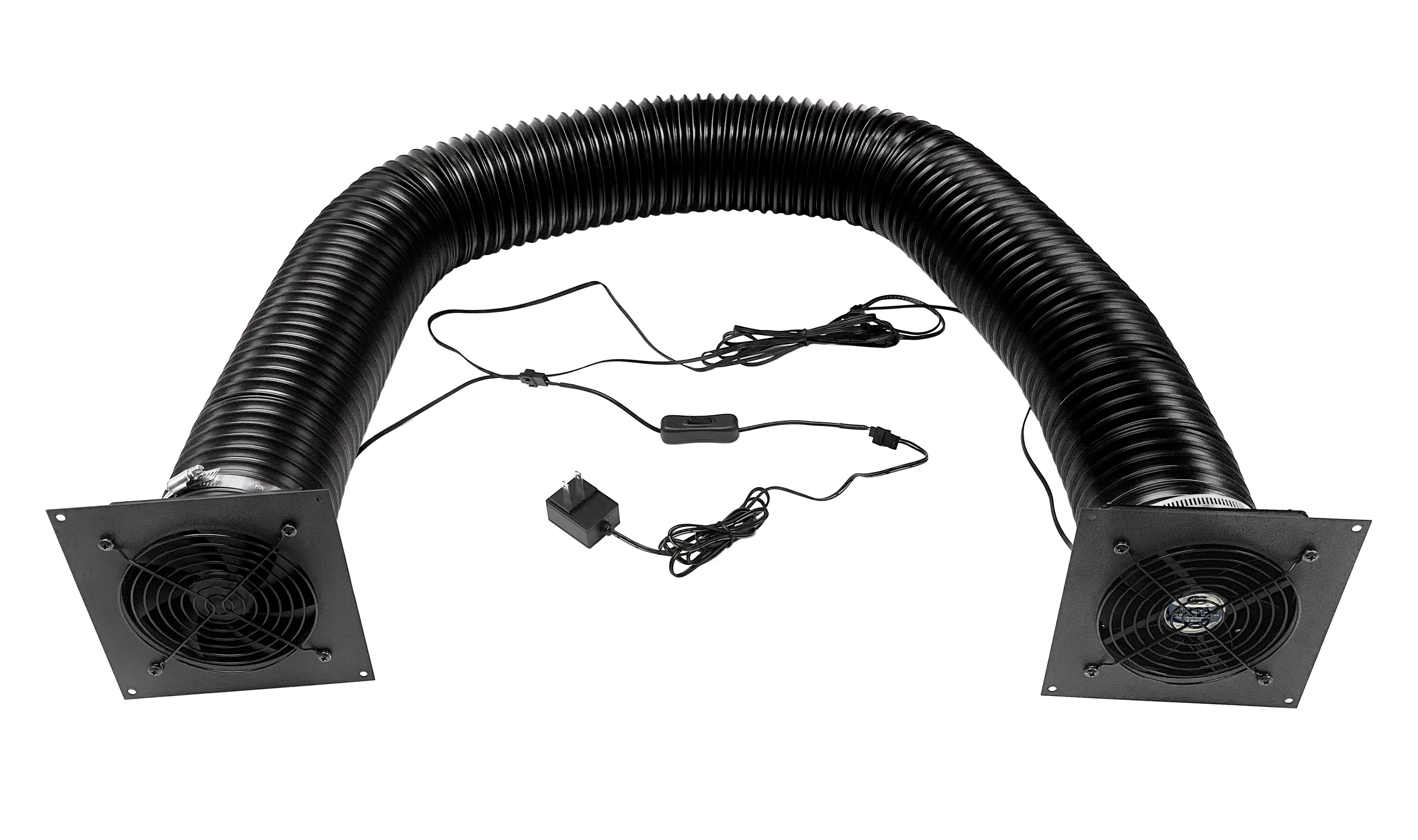

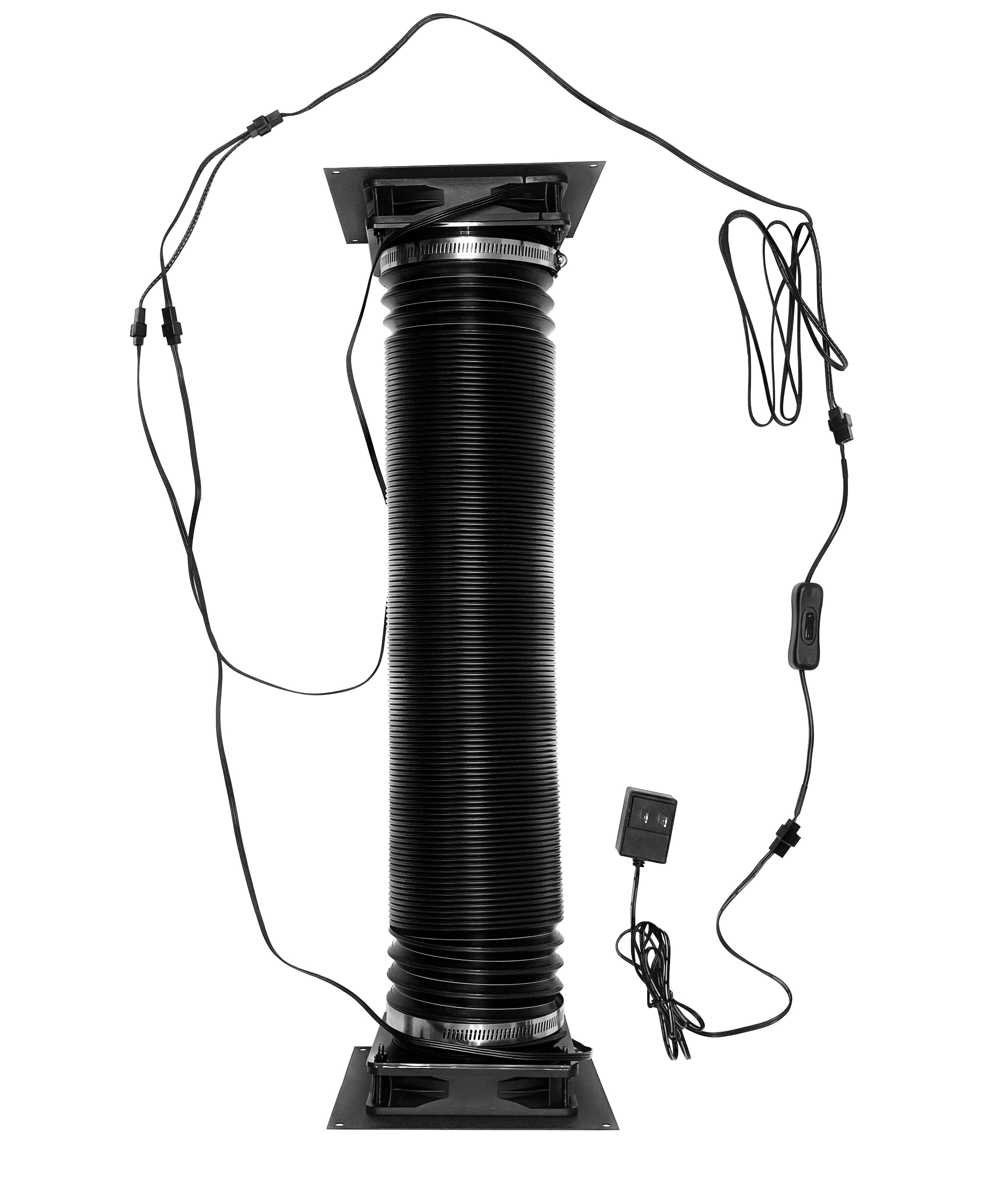

6 Inch Quiet Fan Mounting And Ducting Kit

840556075523

The 6 Inch Quiet Fan Mounting And Ducting Kit is a great overall solution for heat reduction and airflow. It works effectively in transferring large amount of heat away from your equipment and keeps it from circulating back to your room.

This kit consists of  our ultra quiet and reliable Coolerguys 120x120x25mm 12 VDC 3Pin Low Speed fan along with acrylic cabinet bracket, anti vibration gasket,  grills, flexible vent duct tubing necessary to assemble and install the unit  to provide you a high quality cooling system for your AV system and server racks.

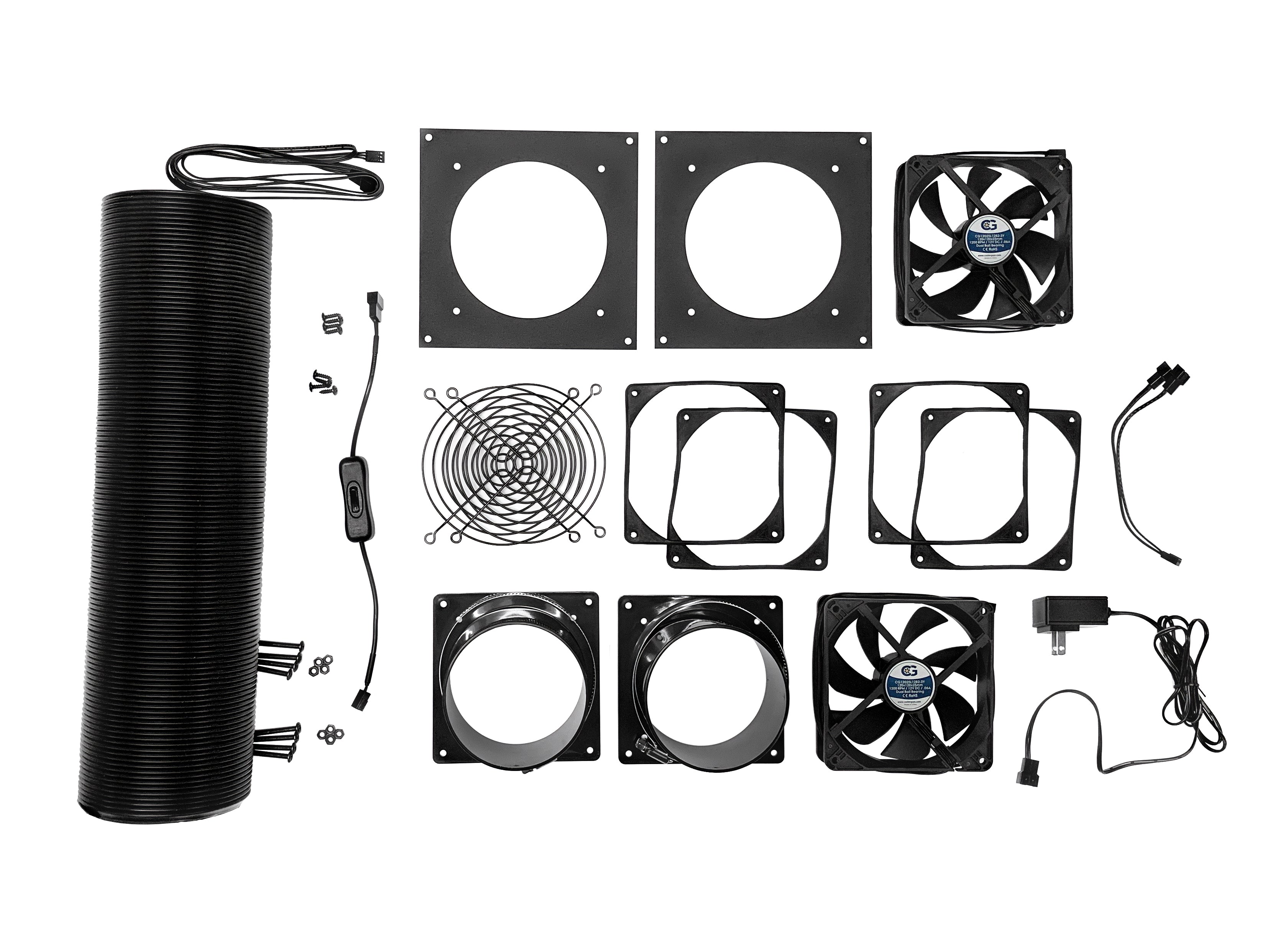

KIT CONTENTS:

• (1) Double Side PVC 4" Flex Duct Black long D4"x60", 1500mm
• (2) 120/92mm Fan End Cap Shroud to 4"
• (2) 91-114mmØ Stainless Steel Air Clamp ADS-304 for D4"
• (
• (8) Black Mounting Screws for Cabinet

PRODUCT SPECIFICATIONS:

• Bracket Dimensions:  Length=160mm x Height=160mm Thickness= 1 mm
• Black Fan Finger Grill: Length=120mm x Height=120mm Wire Thickness = 1.8mm
• Fan Specifications:
• Fan Size: 120x120x25mm
• Bearing Type: Dual Ball Bearing
• Wire Option: 3 Wire with Tachometer, Length - 762mm (30in)
• Connector: 3-Pin 2510 MOLEX (Female Housing/Male Pin)
• Fan Speed: 1200 ±10% RPM
• Airflow: 90 CFM (Combined)
• Rated Voltage: 12 VDC
• Rated Current: 0.06 running / 0.1A startup
• Noise: 23.4 dBA (Combined)
• Static Pressure: 1.16 mmH2O
• Operation Temperature: -10℃ to +65℃
• Storage temperature: -40℃ to +75℃
• Fan Life: 67,000 Hours at 25℃
• Corners: Closed

• CE Listed
• RoHS Compliant

We trust in our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
