Coolerguys Pro Metal Thermal Controlled Filtered AV Cabinet Cooling Kit - Intake & Exhaust System for Server Racks, Home Theater & Electronics Cabinets

Product Description

Coolerguys Pro-Metal Thermal controlled filtered Intake and exhaust AV cabinet cooling kit

840556002895

CabCool1201 Single 120mm Fan Cooler Kit including two separate units, one with a filtered intake and one for exhaust

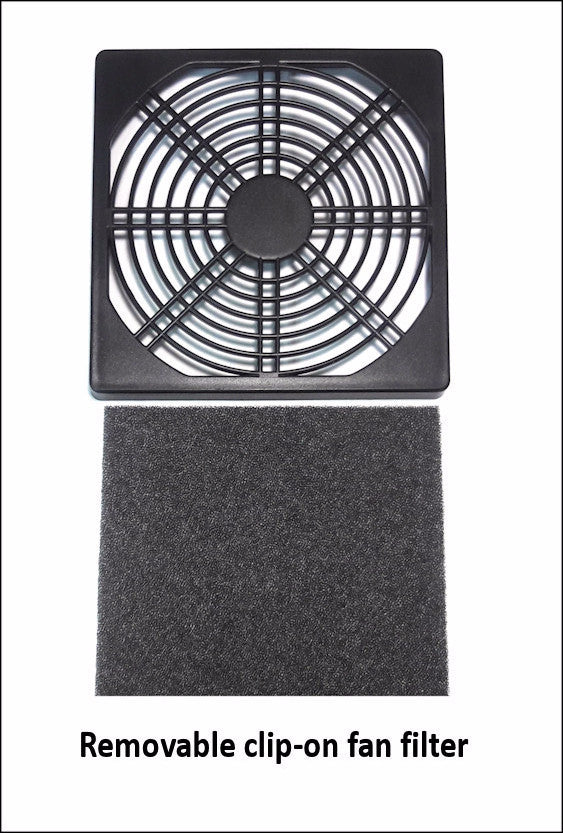

Includes front mount removable filter.

The filter can be purchased and attached to the front of other 120mm bracket kits.

This is a *kit for a single fan unit (6.25" x 6.25" x .125") to cool your cabinet or multimedia center.

Thermal Controller Style:

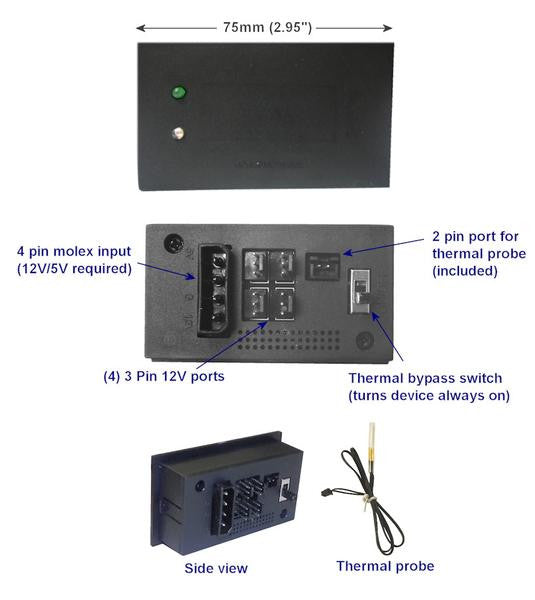

• Built-in thermal sensor.  Controls power to your fans to cool when you need it.  With an external temperature probe wire for spot placement.   On @ 87°F Off @ 81°F (+/- 1°)
•  (additional $10.00)

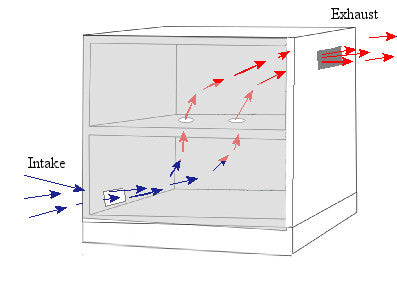

Can be mounted on any side of a cabinet, where room permits, by cutting a rectangular hole approximately 5" x 5" (130 x 130mm). Insert completed cooler assembly in a hole and attach to the cabinet with appropriate screws. Fans can be set to blow into or out of the cabinet depending on your needs. If you need additional information

DC 12V fans that are powered by our CS 110v AC to 12v DC Power Supply

Kit Includes:

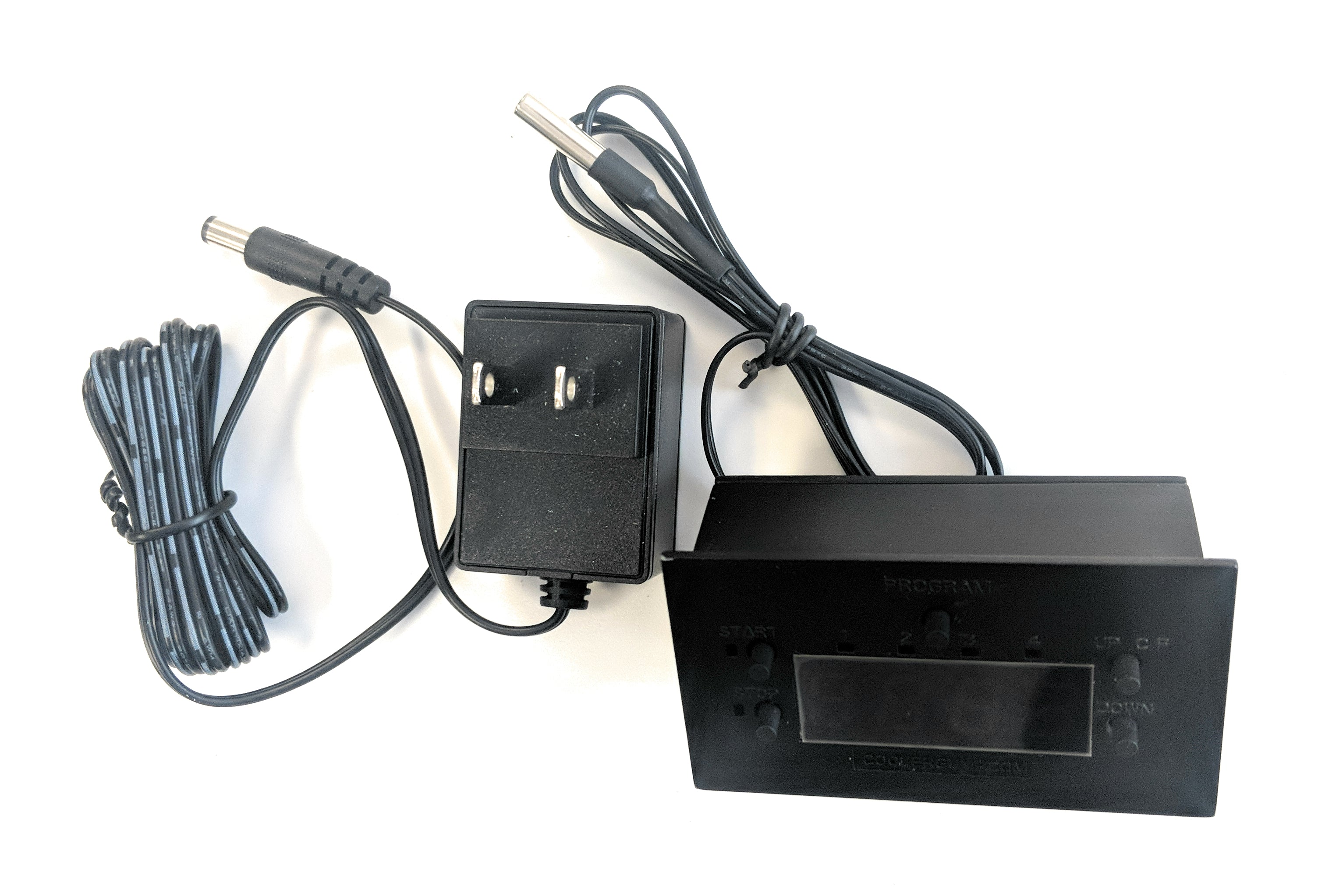

• (1) Coolerguys AC to 12v DC 1A Power Supply
• (2)
• (2) Black Metal Powder Coated Bracket (6.25" x 6.25" x .125")
• (1) or optional LED Controller
• (1) Black 120mm Honeycomb Mesh Fan Grills
• (2) Black 120mm Fan Grills

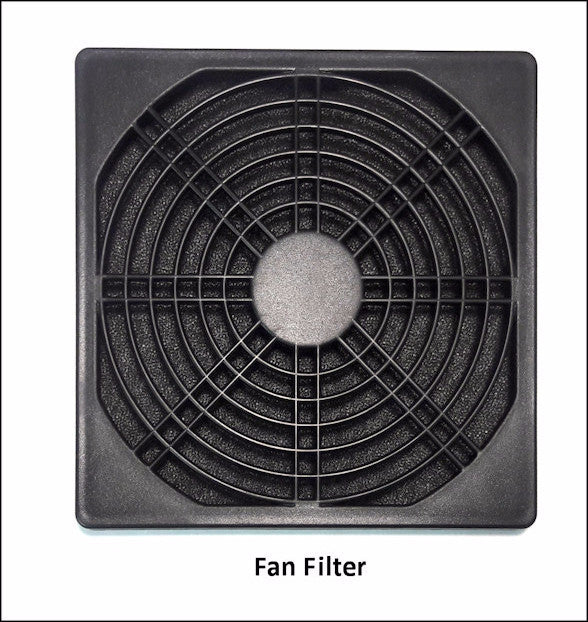

• (1) 120mm Fan Filter Grill
• (8) Fan nuts and bolts
• (8) #6 - 1/2" black Cabinet screw

All necessary screws, cables, and fasteners to complete the unit
Completed dimensions: 6.25 x 6.25" for each bracket
Cabinet Cutout size: 5" x 5" (130 x 130mm) for each bracket

UNIT SPECIFICATIONS:
Fan Speed: 1200 RPM
Operation Voltage: 6.5~13.8 Volts
Input current: 0.30 Amp
Operation temperature: -10 to +65 C
Storage temperature: -40 to +70 C
Airflow: 92 CFM
Noise Level 23.4 dBA



General Instructions for CabCool Cabinet Cooler Kits (574 kb pdf)
http://site.coolerguys.com/Product_Images/instruction_CG_cabcool_cooler.pdf

This is a kit and some assembly is required.



We trust in our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
