15 Row Transmission Cooler with Electric Fan & AN Hose End Temperature Sensor Kit - Heavy Duty Cooling for Trucks, RVs & Performance Vehicles

15 Row Transmission Cooler with Electric Fan & AN Hose End Temperature Sensor Kit - Heavy Duty Cooling for Trucks, RVs & Performance Vehicles

15 Row Transmission Cooler with Electric Fan & AN Hose End Temperature Sensor Kit - Heavy Duty Cooling for Trucks, RVs & Performance Vehicles

15 Row Transmission Cooler with Electric Fan & AN Hose End Temperature Sensor Kit - Heavy Duty Cooling for Trucks, RVs & Performance Vehicles

15 Row Transmission Cooler with Electric Fan & AN Hose End Temperature Sensor Kit - Heavy Duty Cooling for Trucks, RVs & Performance Vehicles

15 Row Transmission Cooler with Electric Fan & AN Hose End Temperature Sensor Kit - Heavy Duty Cooling for Trucks, RVs & Performance Vehicles

15 Row Transmission Cooler with Electric Fan & AN Hose End Temperature Sensor Kit - Heavy Duty Cooling for Trucks, RVs & Performance Vehicles

15 Row Transmission Cooler with Electric Fan & AN Hose End Temperature Sensor Kit - Heavy Duty Cooling for Trucks, RVs & Performance Vehicles

15 Row Transmission Cooler with Electric Fan & AN Hose End Temperature Sensor Kit - Heavy Duty Cooling for Trucks, RVs & Performance Vehicles

15 Row Transmission Cooler with Electric Fan & AN Hose End Temperature Sensor Kit - Heavy Duty Cooling for Trucks, RVs & Performance Vehicles

15 Row Transmission Cooler with Electric Fan & AN Hose End Temperature Sensor Kit - Heavy Duty Cooling for Trucks, RVs & Performance Vehicles

$76.45 $139 -45%

Delivery & Return:Free shipping on all orders over $50

Estimated Delivery:7-15 days international

People:19 people viewing this product right now!

Easy Returns:Enjoy hassle-free returns within 30 days!

Payment:Secure checkout

SKU:79557590

Guranteed safe checkout

Product Description

Fluid Cooler:

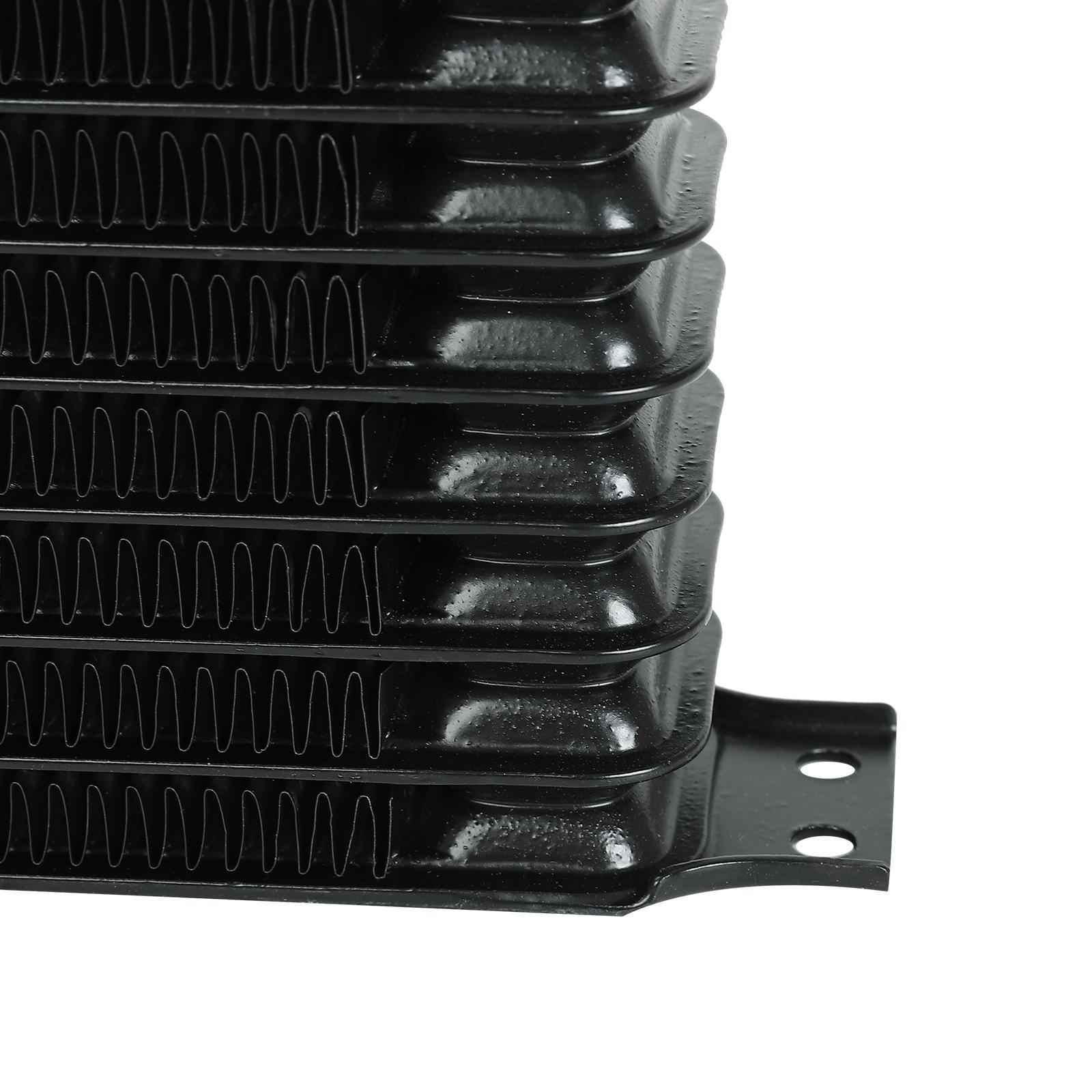

15 row plate and fin black aluminum heavy duty engine transmission cooler.
Extend transmission life by helping prevent heat-related transmission failures.
Perfect for light to medium duty car, truck or SUV use with occasional towing.
1 1/4" wide plates and embossed turbulators, which maximize heat transfer.
Dimensions: 2" x 9.4" x 13.4" with AN male hose fittings and GVW 22000 lbs.
Oil cooler capacity: 0.8L; Test pressure: 116psi and Burst pressure: 232psi.

Electric Fan:

Universal 12 volt high performance 8" inch small electric cooling fan.
Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.
Configured as an air puller to be on the inside and pull air through.

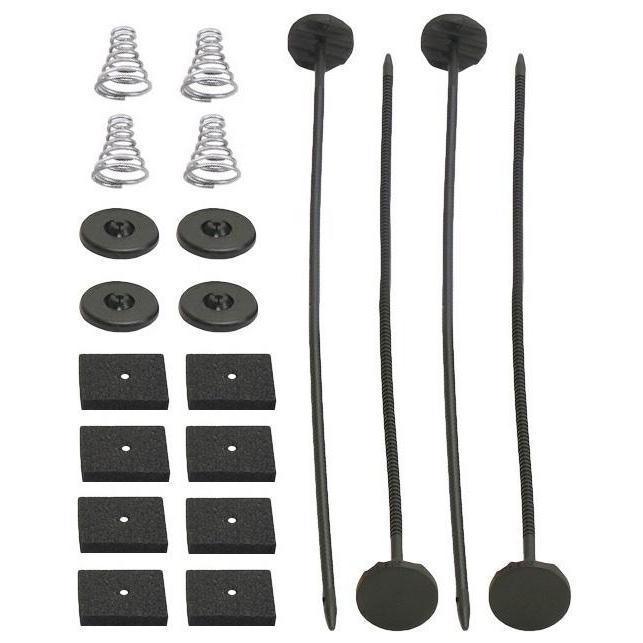

Includes mounting bracket feet and complete install fin tie strap kit.
Measures 8.5" x 7.75" x 2.4" thickness at center and 1.4" at edge.

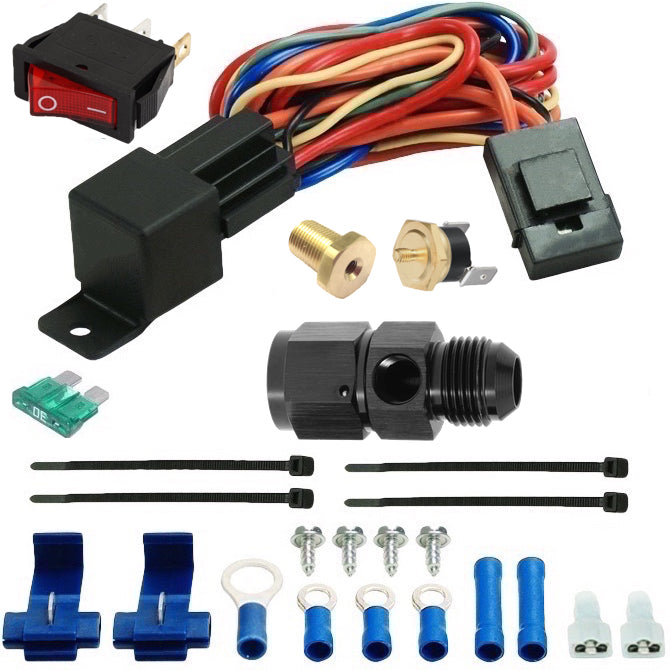

Wiring Kit:

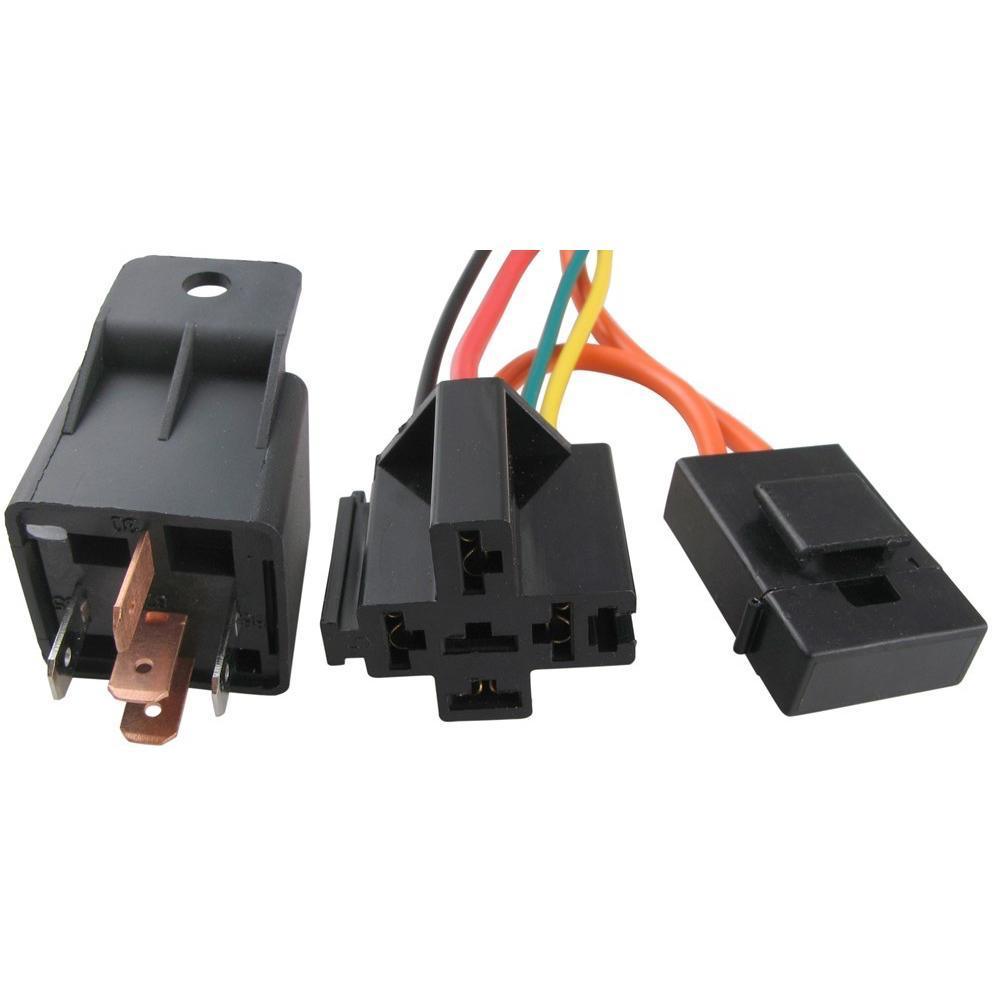

Universal automotive electric fan 5-pin 40A relay switch harness kit.
14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
Maximum 30 amp continuous draw with 30A in-line fuse protection.
A/C override or manual toggle switch wire built directly into harness.
Installation instructions, wiring diagram and components included.

Fitting:

Universal AN in-line electric fan thermostat temperature switch kit.
1/8" inch NPT brass thread-in probe and dual pin disconnect switch.
Preset to power fan or 12v accessory at the selected temperature.
Fitting is black anodized aluminum for a corrosion resistant design.
Measures temp of any liquid including oil, water and coolant fluid.
