Dual 120mm Fan Cooler Kit with Custom Wood Grill & Thermal Controller - High Performance PC Cooling for Gaming Rigs and Workstations

Product Description

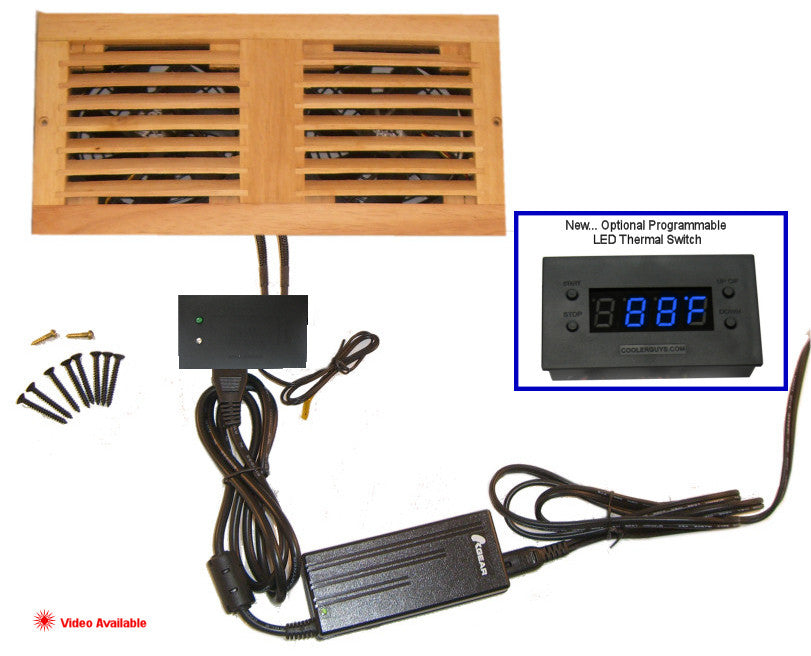

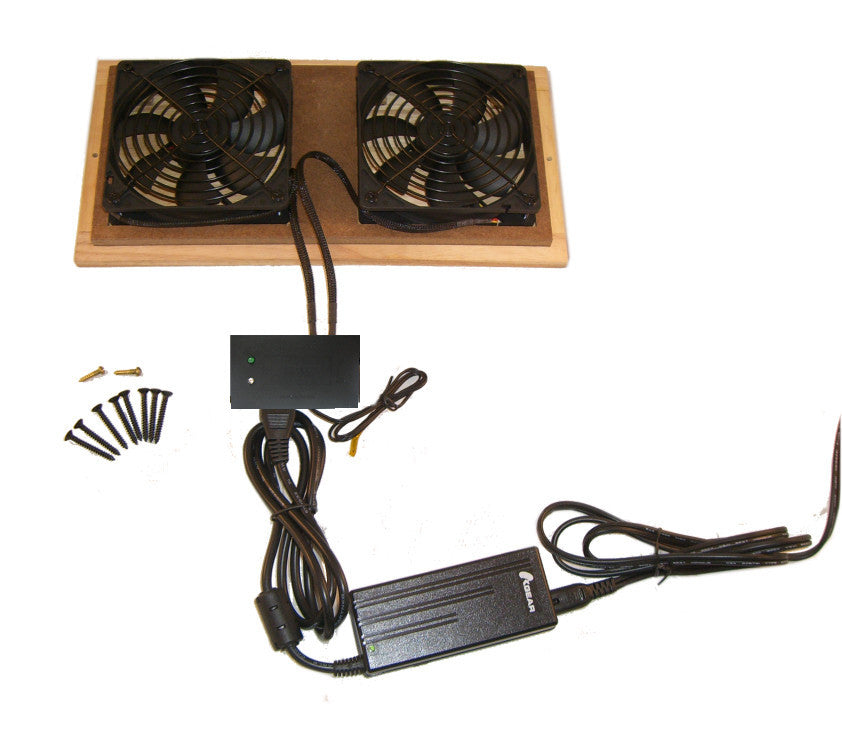

CabCool1202 Dual 120mm Fan Cooler Kit with Custom Wood Grill/Thermal Controller

Preset Non-Adjustable 81-86 840556089735
Programmable with/LED Display 840556090946

This is a two fan oak grill *kit to cool your cabinet or multimedia center.

Custom oak wood grill
Ships with a light seal to protect from water damage during transit, if you want to paint or stain we suggest you lightly sand this coating off.
Fan mounting holes are pre-drilled for easy installation.

The fan can be set to intake or exhaust, simply point the fan the desired direction before mounting to the grill.

The fan(s) will only power when the temperature monitored by the included controller/probe (24” lengths) reaches 88°F (31C)
and will stay on until the temperature drops below 81°F (27C) (+/- 1°)

(optional) an additional $20.00/ea
The included fan is powered by the included , plugs into a standard
wall outlet (US 2 prong or UK 3 prong depending on your region)

After cutting an appropriately sized hole simply insert the completed cooler assembly and attach using the included brass screws.
Can be mounted on any side of a cabinet, where room permits. Insert completed cooler assembly in a hole and attach to the cabinet
with appropriate screws.
Fans can be set to blow into or out of the cabinet depending on your needs.

Wood grills are individually made. The actual dimensions may be slightly different from the above. Measure before making any cuts.

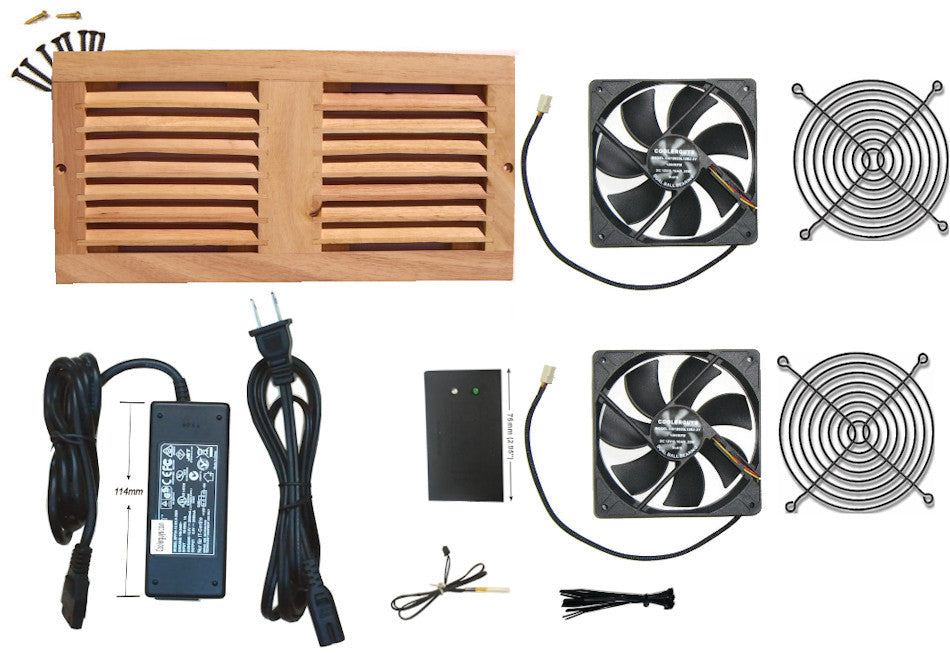

Cooling Unit includes the following:
(1) Custom Oak Fan Grill
(2) - 840556091929
(1) r - 840556029977
(1) - 840556098690
(2) - 840556082705
(8) Fan Screws
Pack - 4" Nylon Multi-Purpose Tie Black - 840556050018
(2) 5/8" Brass Cabinet Finish Screws

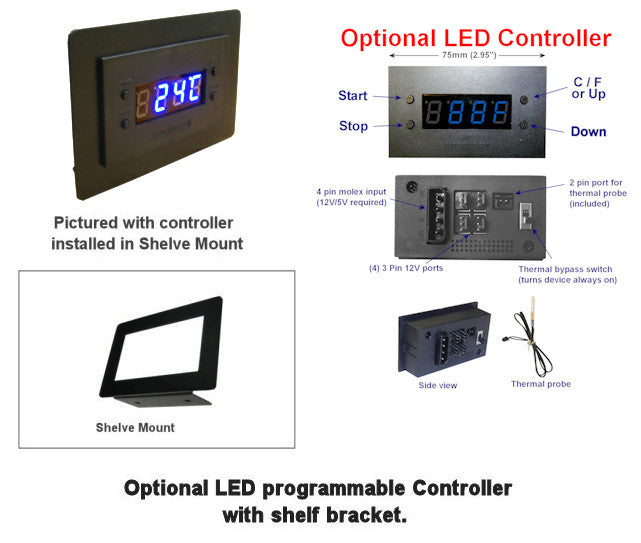

* Coolerguys Programmable Thermal Fan Controller with LED Display - 840556090885
* (shelf mount) - 840556091011
* - 840556087212
* Included with LED Thermal Programmable upgrade only -
All necessary screws, cables, and fasteners to complete the unit.

PRODUCT SPECIFICATIONS:
Face Dimension: 13.6 x 7.2 inches (345 x 183mm)
Cabinet Cut-out Size: 12.25” x 5.75” (311 x 146mm)

FAN SPECIFICATIONS:
Fan Speed: 1200 RPM
Airflow: 46 CFM
Noise Level: 20.4 dBA
Bearing Type: Dual Ball
Life Hours: 50,000 Life Hours

CERTIFICATIONS:
RoHS Compliant

General Instructions for CabCool Cabinet Cooler Kits (574 kb pdf)
Additional Pictures of Install (500 kb pdf)

For the DIY Customize your own kit here!
Fan Specs may vary slightly depending on availability
***Please Read*** Additional information for fan selection and temp monitors
Probes only have external sensor only.
We are continually updating this product and may make minor adjustments to improve performance.

We trust in our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
