DYNATRON A41 1U Active Server CPU Air Cooler - High Performance Cooling Solution for Rackmount Servers & Data Centers

Product Description

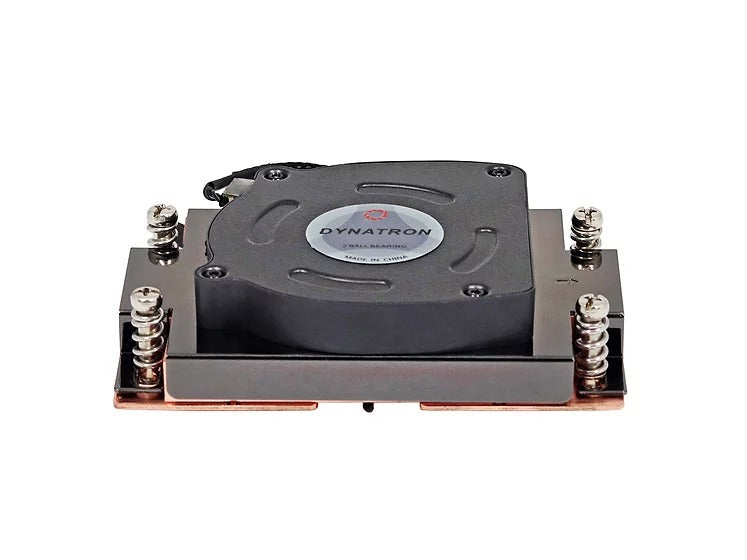

Dynatron A41 1U Active Air Cooler

840556074946

Recommend for AMD® Ryzen Threadripper Processor, Socket sWRX8, sTRX4 and TR4, and AMD® Epyc Processor Socket SP3, Aluminum PWM Blower for Heat Exhausting, Active Cooler for 1U Server, Support CPU power up to 225 Watts Heat Dissipation.

PRODUCT SPECIFICATIONS:

• CPU Support: AMD® Ryzen Threadripper/EPYC Processor
• CPU Socket: sWRX8/sTRX4/TR4/SP3
• Solution: 1U Server and Up
• Dimensions: 120 x 82 x 28.4 mm
• Lead Wire Pin Out: Pin1- (-)

  Pin2- (+)
  Pin3- (Tachometer/Signal output)
  Pin4- (PWM)

• Fan Dimension: Ø80 x 13 mm
• Speed: At Duty Cycle 20%: 2000 ± 200 RPM

  At Duty Cycle 50%: 4900 ± 10% RPM
  At Duty Cycle 100%: 8600 ± 10% RPM

• Bearing Type: Ball Type, Double
• Rated Voltage: 12 VDC
• Power: At Duty Cycle 20%: 1.08 W

  At Duty Cycle 50%: 4.70 W
  At Duty Cycle 100%: 23.45 W

• Air Flow: At Duty Cycle 0~20%: 5.59 CFM

  At Duty Cycle 50%: 14.76 CFM
  At Duty Cycle 100%: 26.25 CFM

• Noise Level: At Duty Cycle 20%: 23.3 dBA

  At Duty Cycle 50%: 43.5 dBA
  At Duty Cycle 100%: 62.2 dBA


• Air Pressure: At Duty Cycle 20%: 3.69 mm-H2O

  At Duty Cycle 50%: 25.28 mm-H2O
  At Duty Cycle 100%: 89.80 mm-H2O

• Material: Copper1100 Heatsink with Vapor Chamber Base
• Weight: 480g
