Anti Vibration Soft Silicone Fan Gaskets - Noise Reduction Pads for PC, GPU & CPU Cooling Fans - Perfect for Gaming Rigs & Computer Builds

Product Description

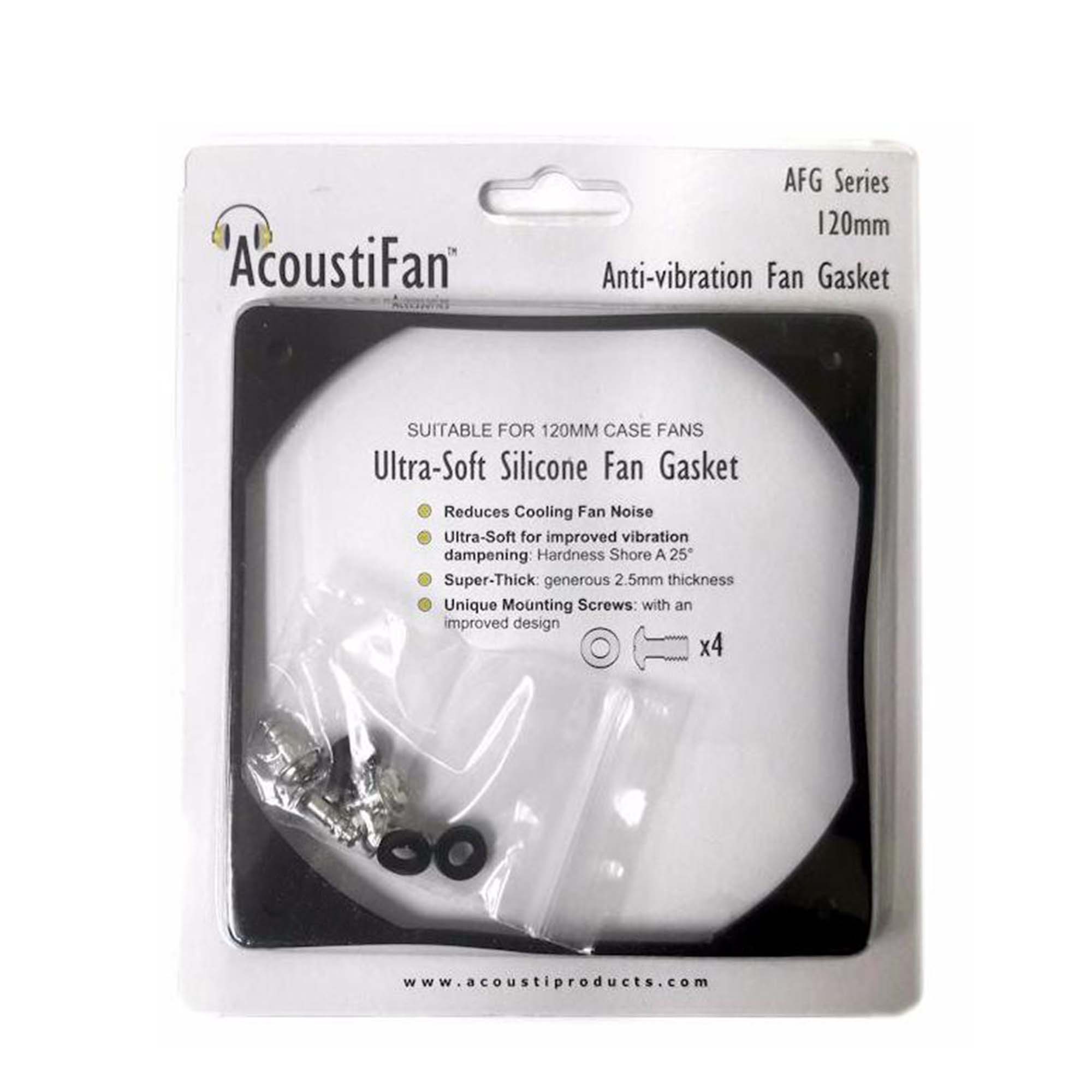

Anti-Vibration Soft Silicone Fan Gaskets

840556003229 AFG60B / 840556003236 AFG70B / 840556003243 AFG80B/ 840556003250 AFG92B / 840556003267 AFG120B

These ultra-soft fan gaskets are designed to reduce the vibration from PC and server case cooling fans, and maintain a seal between the case side and the fan housing. Each retail pack contains an anti-vibration fan gasket with 4 silicone washers and mounting screws.

The following models are available:
AFG60B- Black, for 60mm case fans
AFG70B- Black, for 70mm case fans
AFG80B- Black, for 80mm case fans
AFG92B- Black, for 92mm case fans
AFG120B- Black, for 120mm case fans

ADVANTAGES:
Silicone fan gaskets are truly the ultimate in fan noise reduction, because they perform two important tasks:

1. Help to 'seal' the small gap between the fan and the casing/enclosure wall. This improves the efficiency of the fan, by reducing feedback airflow and therefore air pressure losses, and

2. Help to absorb the vibration that otherwise would be transmitted from the fan into the case chassis and case housing.

Other advantages include:

• Compatible with virtually all case cooling fans

• Supplied with screws and silicone washers

• Quick and very easy to fit (these gaskets 'hold onto' the fan whilst fitting them due to a small lip in the gasket design)

These gaskets are suitable for the vast majority of case designs and fan combinations, as they fit standard fan mounting holes. Slightly lengthened (12mm thread) fan mounting screws are supplied with the fan gaskets and washers. These gaskets can be used with standard PC cooling fans, and not just with AcoustiFan™ quiet case fans. Note: Do not use these gaskets in very high temperature locations inside a PC/Server such as attached to CPU or GPU heat sinks!

TECHNICAL SPECIFICATIONS:
Operating Temperature: (-)20 - (+)70°C
Softness: Shore A 25° ±5
Material: Translucent Silicon Rubber
Gasket Thickness: 2.5mm
Recommended Compression: 5% of height
