Pfannenberg PF 42500 4.0 10 NEMA 12 Filter Fan 11642154055 - Industrial Cooling Fan for Electrical Enclosures & Control Panels - Perfect for HVAC, Manufacturing & Automation Systems

Product Description

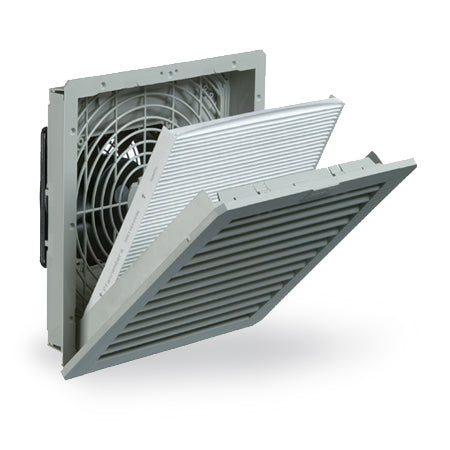

Pfannenberg PF 42500 4.0 10" Nema 12 Filter Fan 11642154055

Lead Time: 1-2 weeks

840556071358

NEMA Type 12 Protection
The closed frame design prevents unfiltered air from penetrating the cabinet.

Patented Tool-Less 4 Corner Fastening System
The patented fastening system allows for fast installation (possible to install in seconds) and easy removal reducing MTTR.

Highest Quality Fans
German manufactured fans that exceed industry standards for quality, performance and service life.

Highest System Airflow Compared to Competitors Filter Fans
The design of the louvers supports the greatest airflow while further protecting against airborne dust and dirt.

Globally Compatible
ERP compliant to meet European efficiency directives. Units also comply with additional national and international standards, e.g. TÜV, NEMA, UL, CSA and EAC.

Versatile Options
Options including UV Protected Plastic for use in direct sunlight, EMC shielding to attenuate RF signals and exhausting fans for custom applications.

Aesthetically Pleasing Design Using Neutral Colors
Available in a standard RAL 7035 Grey and an optional Black color. These units blend in well with the modern styles and colors used for existing machines and systems.

PRODUCT SPECIFICATIONS:
VOLTAGE: 115 V
DESIGN (housing and protection against accidental contact): Self-extinguishing, UL 94 VO injection-molded thermoplastic
SERVICE LIFE L10 (+ 40 °C): 42,500 h
WEIGHT (lb): 3
NOISE LEVEL (EN ISO 3741): 43 dB (A)
CONNECTION TYPE: Spring-type terminal
BEARING TYPE: Ball Bearing
POWER CONSUMPTION (W): 17 W

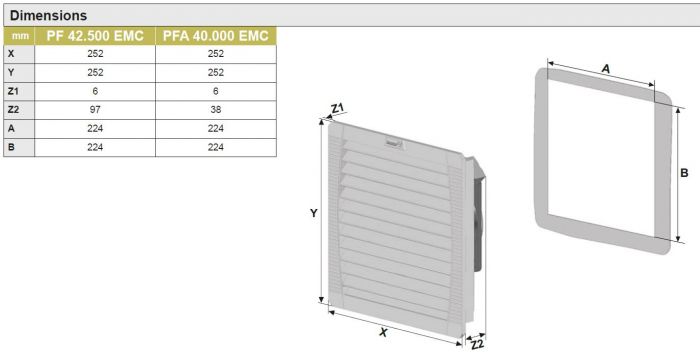

W x H x D (in): 9.92 x 9.92 x 4.05
CUT-OUT DIMENSIONS (mm): 223 x 223
SYSTEM OF PROTECTION (EN 60529): IP 55
System of protection (UL 50): NEMA Type 12 - fluted filter
FILTER MAT QUALITY CLASS: G 4
UNIMPEDED AIRFLOW: 94 CFM
AIRFLOW RATE IN COMBINATION (PF + PFA 20.000): 74 CFM
FILTRATION EFFICIENCY: 91%

CERTIFICATIONS:
UL, cUL, CE, TÜV, NEMA, CSA, EAC

This item may take an additional 1-2 business days to ship.
