High Speed 120V AC Cooling Fan 172x150x51mm - Mechatronics UF15PC12 BTHR for Electronics Cooling & Ventilation

Product Description

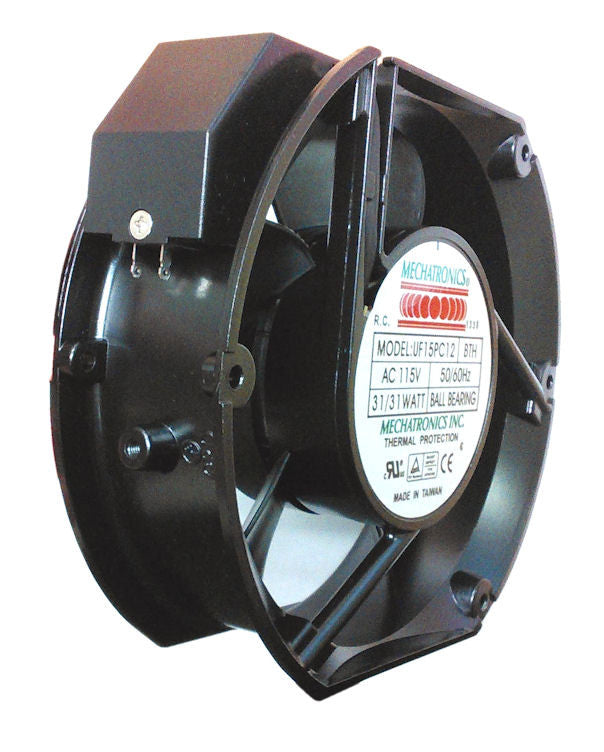

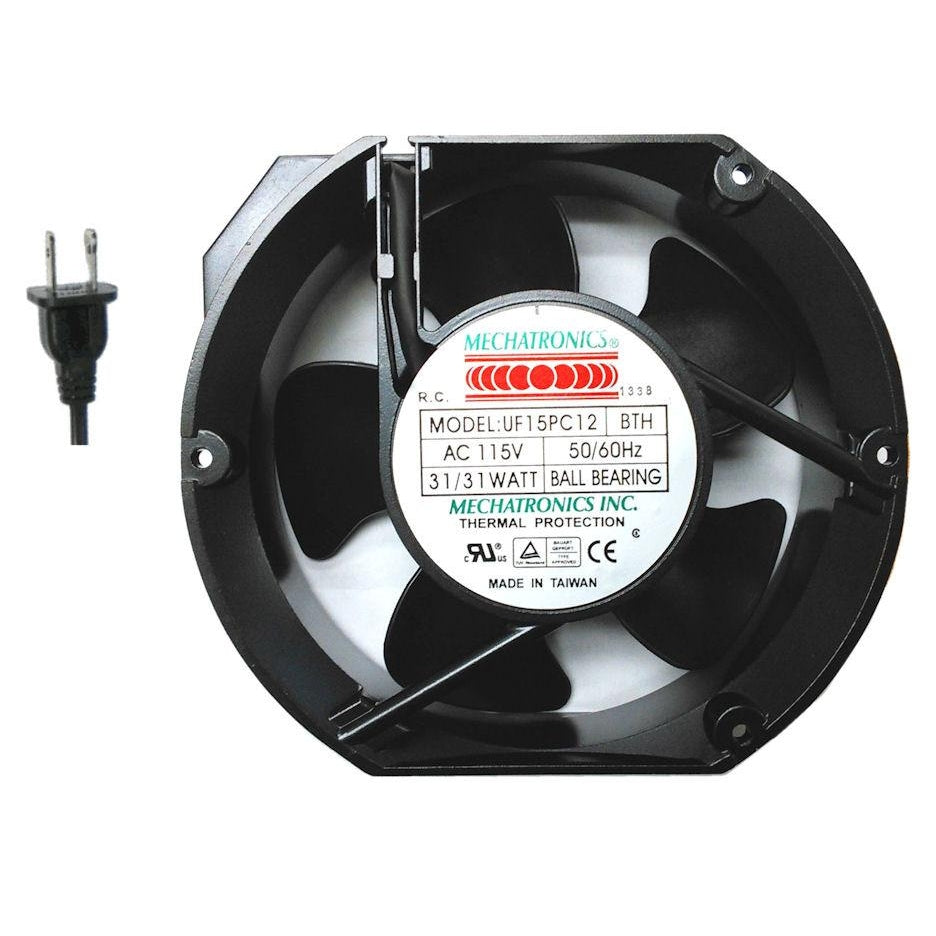

Mechatronics 172x150x51mm 120 Volt High Speed AC Fan UF15PC12-BTHR

840556101673

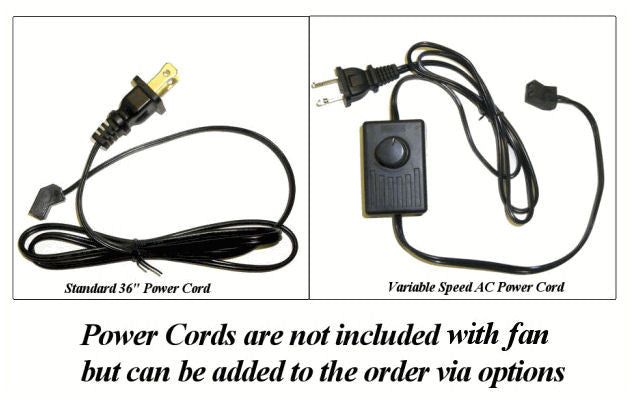

AC power cord is not included
This is a high volume industrial fan and puts out a tremendous amount of noise, not recommended for home applications.

Please pick type of power cord from our section
Specialty Fan Grill

FEATURES:
Ball bearing construction
Aluminum die-cast frame
UL 94V0 or metal impeller
Terminal connector
AC 1500V (50/60 Hz) one min.
Operating temperature range Ball Bearing -40°C ~ 70°C
Designed for continuous duty life
of 50,000 hours (ball bearing)
25,000 (sleeve bearing) at 25°C

PRODUCT SPECIFICATIONS:
Operating Voltage: 115 Volts
Frequency: 60 HZ
Input Power: 30 Watts
Rated Current: 25A
Locked Current: 0.41A
Fan Speed: 3400 RPM
Air Volume: 225 CFM
Sound Level: 58 dBA
Static Pressure (H2O): 20.0mm / .79"

CERTIFICATIONS:
CE Listed
UL Recognized
TUV Listed
RoHS Compliant

ACCESSORIES:
*
*This fan is not compatible with cords using variable speed controllers
Various Fan Screws

NOTES:
All listed accessories may not be for this exact model. Please for additional information.
