Dynatron S6 Intel 4677 3U CPU Cooler - High Performance Server Cooling Solution for Data Centers & Workstations

Product Description

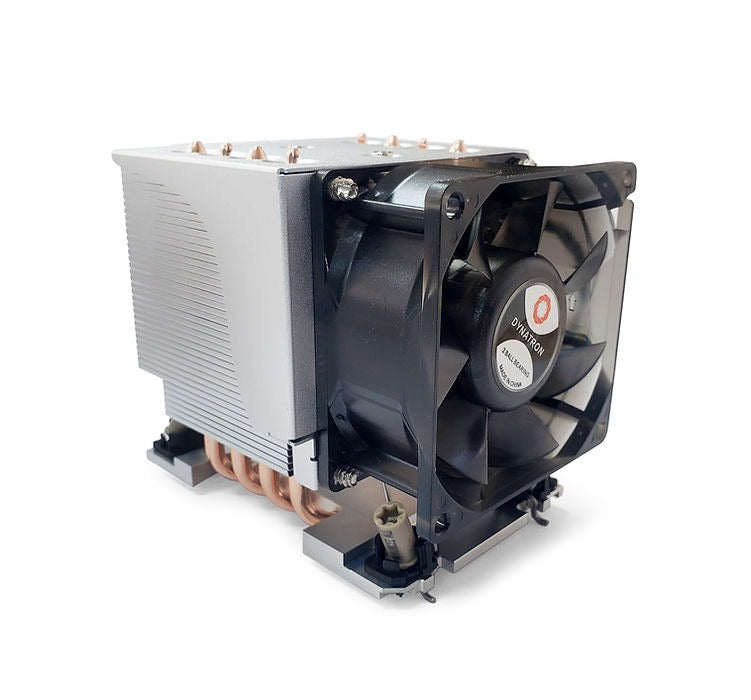

Dynatron S6 Intel 4677 3U CPU Cooler

840556074847

Recommend for Intel® Sapphire Rapids Processor, Socket FCLGA 4677 Aluminum Stacked Fins with Heat Pipes directly contact CPU, Active Cooler for 3U Server and up, Support 350 Watts CPU Power Heat Dissipation.

PRODUCT SPECIFICATIONS:

• CPU Support: Intel
• CPU Socket: FCLGA 4677
• Solution: 3U Server and Up
• Dimensions: 128 x 91 x 110 mm
• Lead Wire Pin Out: Pin#1-Black(-)

  Pin#2- Yellow(+)
  Pin#3- Green(Tachometer/ Signal Output)
  Pin#4- Blue (PWM)

• Mounting Method: Intel LGA 4677 standard Mounting Kits

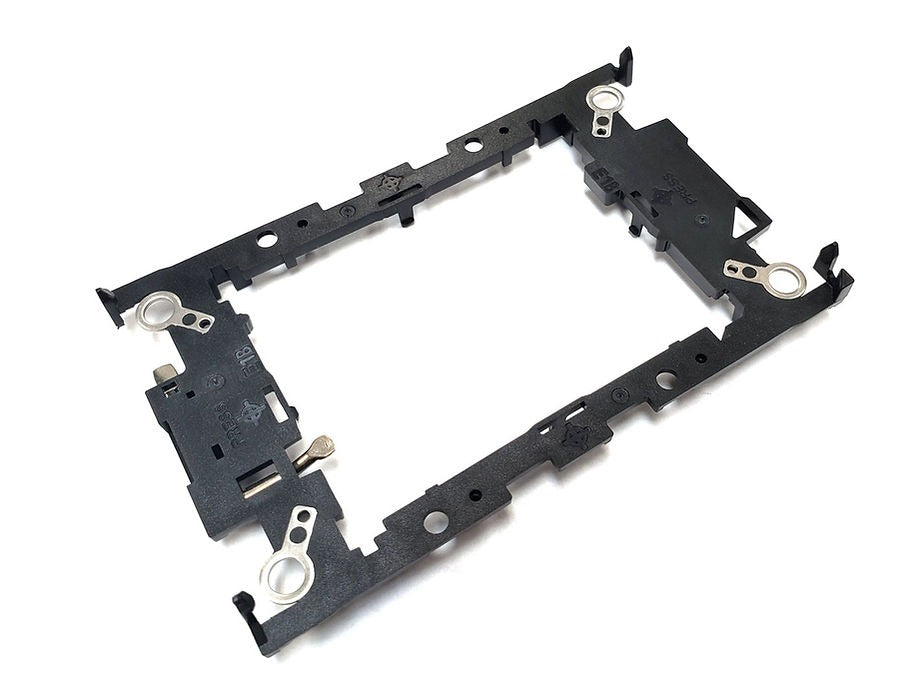

• Package Carrier: PHM Package Carrier is included
• Thermal Grease: SHIT-ETSU 7762 pre-printed
• Fan Dimension: 80 x 80 x 38 mm
• Speed: At Duty Cycle 0~20%: 1300± 200 RPM

  At Duty Cycle 50%: 2450± 10% RPM
  At Duty Cycle 100%: 4500±10% RPM

• Bearing Type: Double Ball
• Rated Voltage: 12 VDC
• Power: At Duty Cycle 0~20%: 1.20 W

  At Duty Cycle 50%: 2.64 W
  At Duty Cycle 100%: 9.00 W

• Air Flow: At Duty Cycle 0~20%: 22.23 CFM

  At Duty Cycle 50%: 41.90 CFM
  At Duty Cycle 100%: 76.95 CFM

• Noise Level: At Duty Cycle 0~20%: 23.95 dBA

  At Duty Cycle 50%: 37.71 dBA
  At Duty Cycle 100%: 50.91 dBA

• Air Pressure: At Duty Cycle 0~20%: 1.068 mm-H2O

  At Duty Cycle 50%: 3.794 mm-H2O
  At Duty Cycle 100%: 12.798 mm-H2O

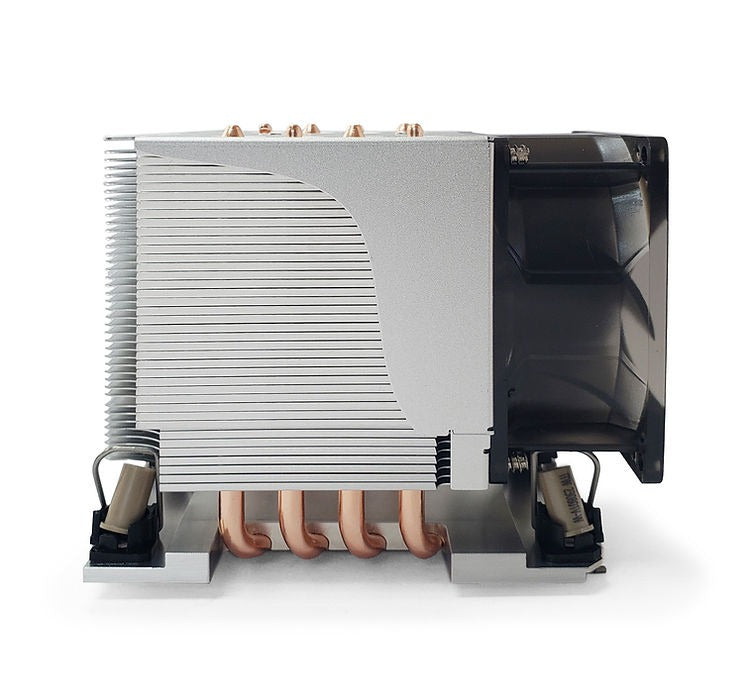

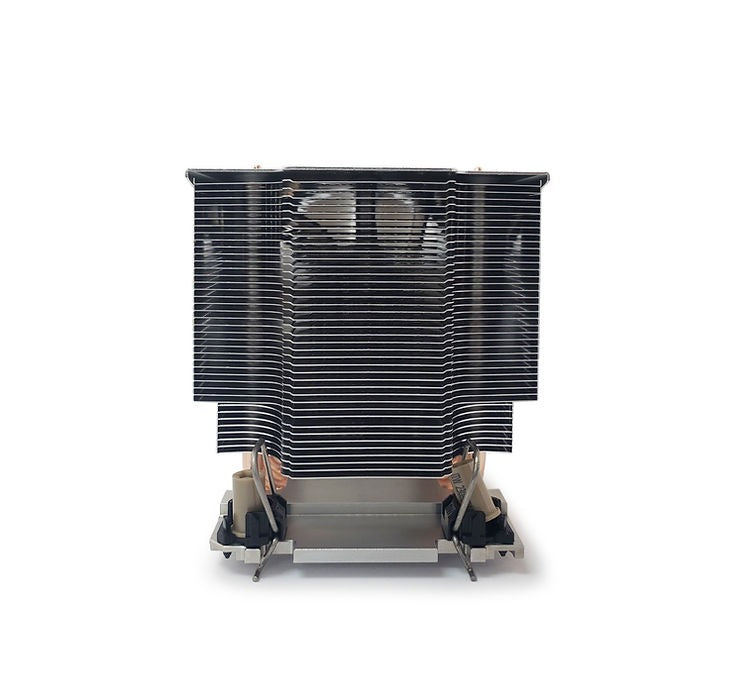

• Material: Aluminum Stacked-Fin with Heat Pipes directly contact CPU
• Weight: 659.3 g
