Spire Voyager SP606S7 CPU Cooler with 3-Pin Fan - High Performance Cooling for Gaming PCs & Workstations

Product Description

*DISCONTINUED*

Spire Voyager CPU Cooler w/Fan 3pin SP606S7

VOYAGER

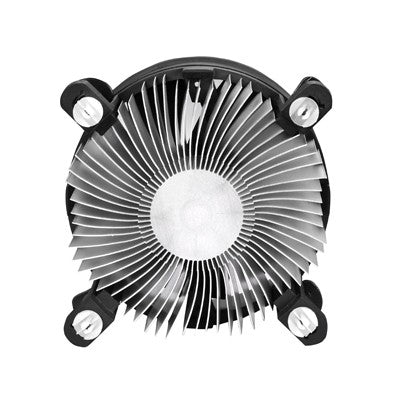

The Spire Voyager is a cost effective Intel system integration CPU cooler. The precise engineered omni-directional heat-sink provides good performance at minimal noise level (26dBA). The mounted 95x25mm 12VDC fan creates a gentle breeze controlled at 2500RPM +/- 10%. Universal application to all current Intel sockets such as 1150/1155/1156 & 775, which make the Voyager a smart solution for integrators that purely build computers based on Intel processors. The tool-free and Intel approved push pin installation make it easy and secure to install the Voyager. Tested up to TDP 95W with a performance rate of 0.376C/W.

SHORT SPECIFICATIONS

• Universal for all Intel sockets
• Aluminum Omni-directional heat-sink
• 95x25mm silent DC fan

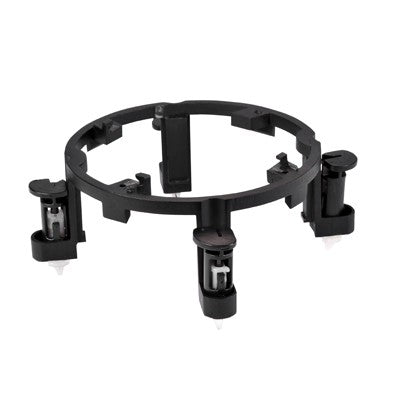

• Tool-free, approved Push-pin retention
• Retail packed for safe transport
• S420 Thermal compound included
• Supports 1150/1155/1156 & 775 sockets
• 2 years manufacturer warranty

Unit Dimension (cm) 9.3 x 9.3 x 3
Accessories Voyager
Air Flow (CFM) 48.53
Application
Intel Core i3
Intel Core i5
Intel Core i7
Intel 115* all models
Intel LGA775 (Prescott)
Bearing Type Sleeve Bearing
Certification CE/ROHS
Connectors 3 PIN Molex 2510
Fan Size (cm) 9,5 x 9,5 x 2,5
Fan Type 12VDC
Fits Socket Types Intel
Intel 775,115x
Life Expectancy (HRS) 30000
Mainboard Support N/A
Material AL
Noise Level (dBA) 19 ~ 26
Number Of Fans (Pre-Installed) 1
Operating Temperature (°C) From -10
Operating Temperature (°C) To 70
Options Heatpipes
Packaging Type brown box
Rated Current (A) 0.22
Rated Power (W) 2.64
Rated Speed (RPM) +/- 10% 600 ~ 2500
Static Pressure mmH2O 2.32
Storage Temperature (°C) From -40
Storage Temperature (°C) To 70
Thermal Design Power (W) 95
Thermal Interface Material Stars-350
Thermal Resistance 0.376
Voltage DC (INPUT) 12 V

EAN 6943051206417
