120x38mm Mechatronics 115V Low Speed IP55 Rated AC Cooling Fan UF12A12 BTLNR - Perfect for Industrial Equipment, HVAC Systems, and Electronic Enclosures

Product Description

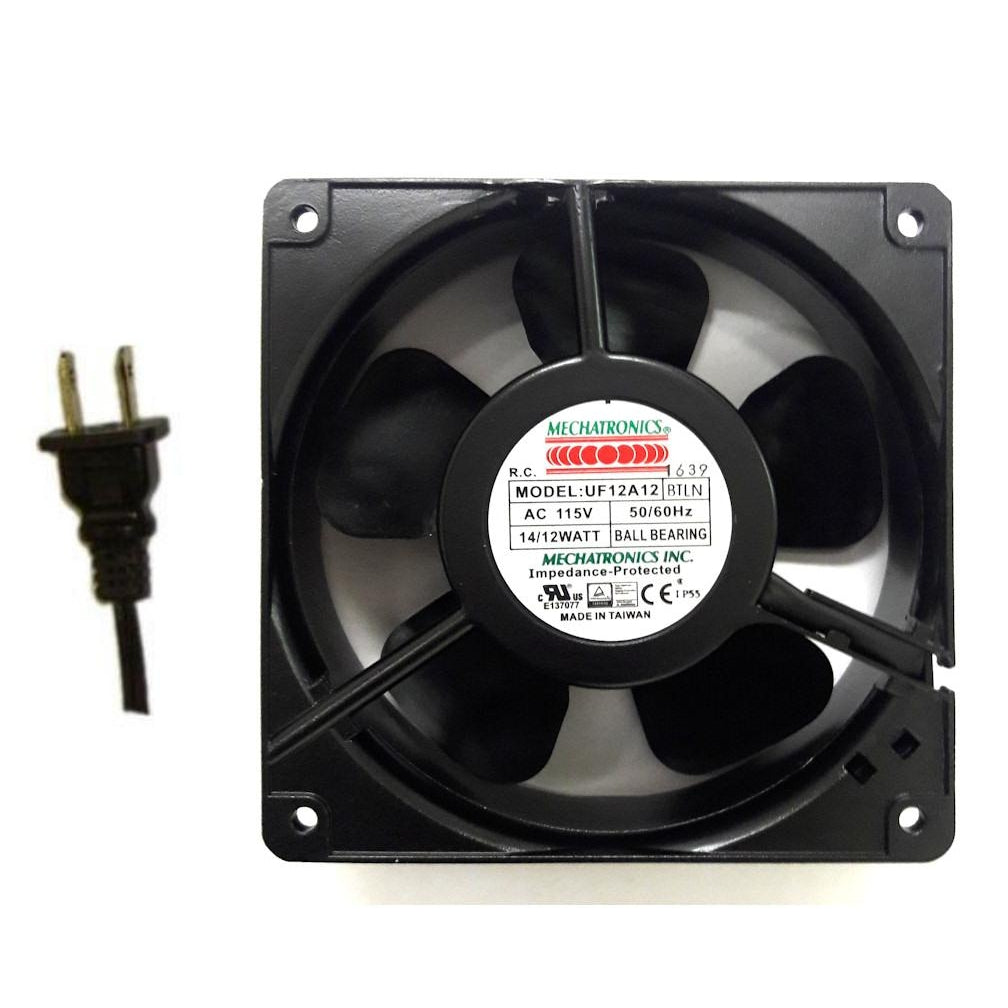

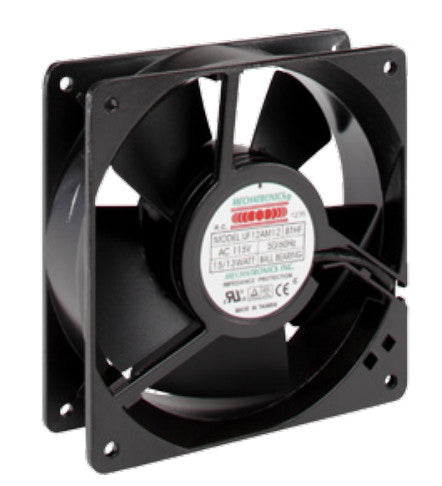

Mechatronics 120x120x38mm 115 Volts IP55 Rated AC Fan UF12A12-BTLNR

840556003700

IP 55 ENCLOSURE CHARACTERISTICS:

• Protection from dirt, dust, oil, and other non-corrosive material
• Complete protection from contact with enclosed equipment protection from water, up to water projected by a nozzle against enclosure from any direction

FEATURES:
Operating Voltage: 115 Volts
Construction: Aluminum die cast frame; UL94V-0 PBT impeller
Bearing: Motor quality ball bearings
Motor: Shaded pole
Air flow: Exhaust over struts
Connection: Terminal Type/ requires power cord
Protection: Impedance

PRODUCTION SPECIFICATIONS:

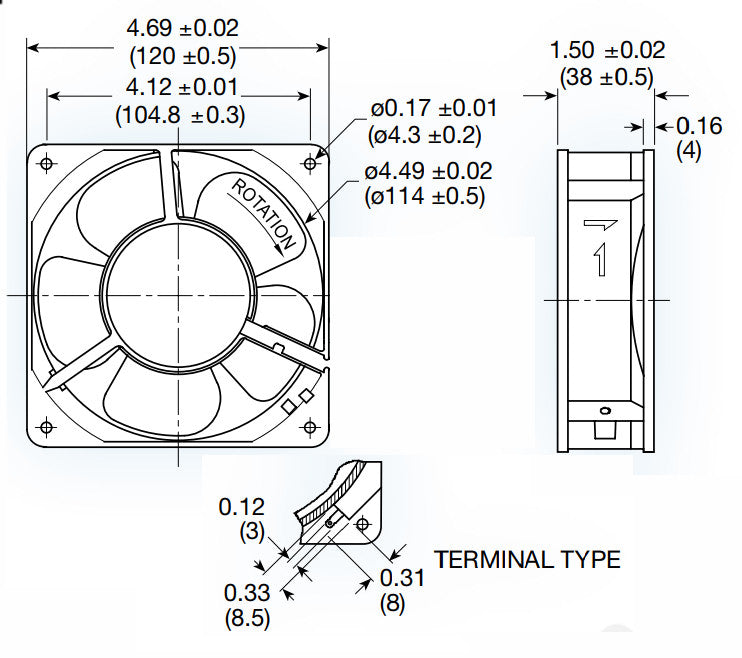

Fan Size: 120x120x38 mm
Fan Speed: 2300 RPM
Air Flow: 81 CFM
Sound Level: 38 DBA
Rated Current: 0.15A
Static Pressure (H2O): 4.0mm / .16"

CERTIFICATIONS:
UL Listed
CE Marked

ACCESSORIES:Various Fan Screws

NOTES:
The actual fan may vary slightly from picture

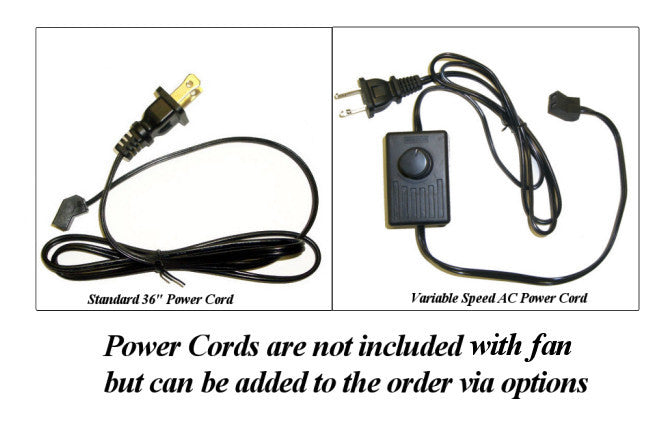

AC power cord is not included.
Please pick a type of power cord from our section.
All listed accessories may not be for this exact model. Please for additional information.
